Operation CHARM: Car repair manuals for everyone.

Clearance and Design Specifications

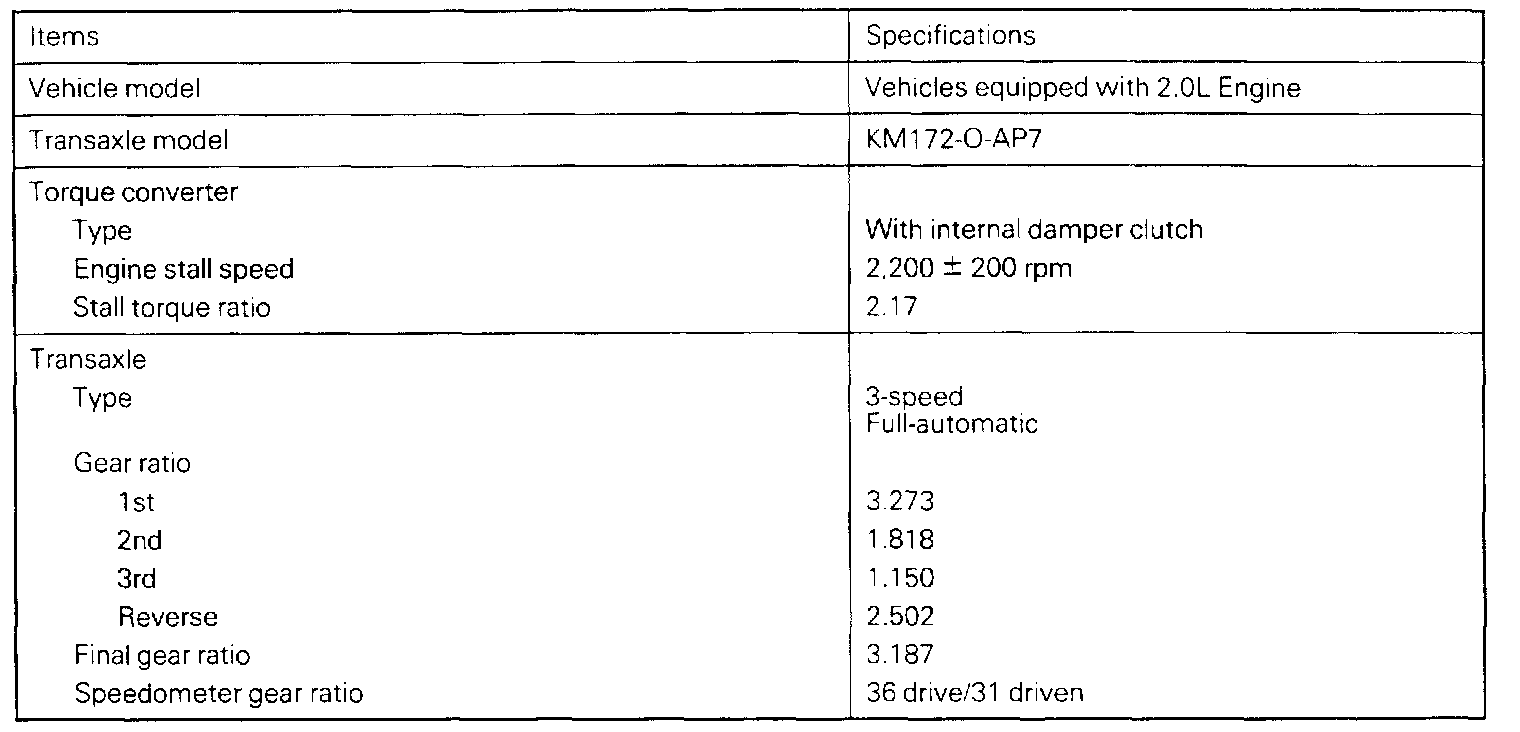

General Specifications:

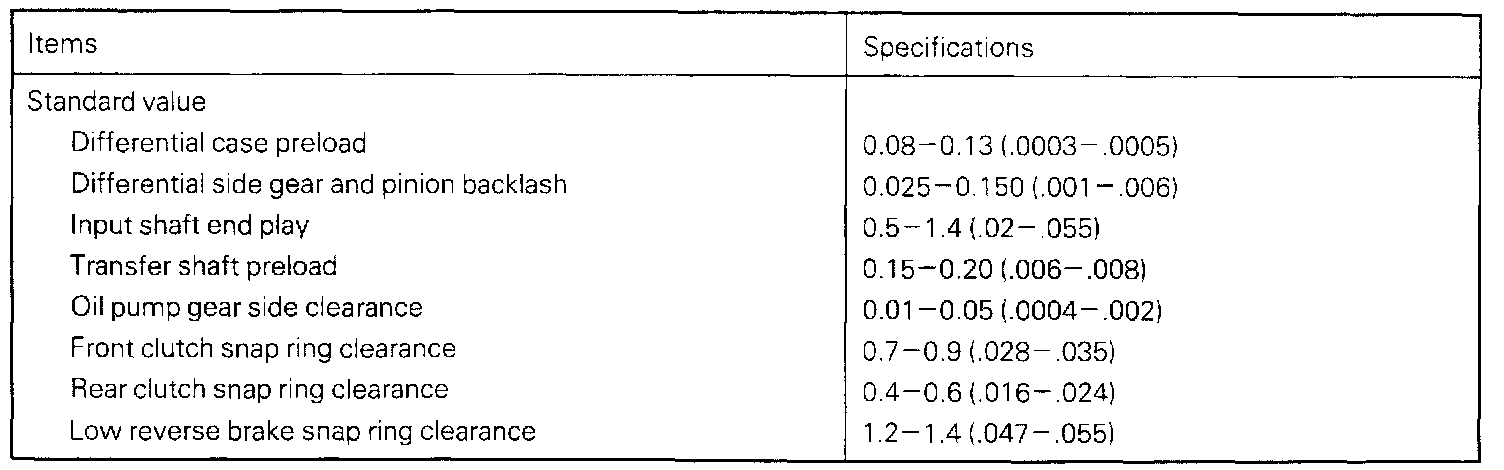

Service Specifications:

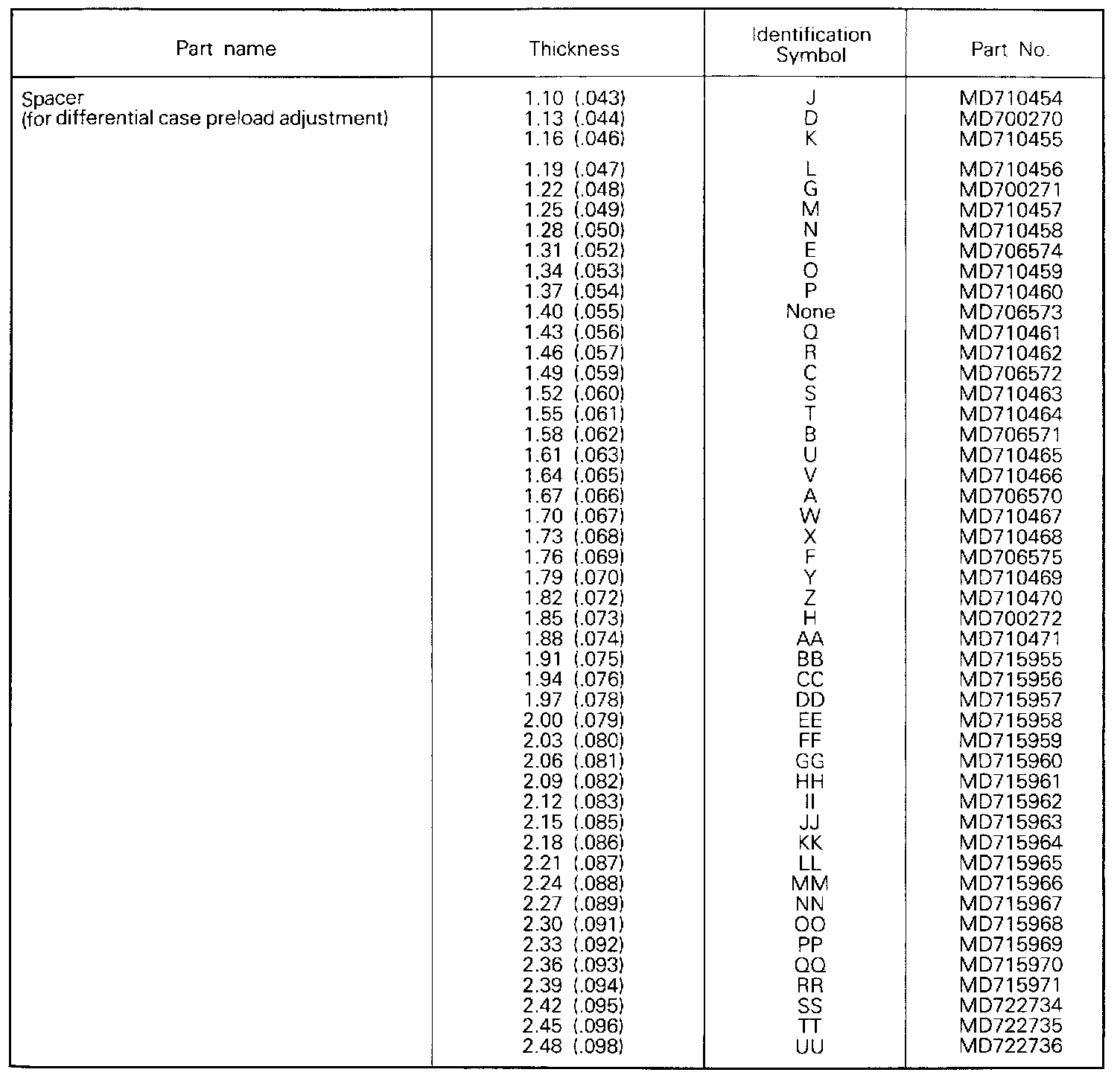

Adjustment Snap Rings And Spacers Chart:

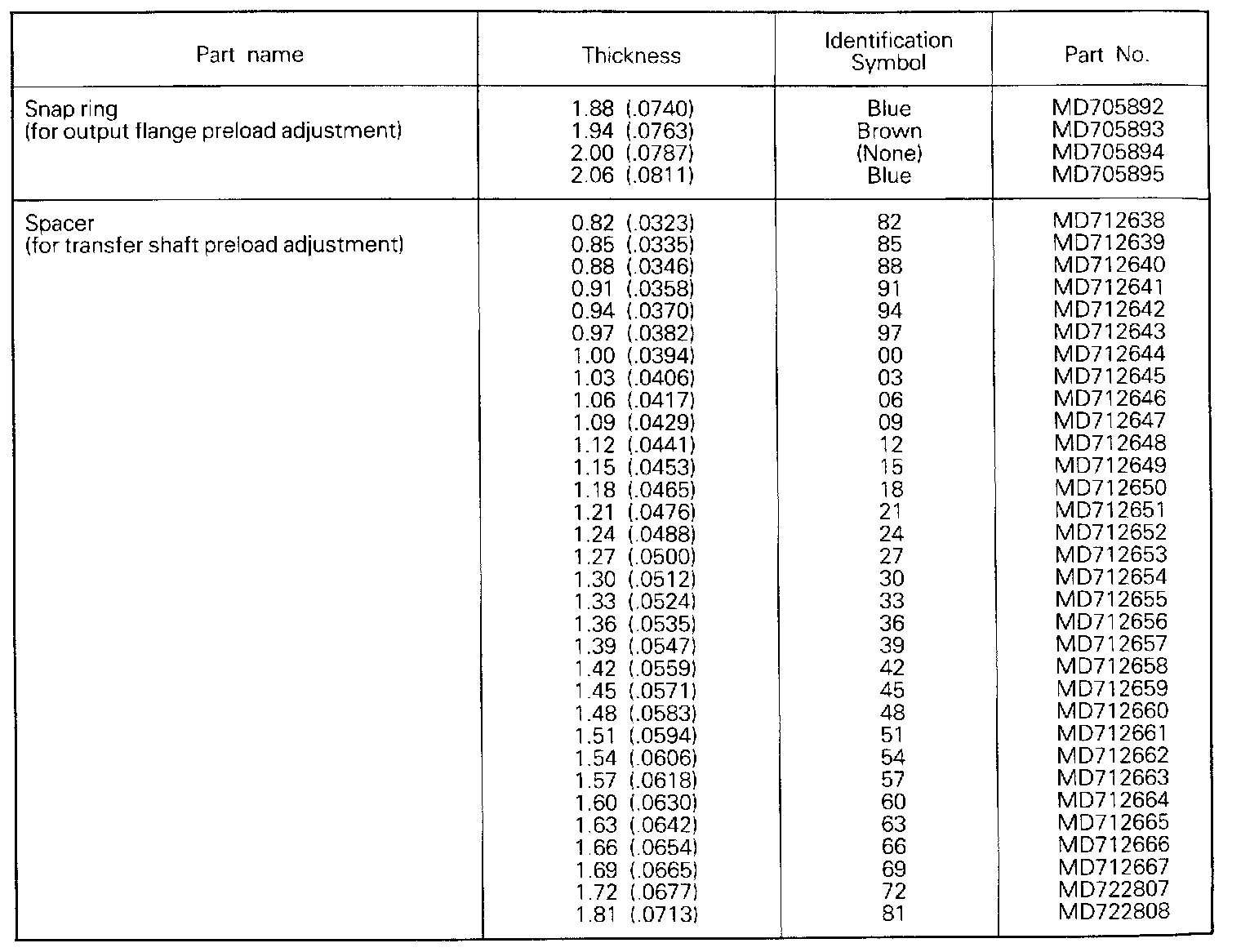

Continued:

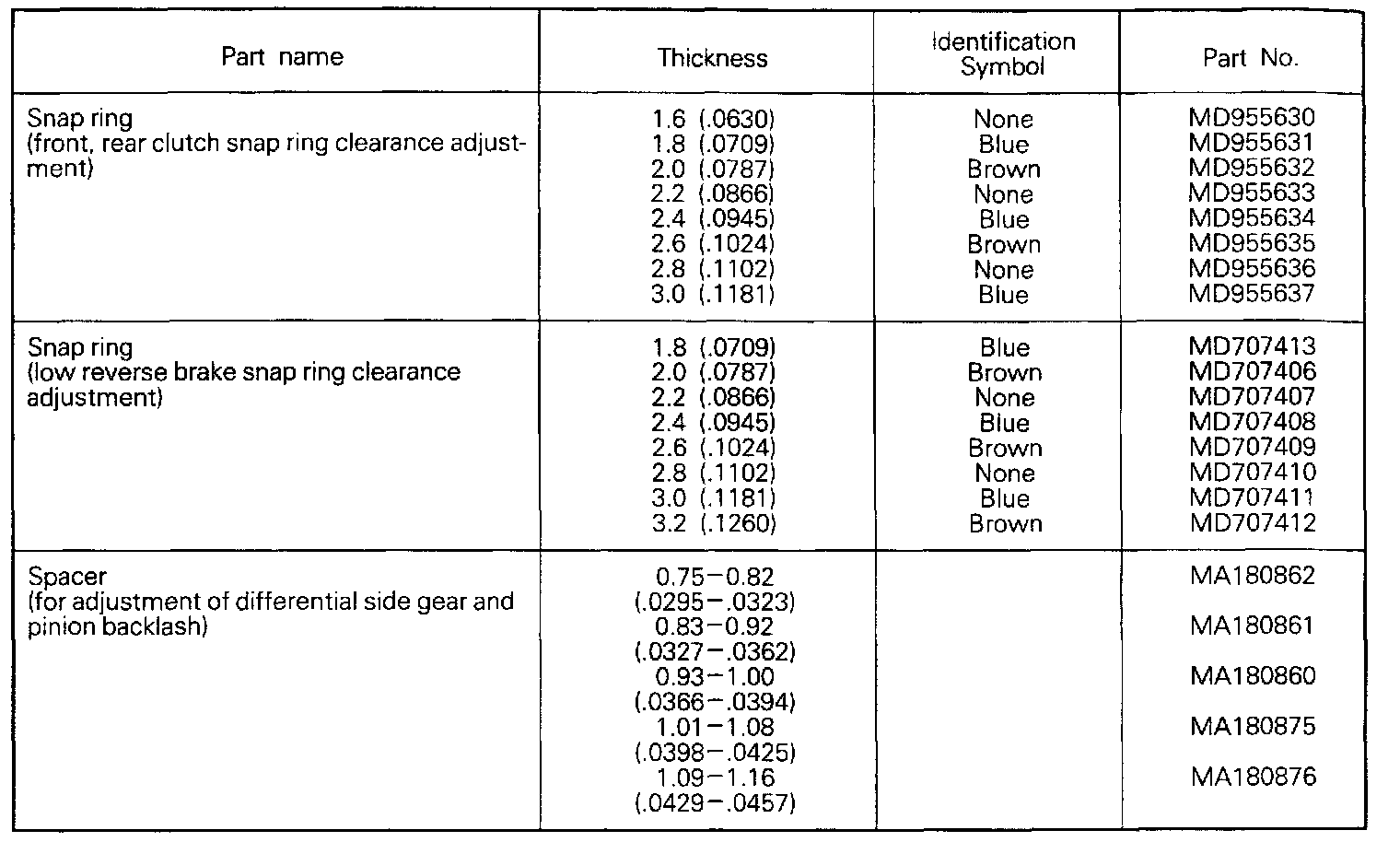

Continued:

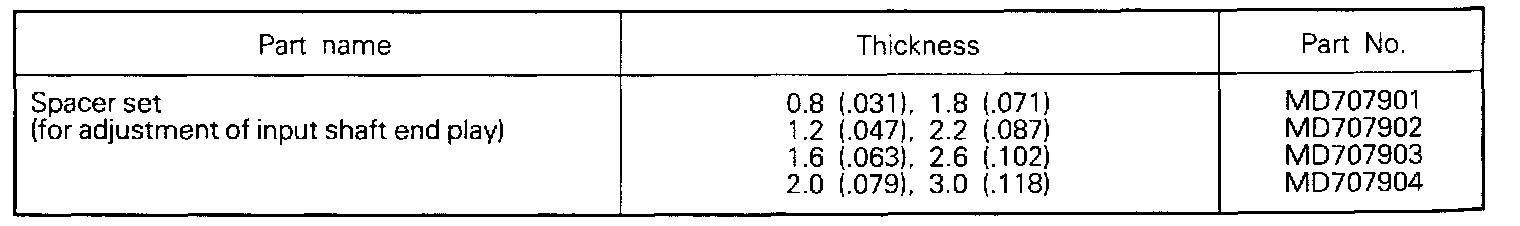

Spacer Set:

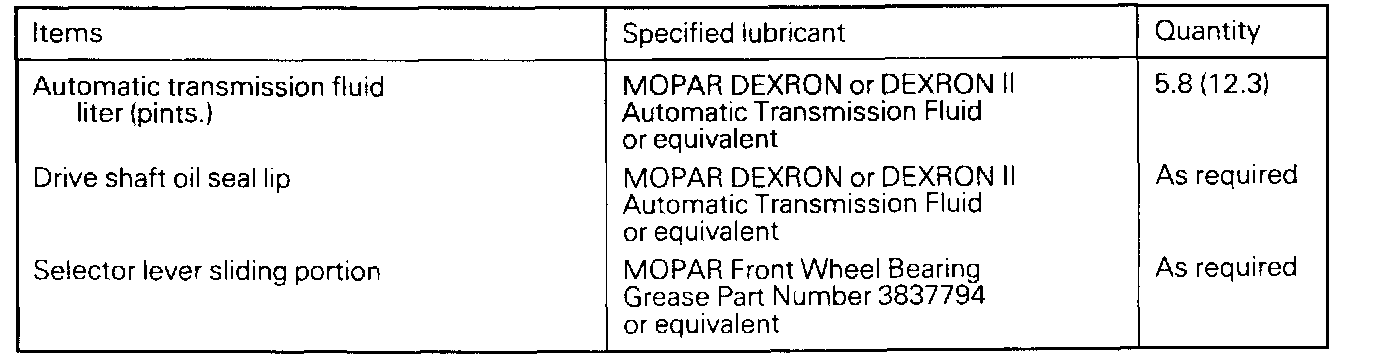

Lubricants:
