Clearance and Design Specifications

General Specifications:





Service Specifications:

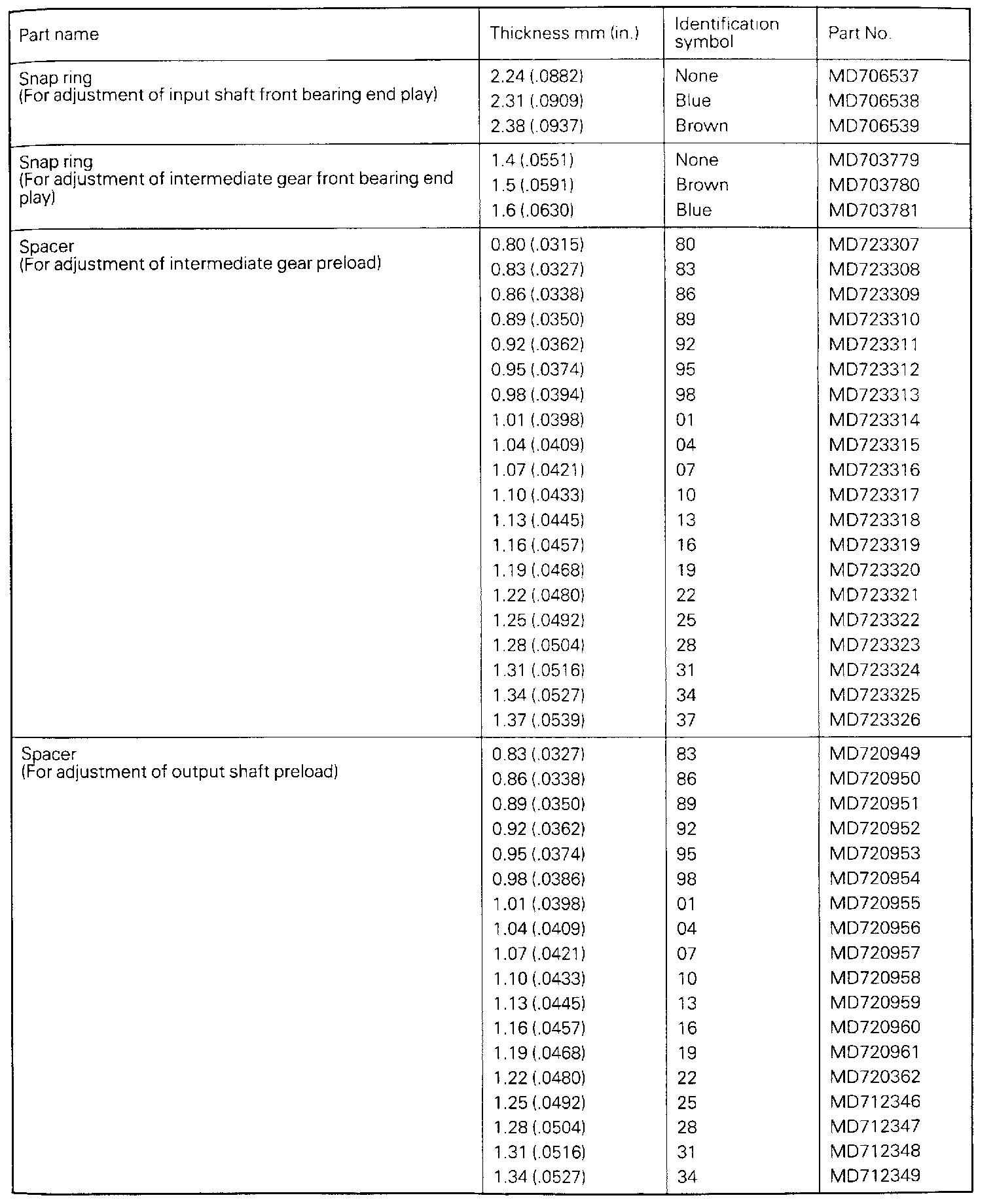

Adjustment Snap Rings And Spacers:

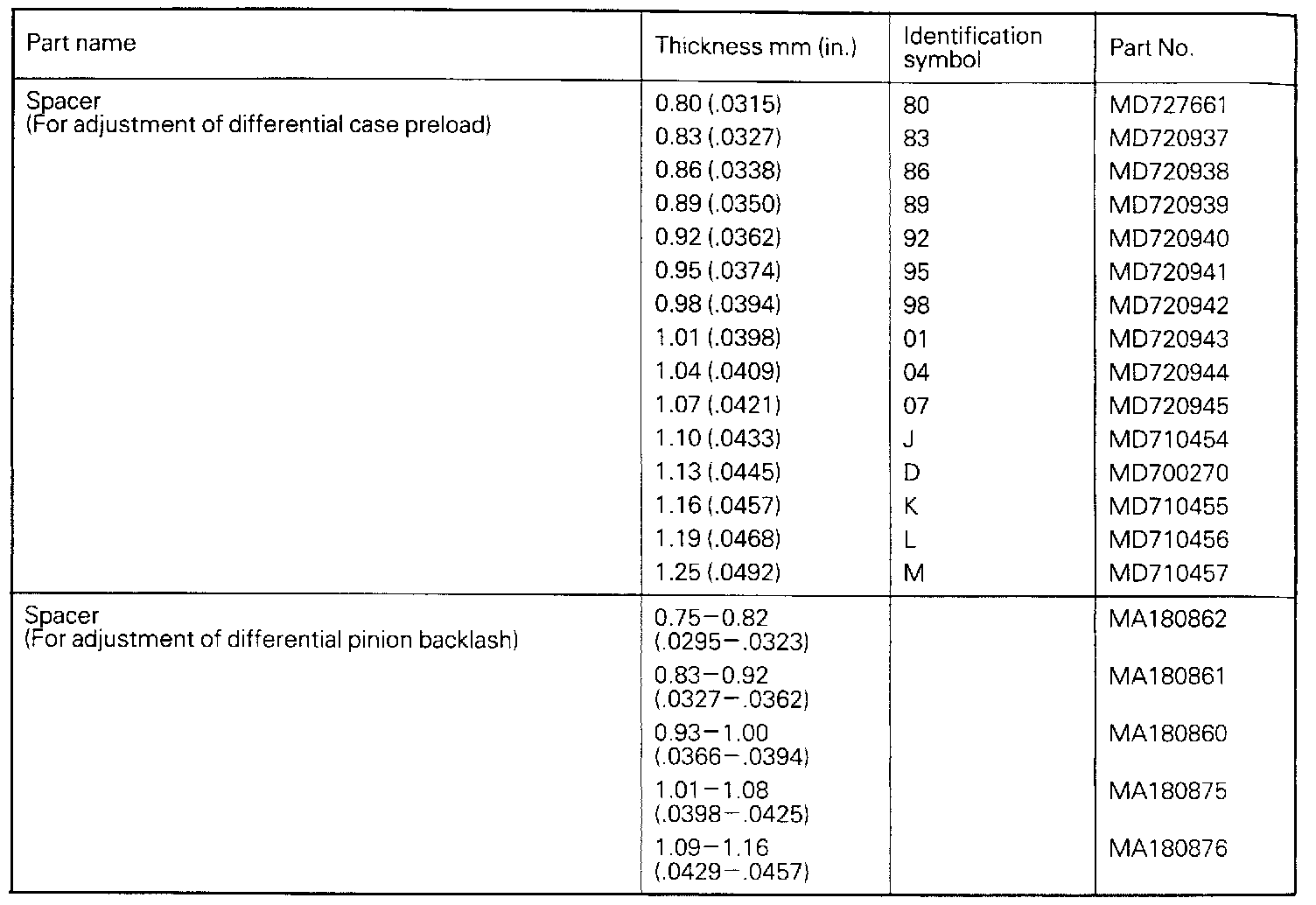

Continued:





Lubricants:
