Power and Ground Distribution: Locations

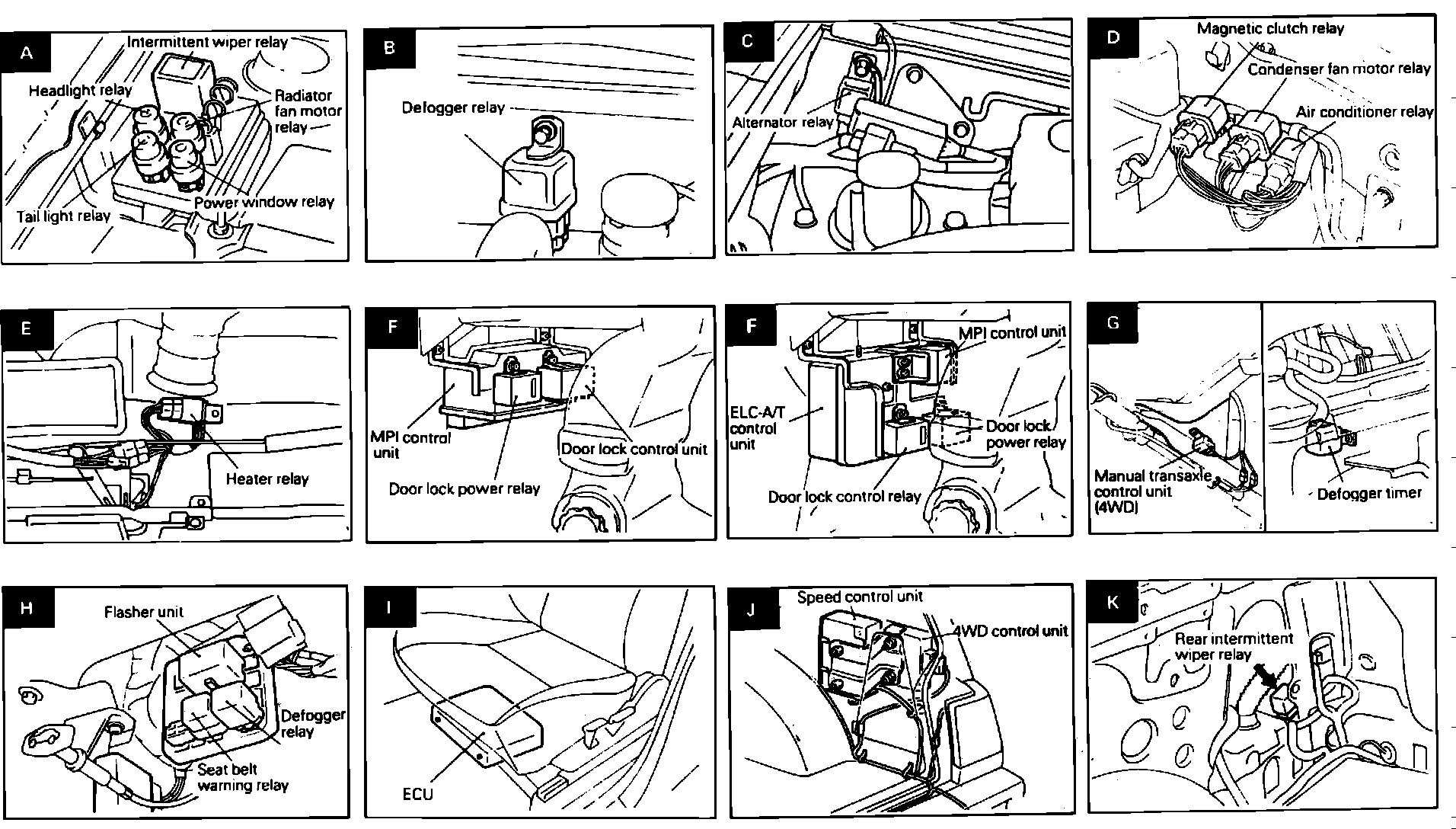

Control Unit & Relay Locations (Part 1 Of 2).:

Control Unit & Relay Locations (Part 1 Of 2).:

Under RH Side Of I/P

Applicable to: 1988 Colt Vista
