B Connectors

B Connectors:

B Connectors:

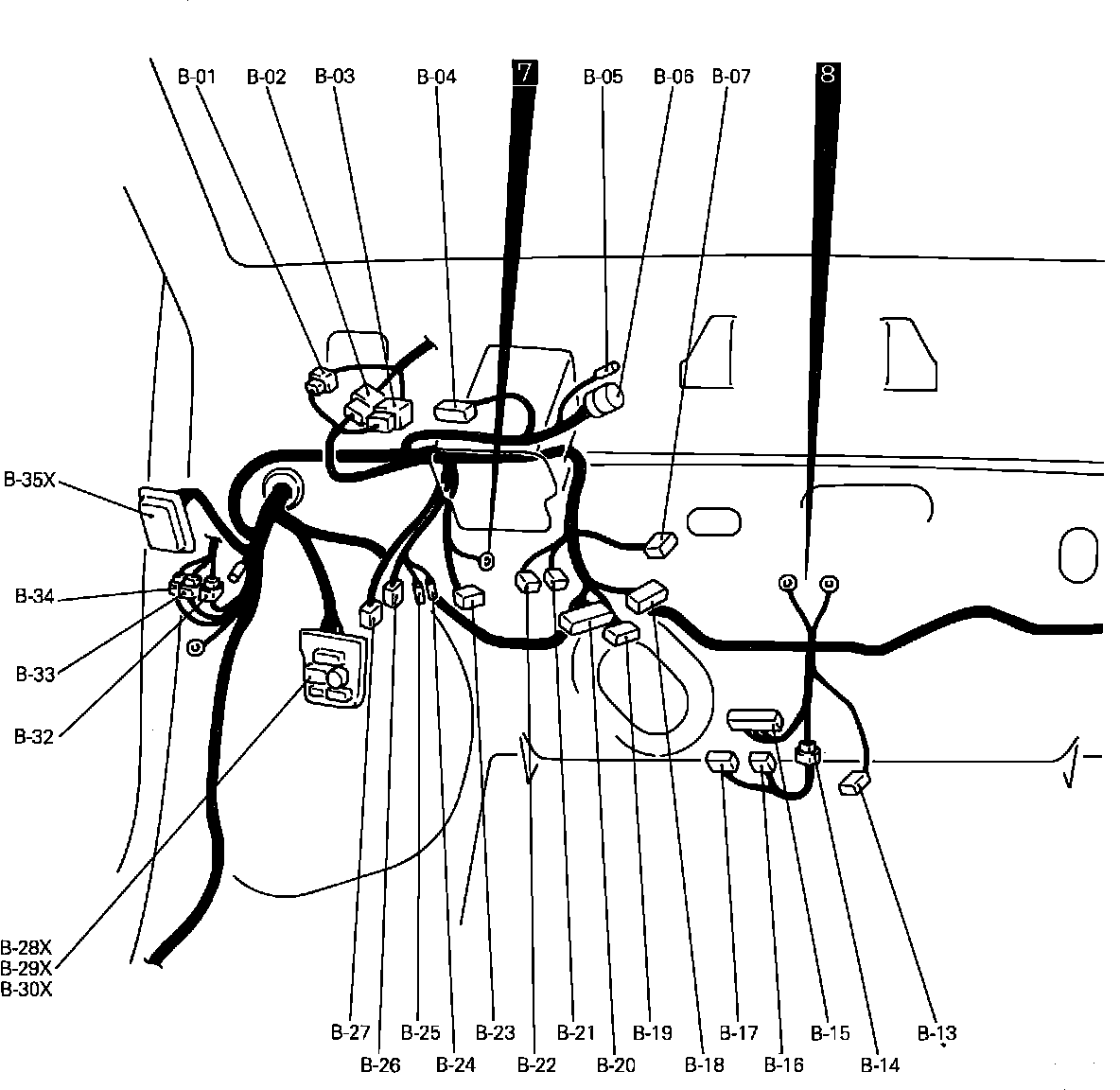

B01: Body Harness (Front) And Instrument Panel Harness Connection

B02: Body Harness (Front) And Instrument Panel Harness Connection

B03: Body Harness (Front) And Instrument Panel Harness Connection

B04: Combination Meter

B05: Combination Meter

B06: Combination Meter

B07: Manual Transaxle Control Unit

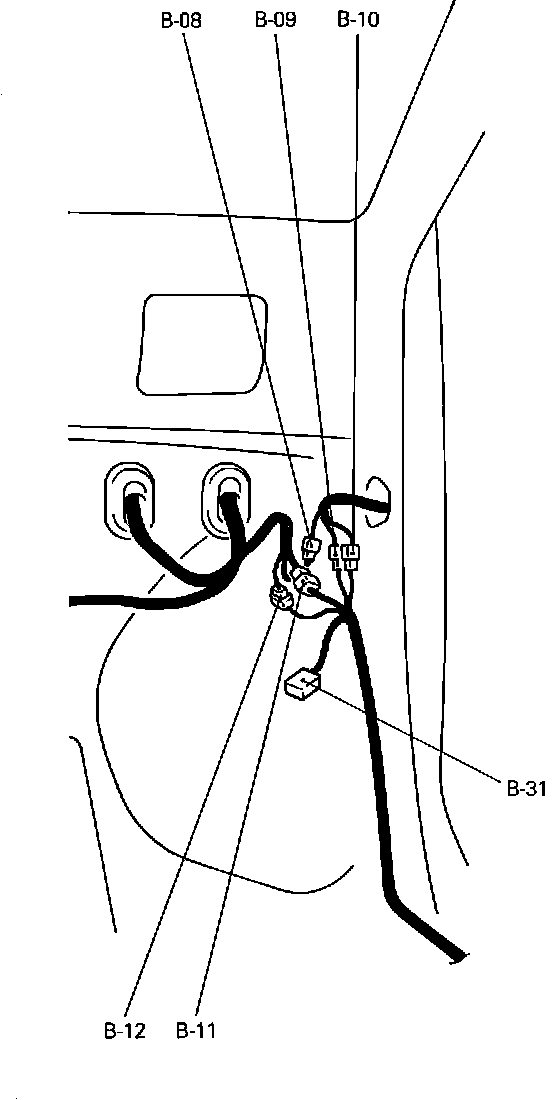

B08: Body Harness (Front) And Door Harness (Front R.H.) Connection

B09: Body Harness (Rear) And Door Harness (Front R.H.) Connection

B10: Body Harness (Rear) And Door Harness (Front R.H.) Connection

B11: Body Harness (Front) And Body Harness (Rear) Connection

B12: Body Harness (Front) And Body Harness (Rear) Connection

B13: MPI Control Relay

B14: Body Harness (Front) and Door Lock Harness Connection

B15: Automatic Transaxle Control Unit

B16: Door Lock Power Relay

B17: Door Lock Control Relay

B18: Column Switch

B19: Column Switch

B20: Column Switch

B21: Key Remain Switch

B22: Ignition Switch

B23: Defogger Timer

B24: Clutch Switch

B25: Clutch Switch

B26: Stop Light Switch

B27: Stop Light Switch

B28X: Relay Box

B29X: Relay Box

B30X: Relay Box

B31: ASC Inspection Connection

B32: Body Harness (Front) And Door Harness (Front) Connection

B33: Body Harness (Front) And Door Harness (Front) Connection

B34: Body Harness (Front) And Door Harness (Front) Connection

B35: Fuse Block
