Home >> Plymouth >> 1988 >> Colt Vista 4WD L4-1997cc 2.0L SOHC >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Exterior Lamps

Exterior Lamps

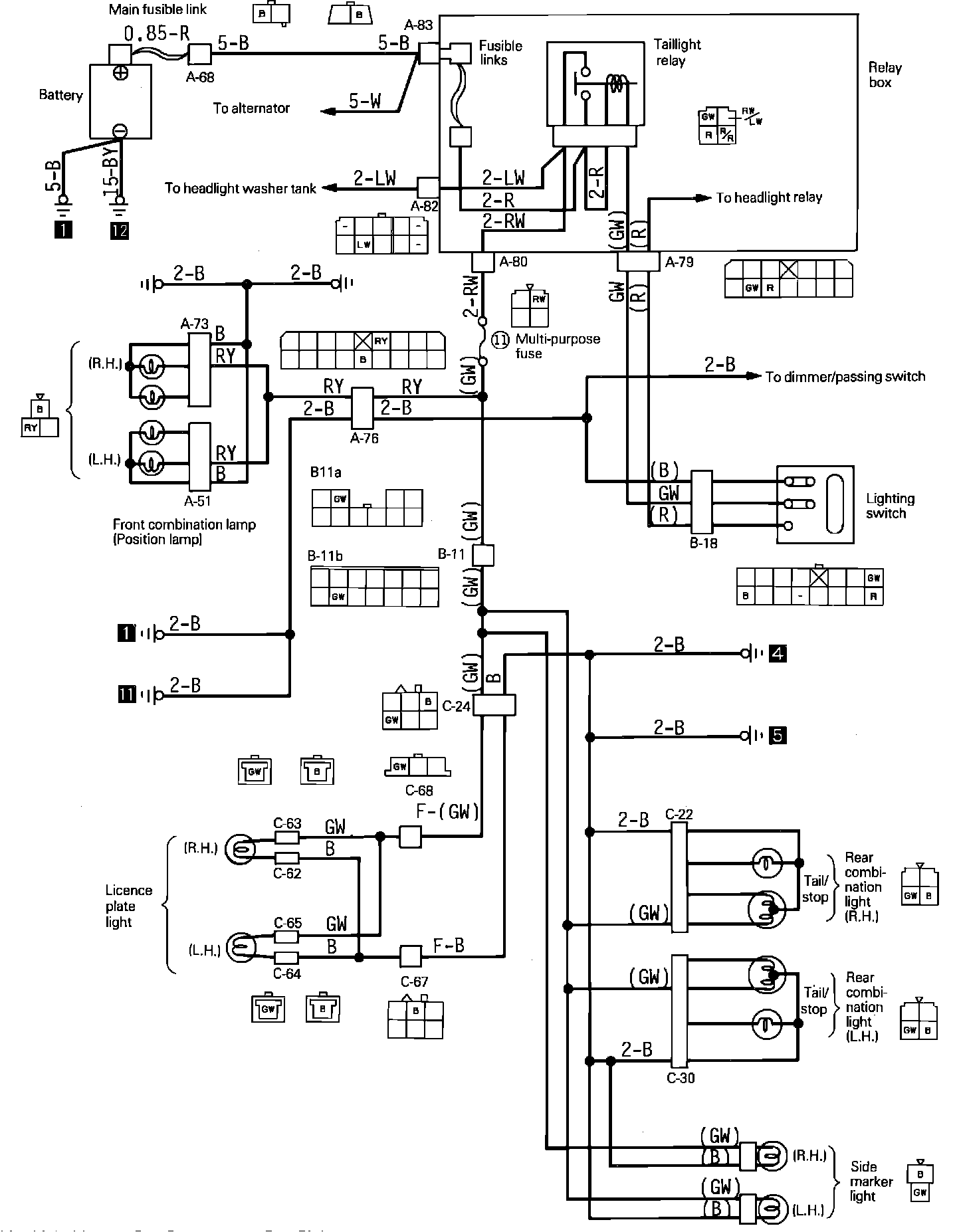

Tail, Position, & License Plate Light:
