Brake Lamp

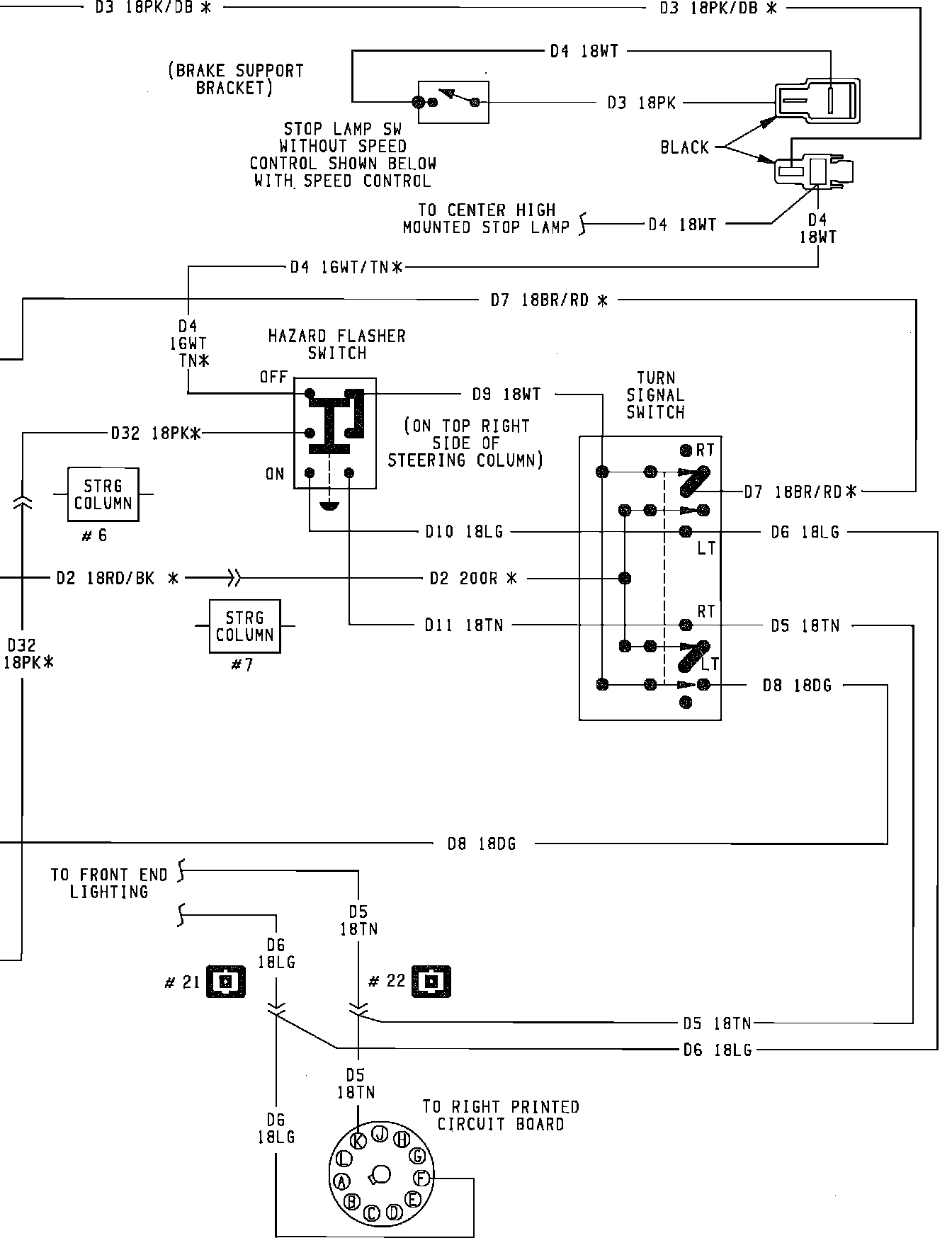

Hazard, Stop & Turn Flasher System Wiring Circuit:

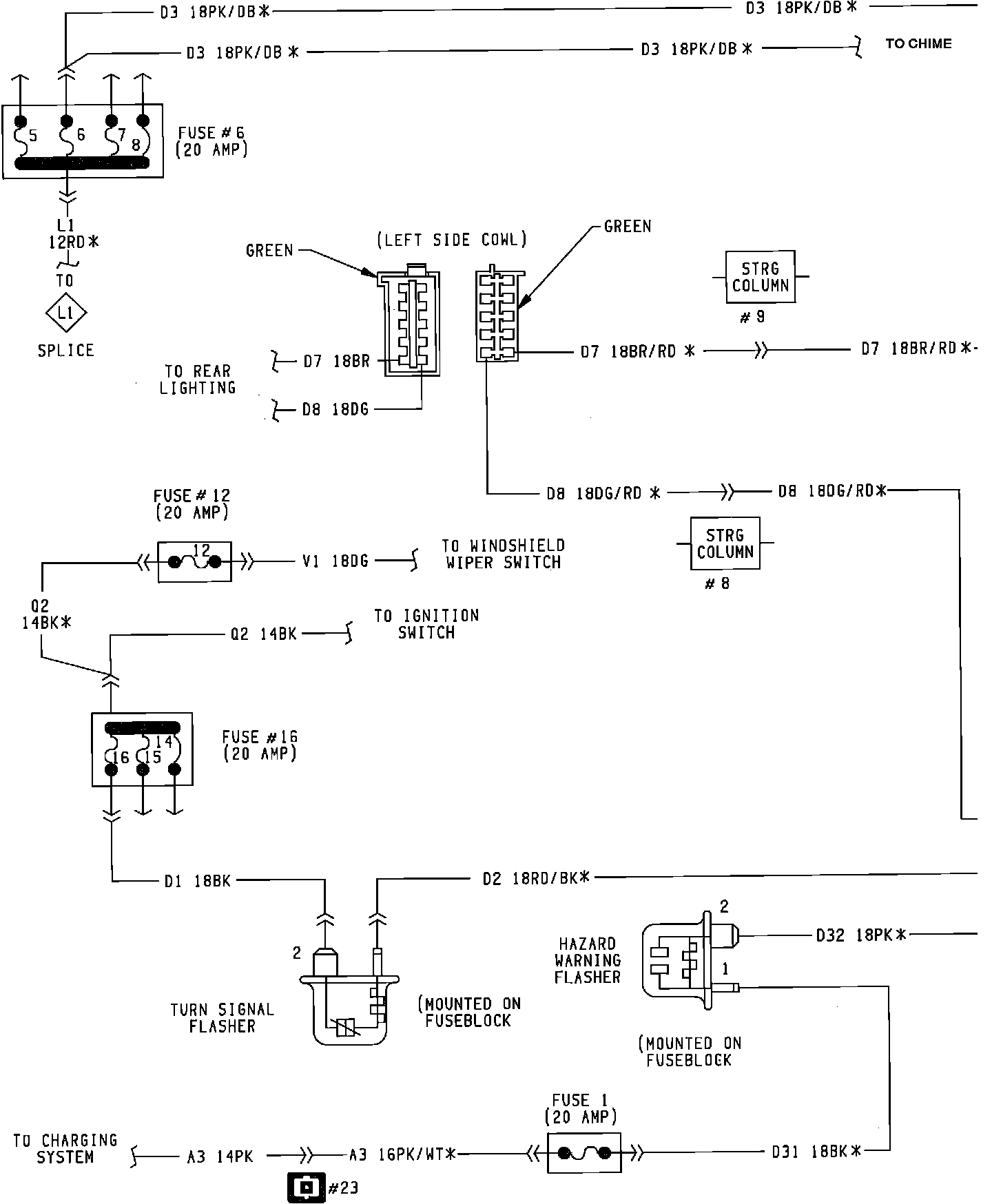

Hazard, Stop & Turn Flasher System Wiring Circuit:
