Rear Lighting

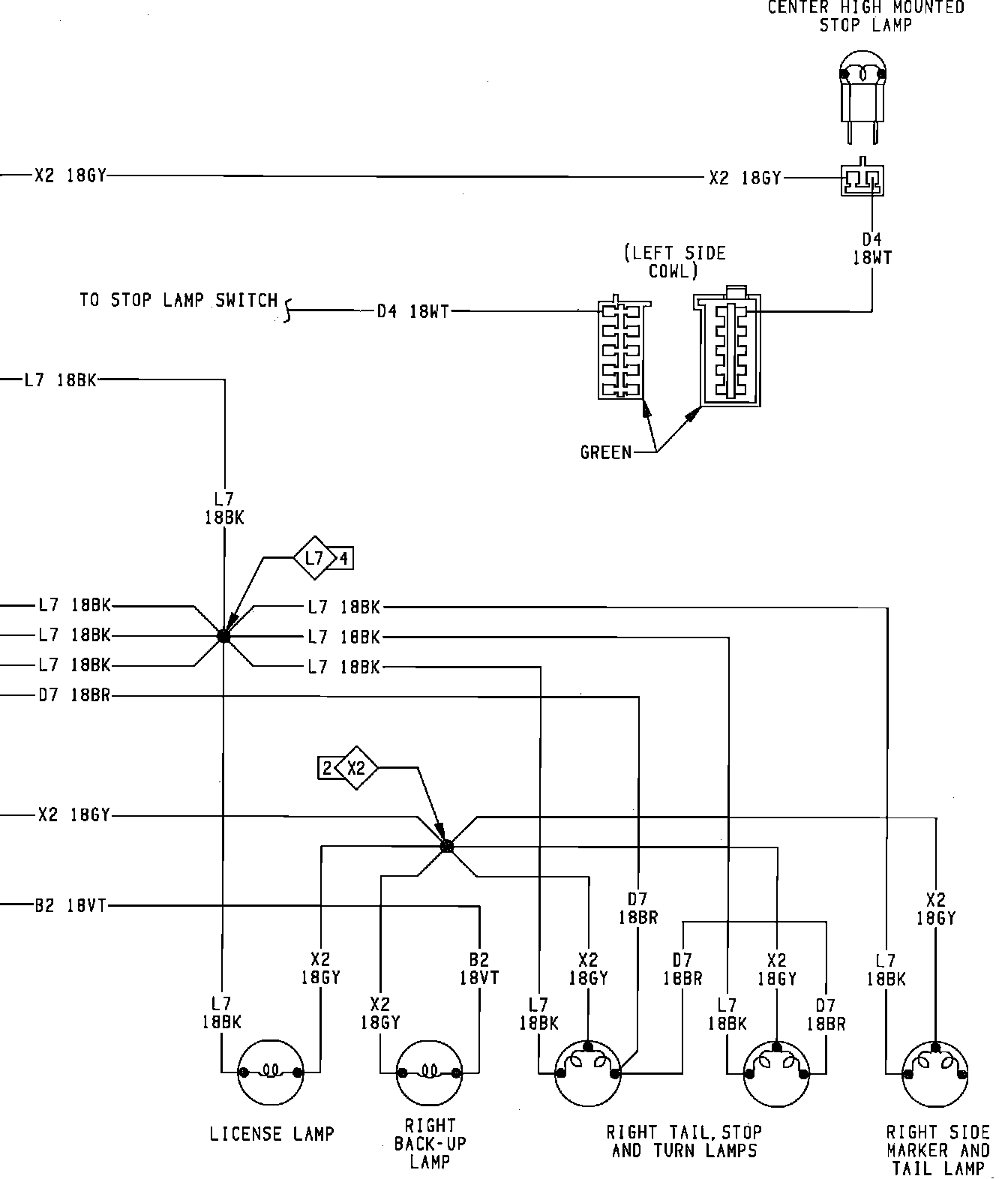

Rear Lighting Wiring Circuit. Diplomat & Gran Fury:

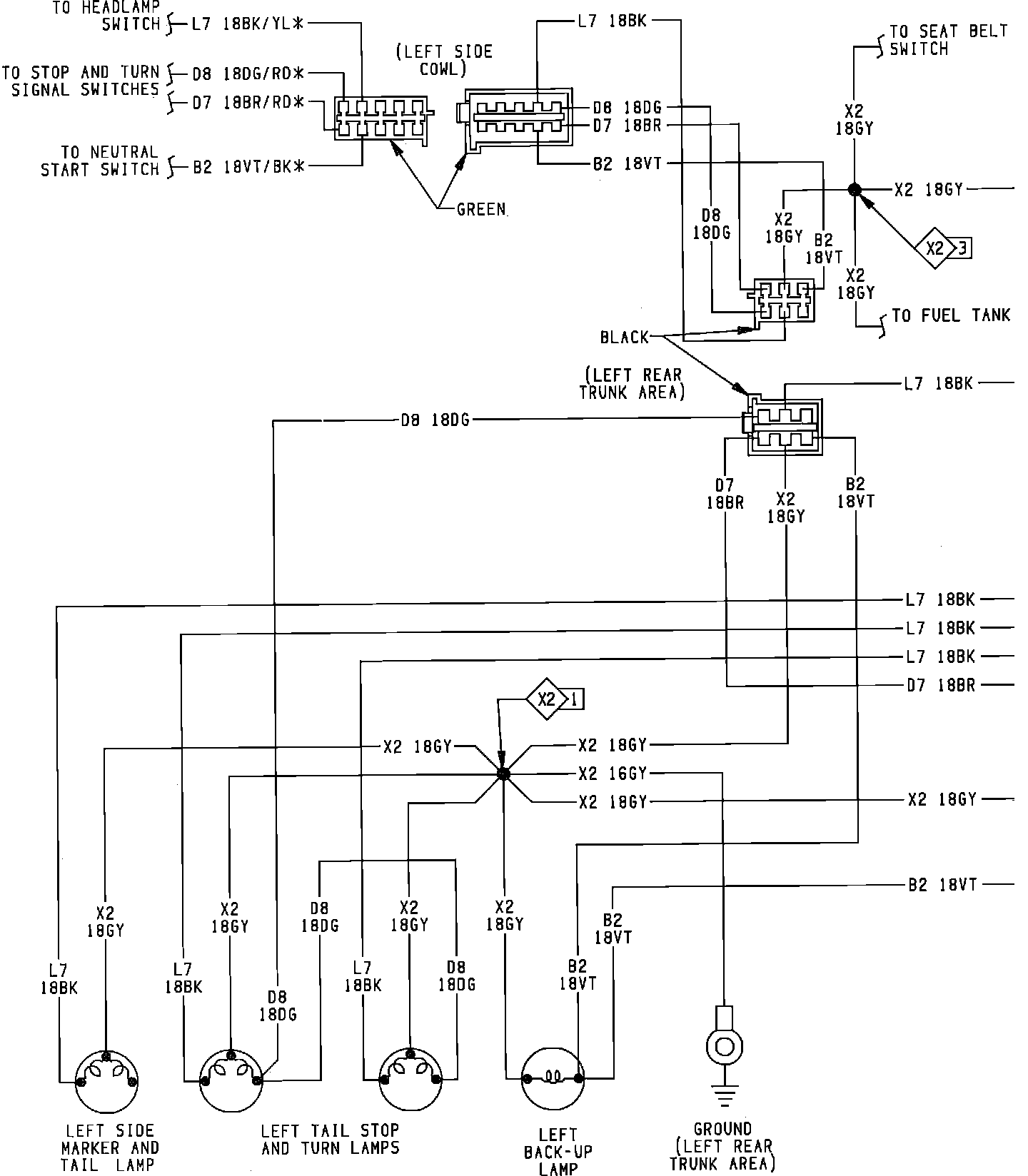

Rear Lighting Wiring Circuit. Diplomat & Gran Fury:
