Fuse Block
Fuse Block

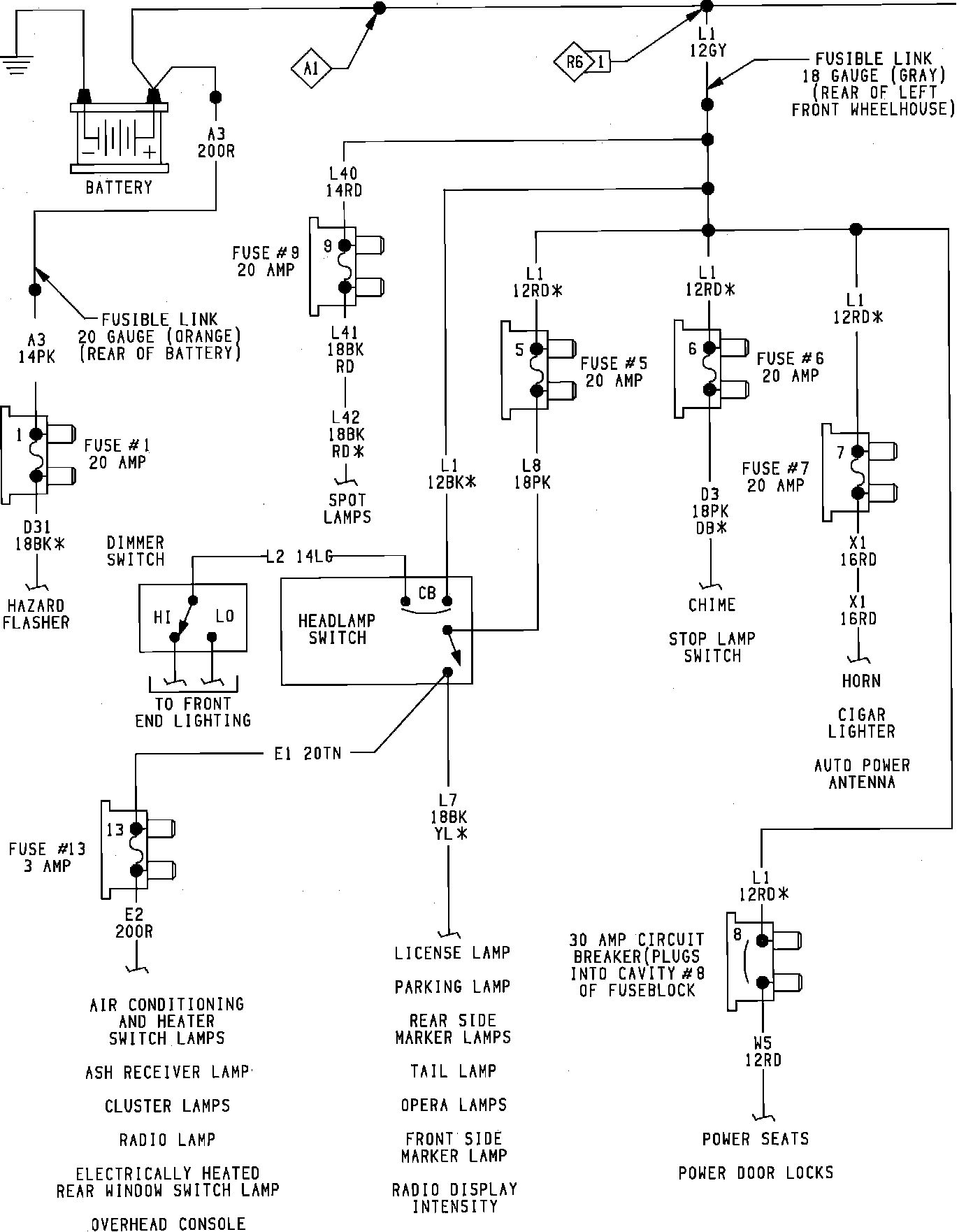

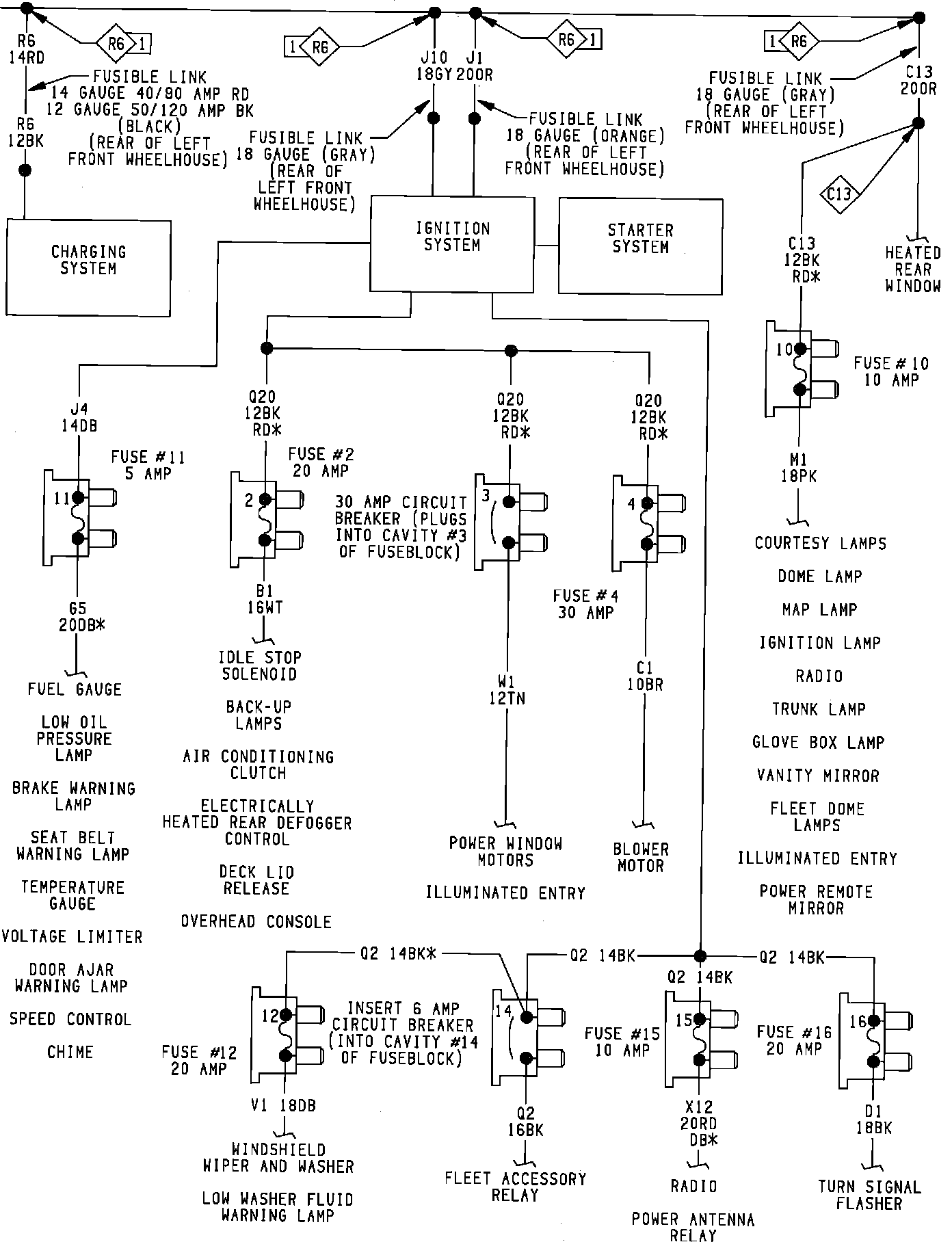

Fuse Panel - Under Instrument Panel, Left Of Steering Column:

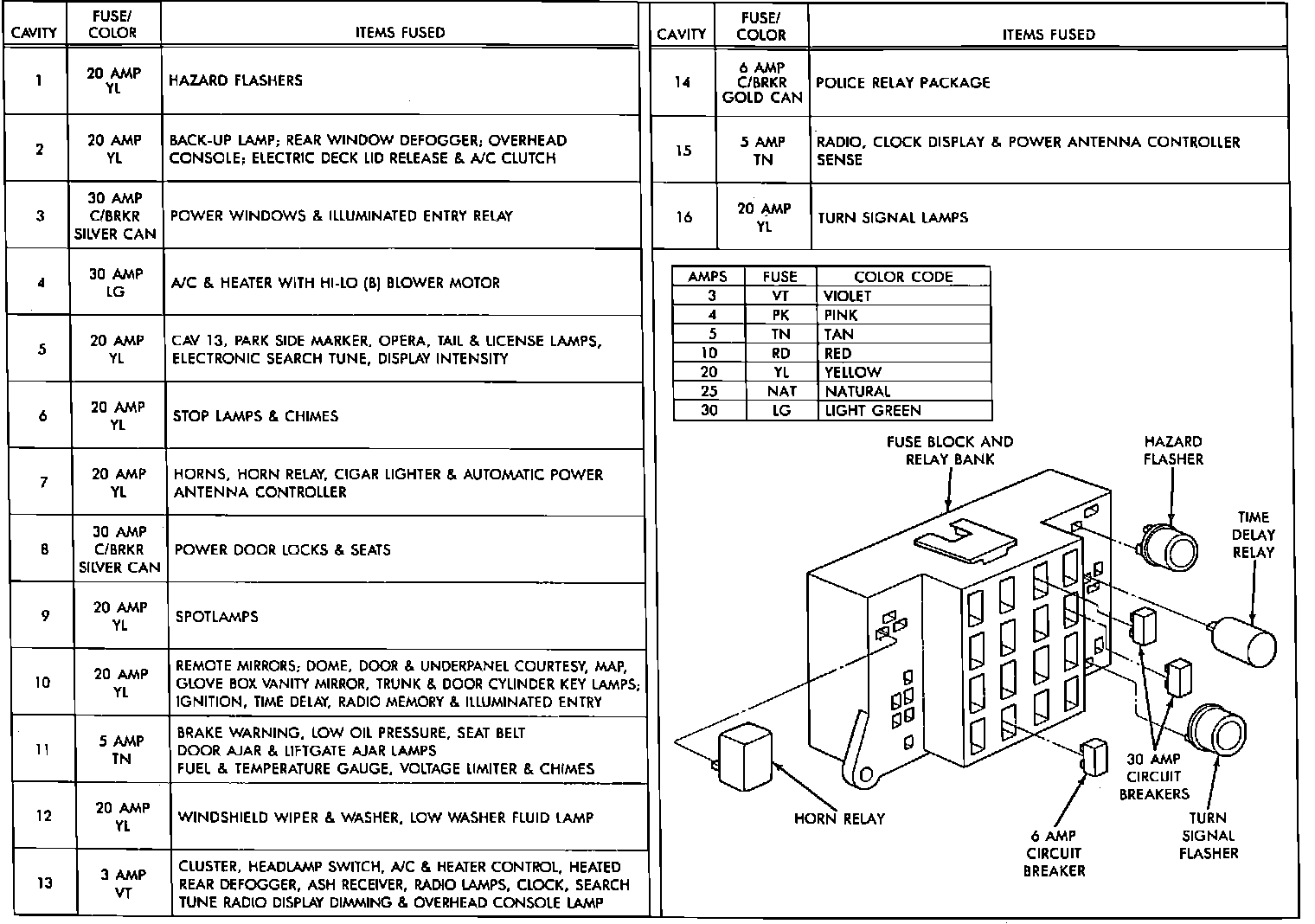

Fuse Application Chart:
Fuse Application Chart:
