Instrument Cluster / Carrier
>>
Instrument Panel Circuit Board
Instrument Panel Circuit Board

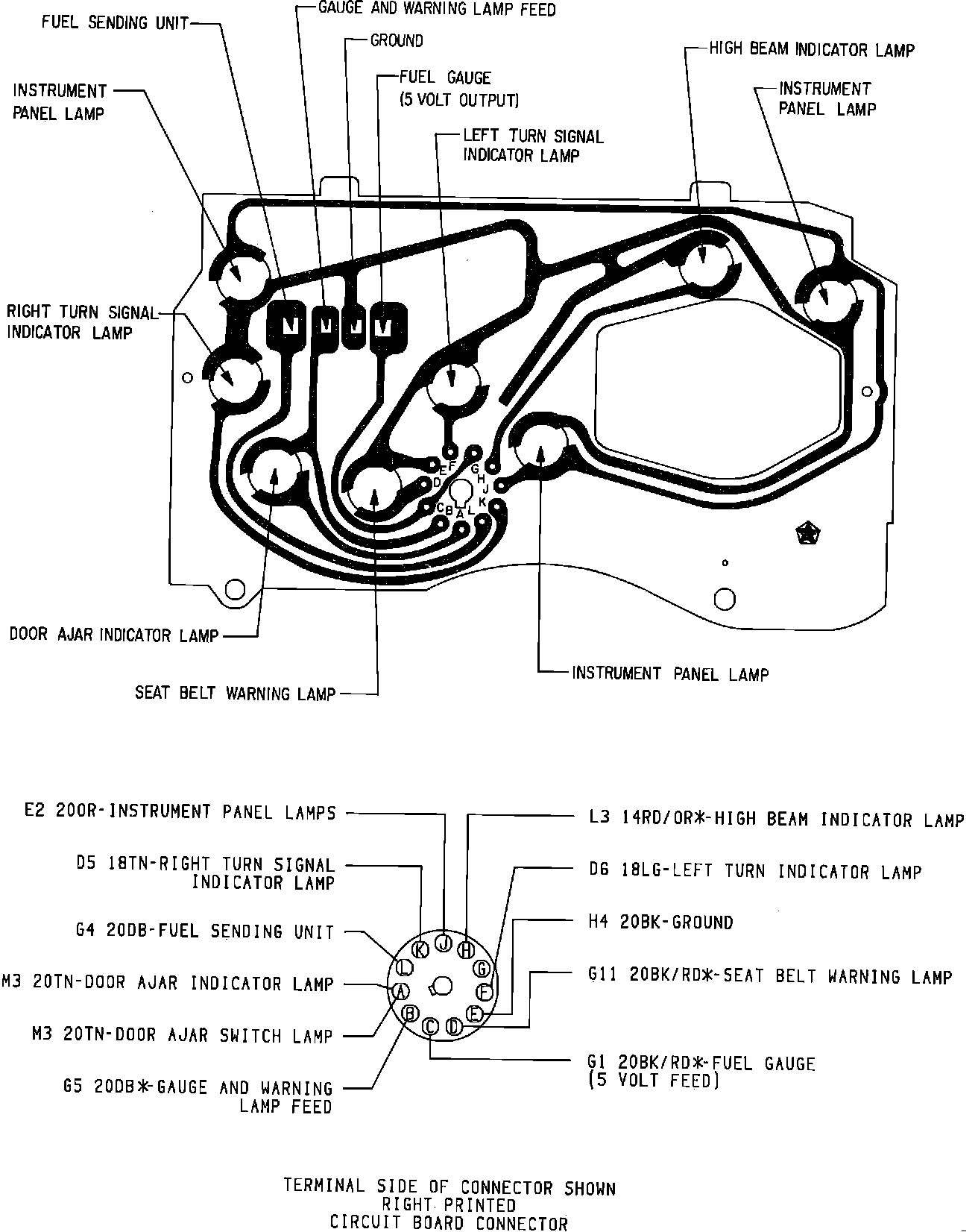

Printed Circuit Board & Connector:
Fig. 2 Printed Circuit Board & Connector (Part 2 of 2):
