Temperature Switch (Warning Indicator)
Temperature Switch (Warning Indicator)

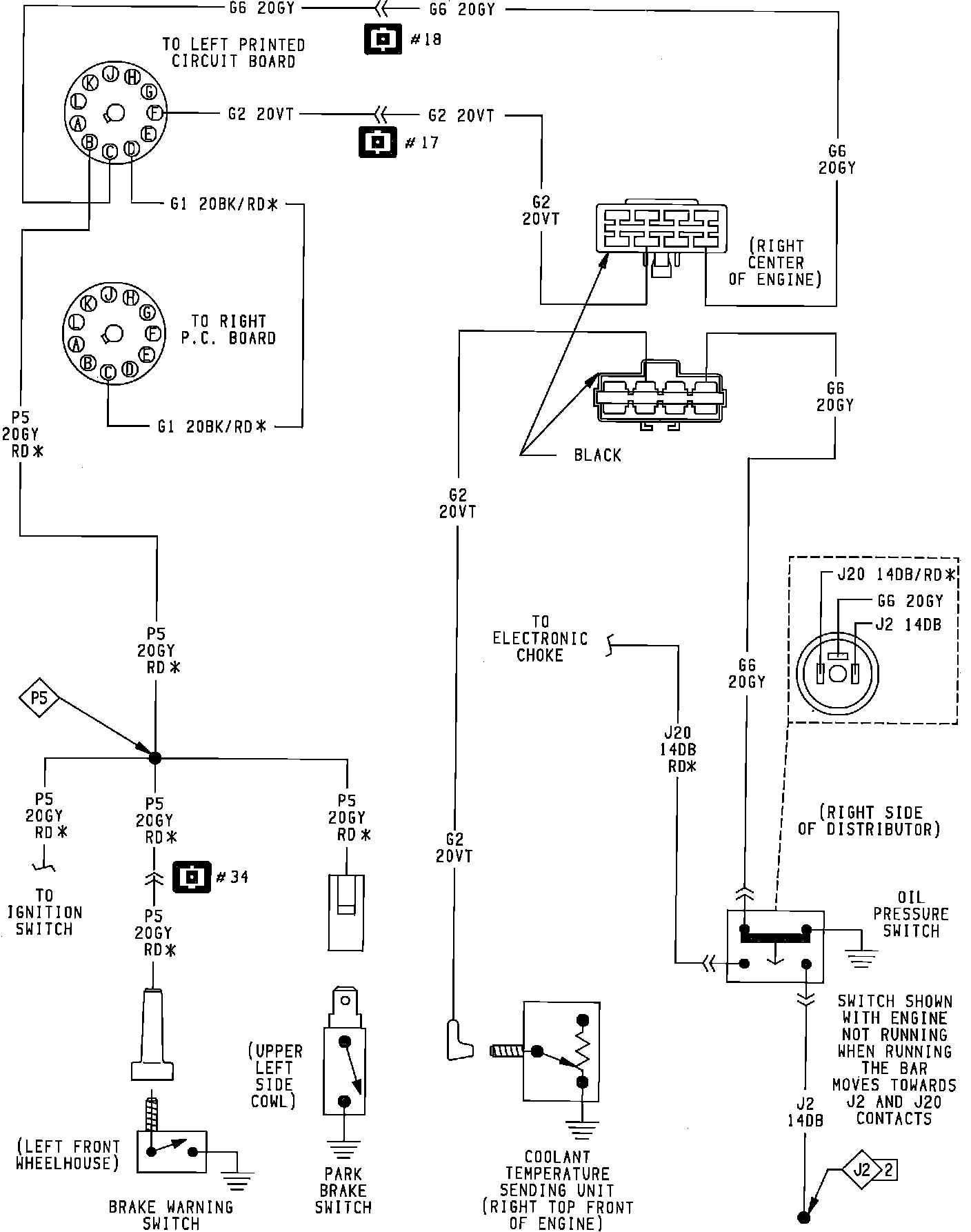

Brake Switch, Oil Pressure Switch & Temperature Warning System Wiring Circuit:
