Clearance and Design Specifications

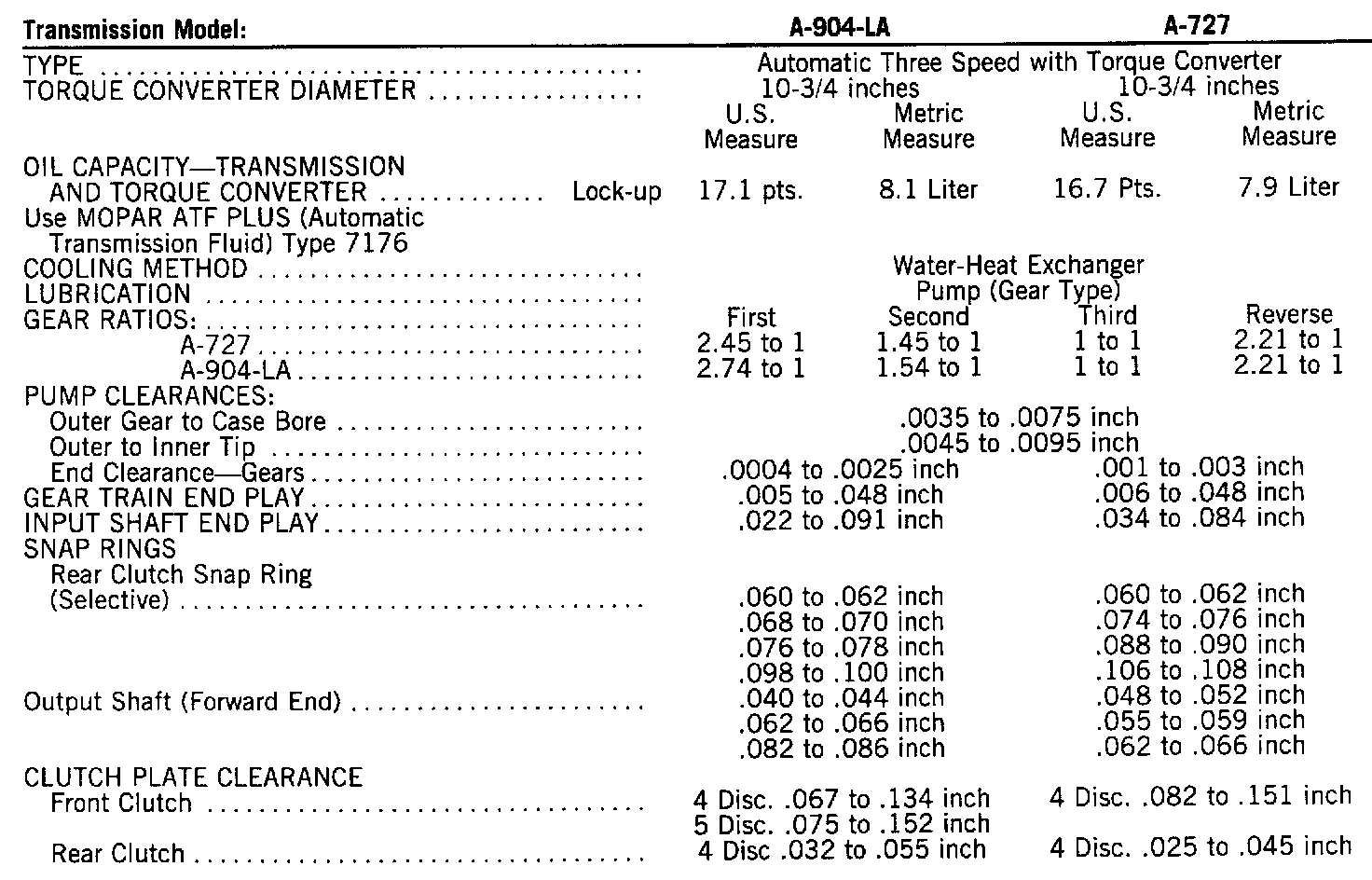

Specifications:




Continued:

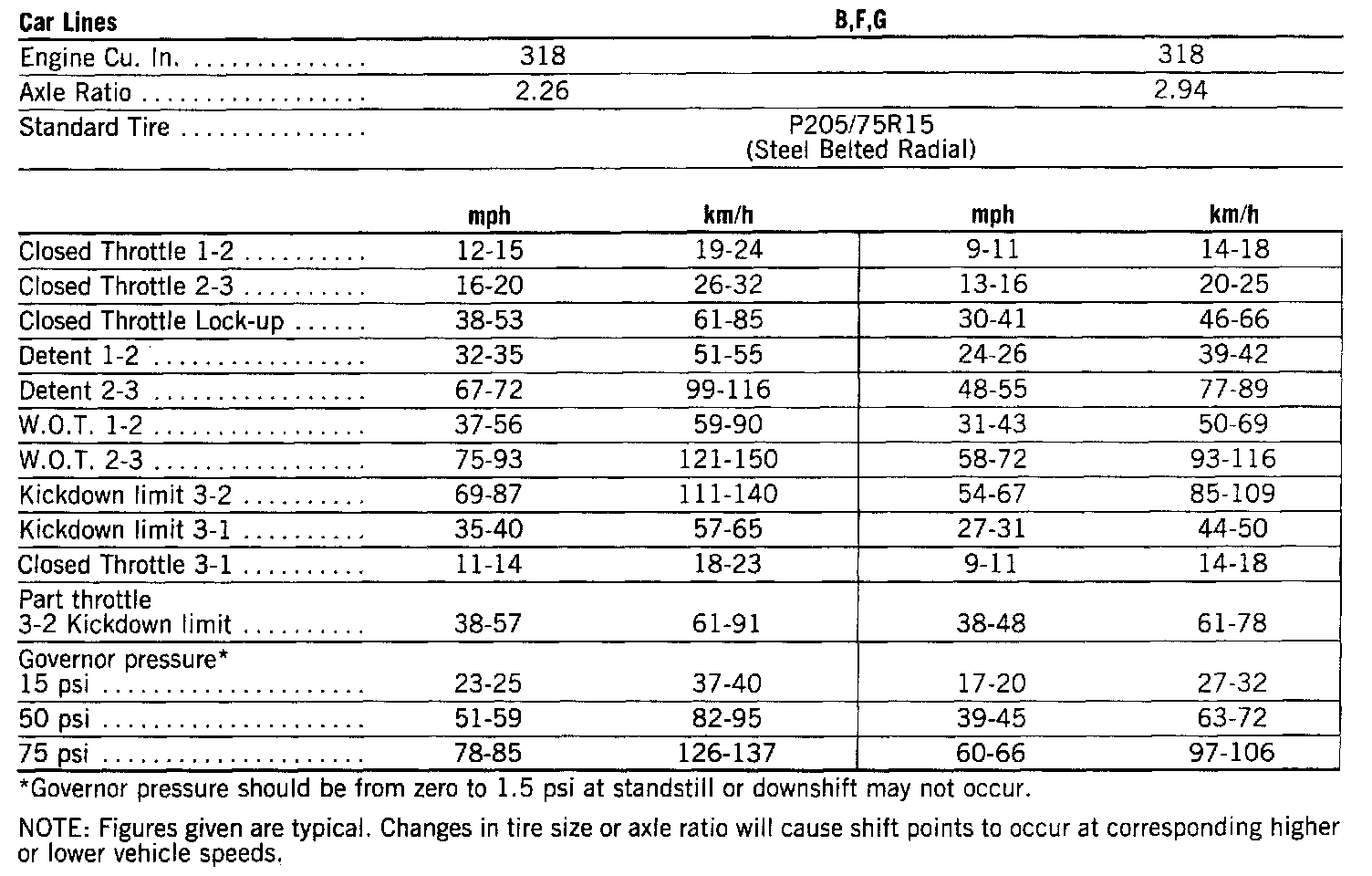

Shift Speeds And Governor Pressure Chart:
