Home
>>
Plymouth
>>
1988
>>
Grand Fury/Salon V8-318 5.2L VIN P 2-bbl
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

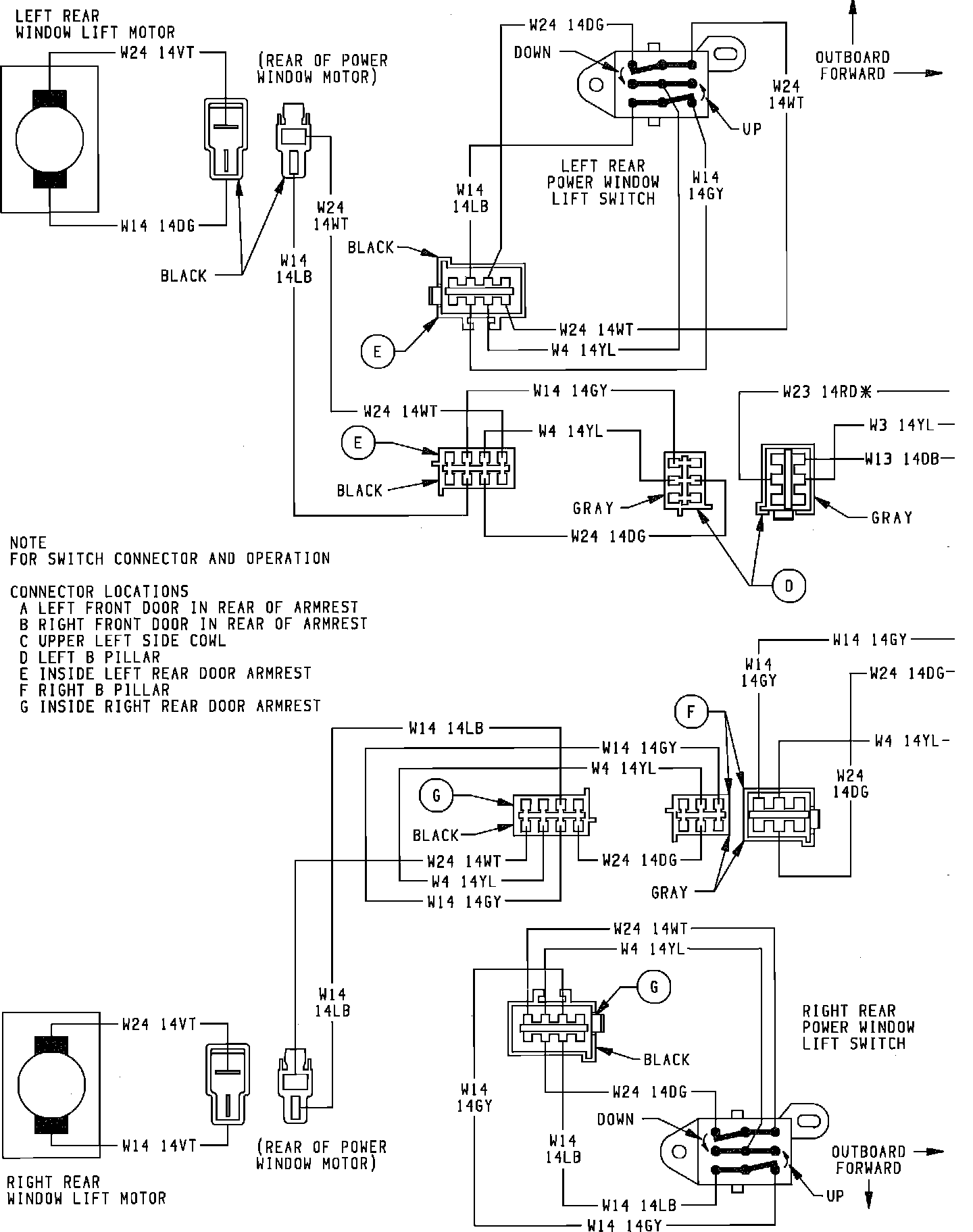

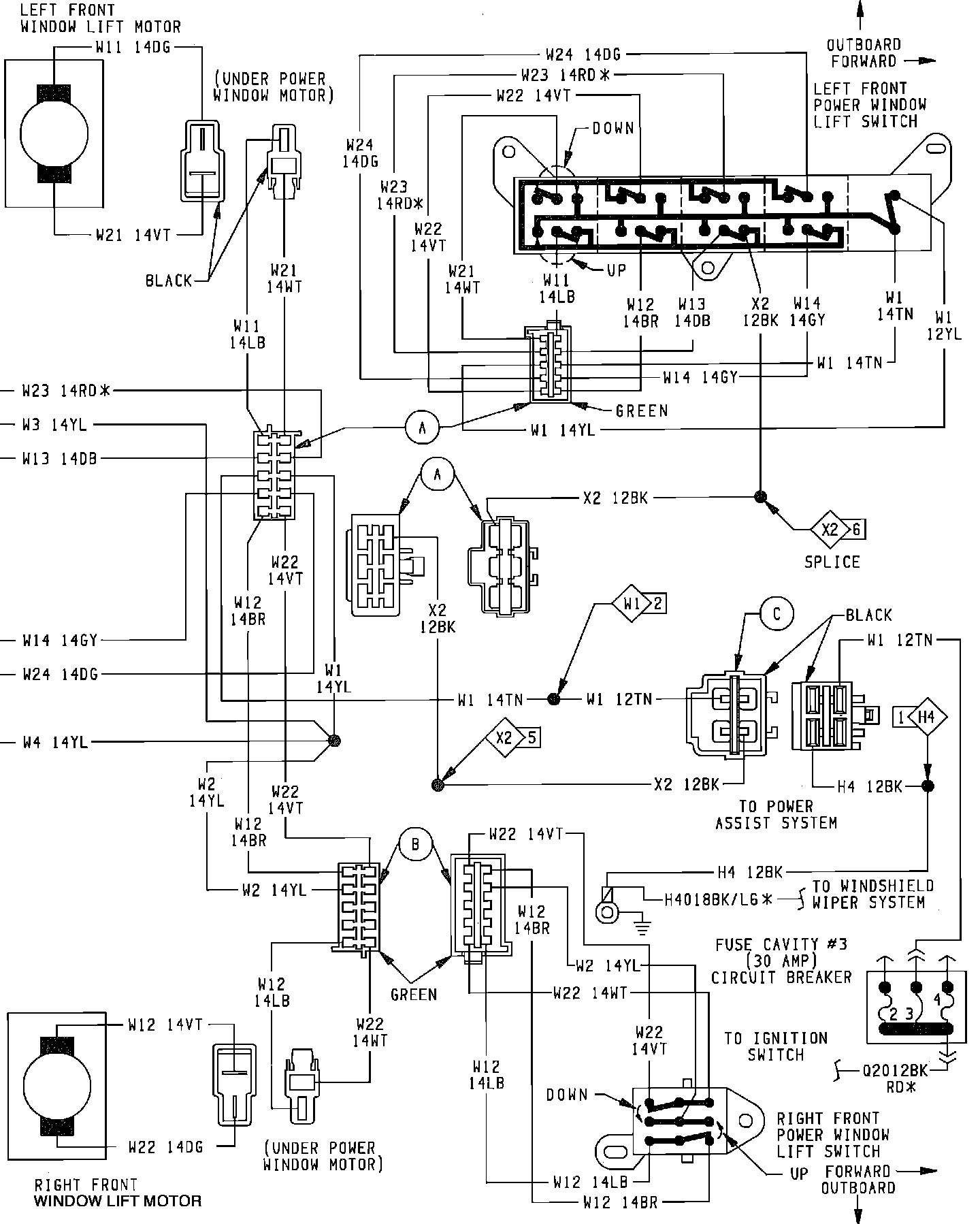

Power Window Window Wiring Circuit. 4 Door Models:
Power Window Window Wiring Circuit. 4 Door Models:
