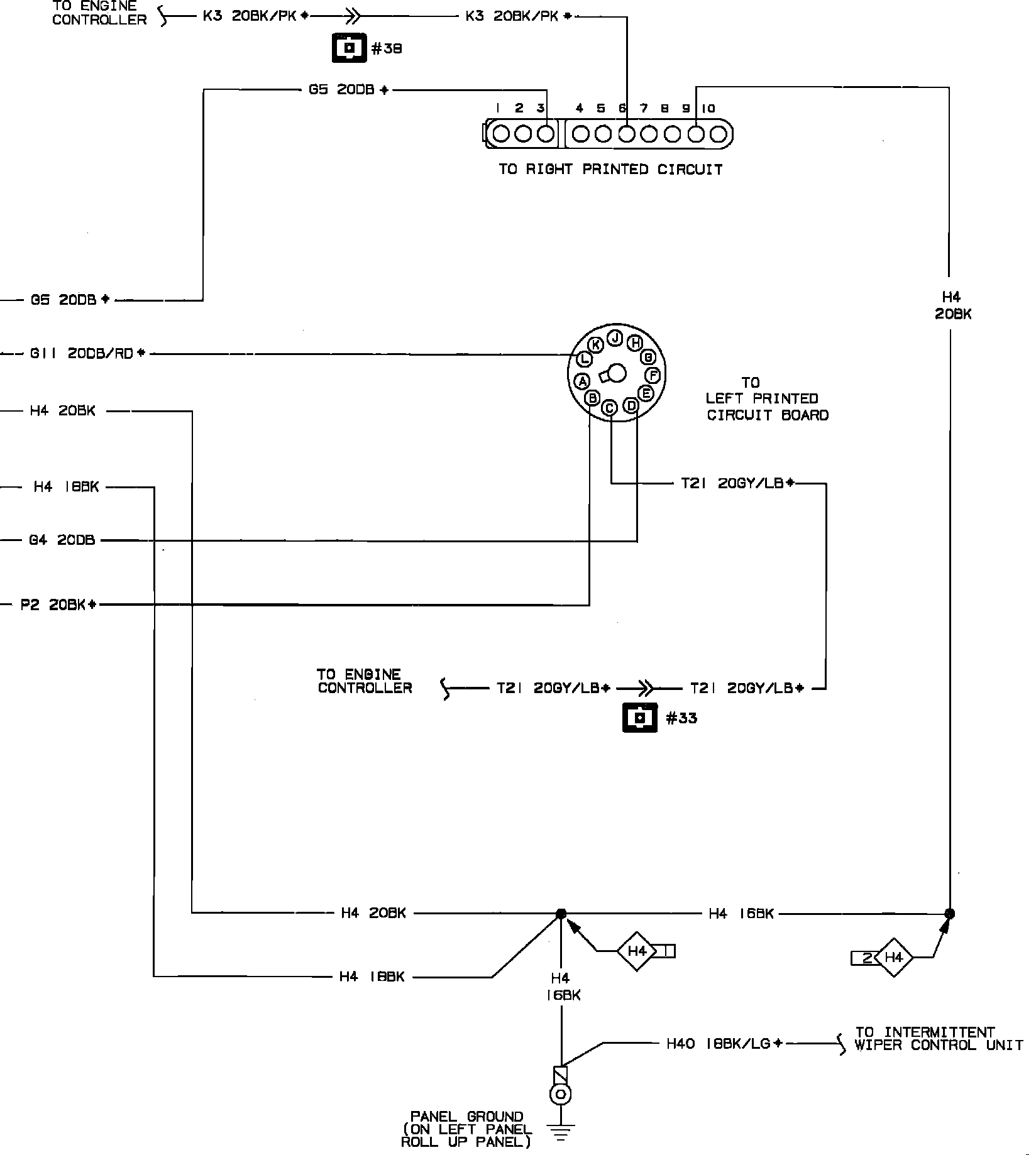

Brake Switch, Seatbelt Warning System & Tachometer System Wiring Circuit:

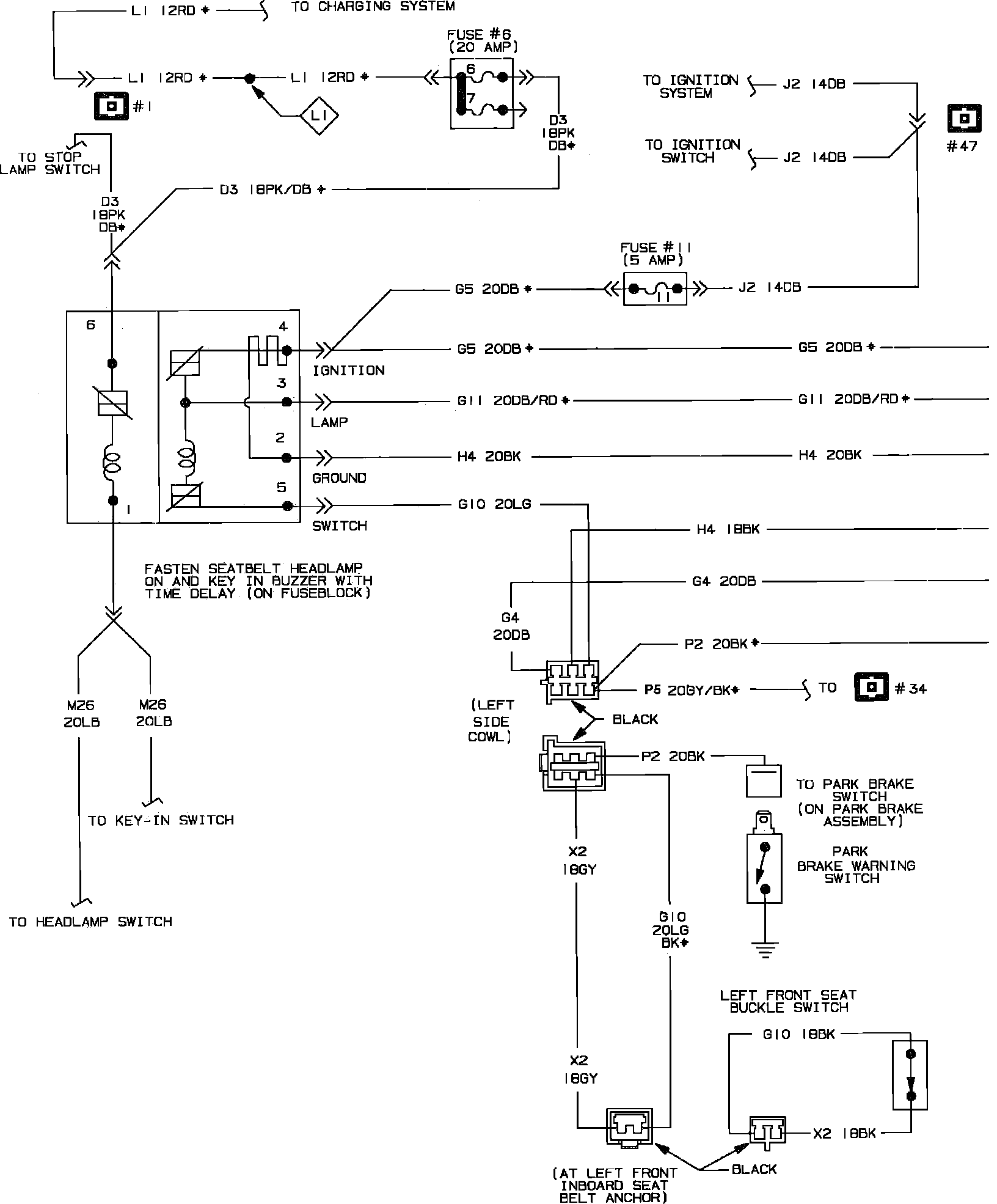

Brake Switch, Seatbelt Warning System & Tachometer System Wiring Circuit:
