A/C & Heater (Engine Compartment)
A/C & Heater (Engine Compartment)

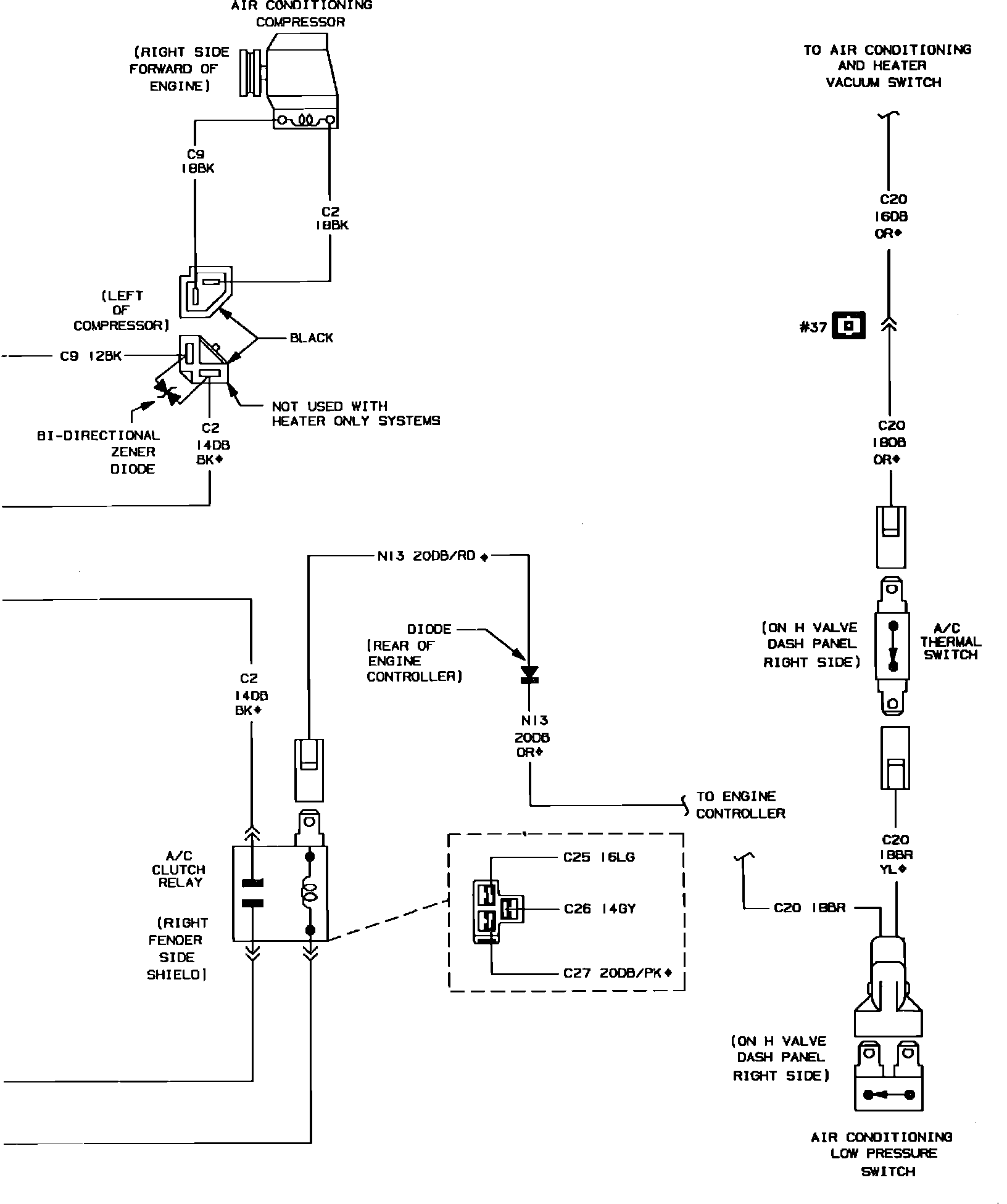

Air Conditioning & Heater Wiring Circuit. Horizon & Omni (Part 1 of 2):
Air Conditioning & Heater Wiring Circuit. Horizon & Omni (Part 2 of 2):
