Liftgate Wiper & Washer System
Liftgate Wiper & Washer System

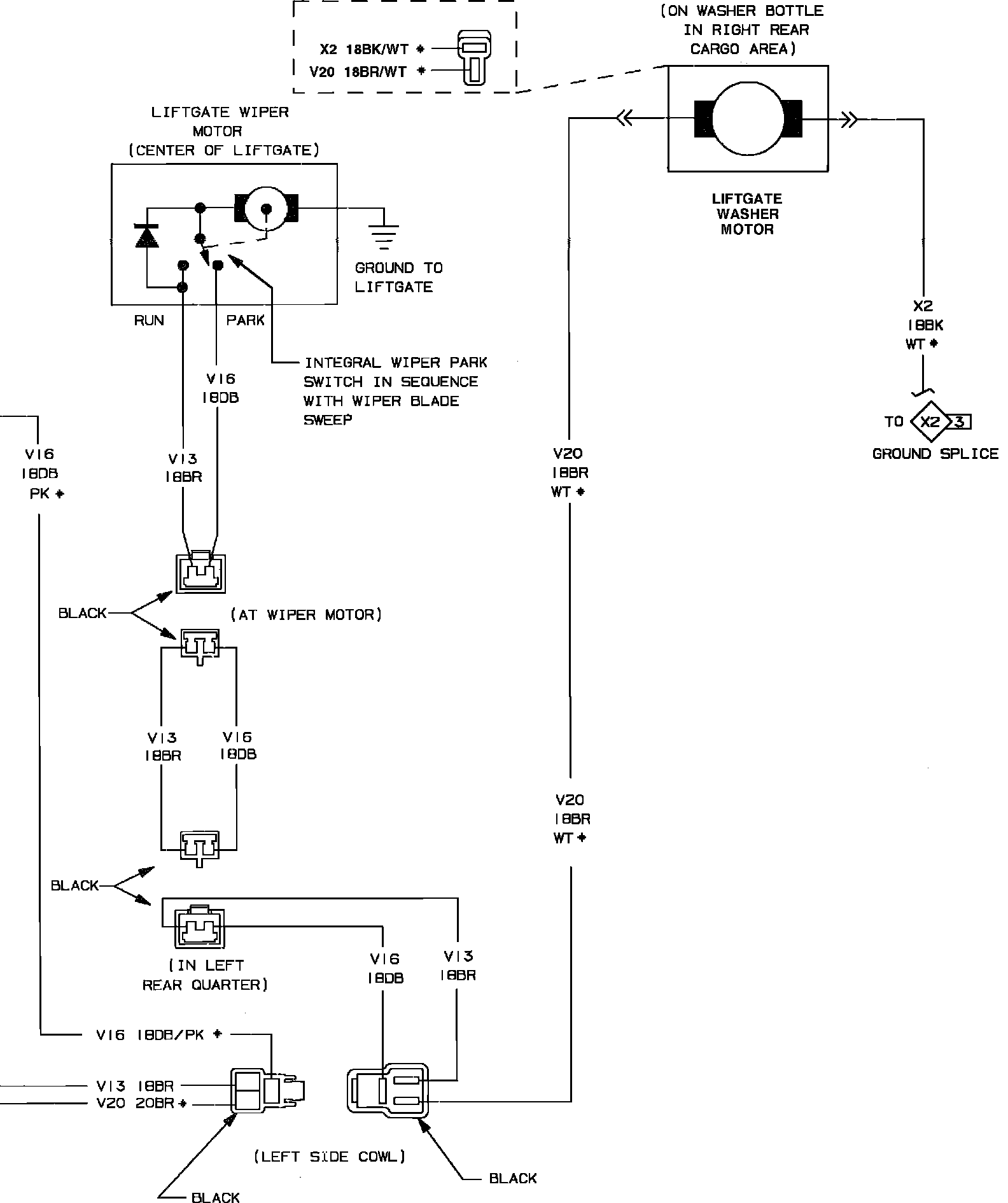

Liftgate Wiper & Washer System Wiring Circuit:

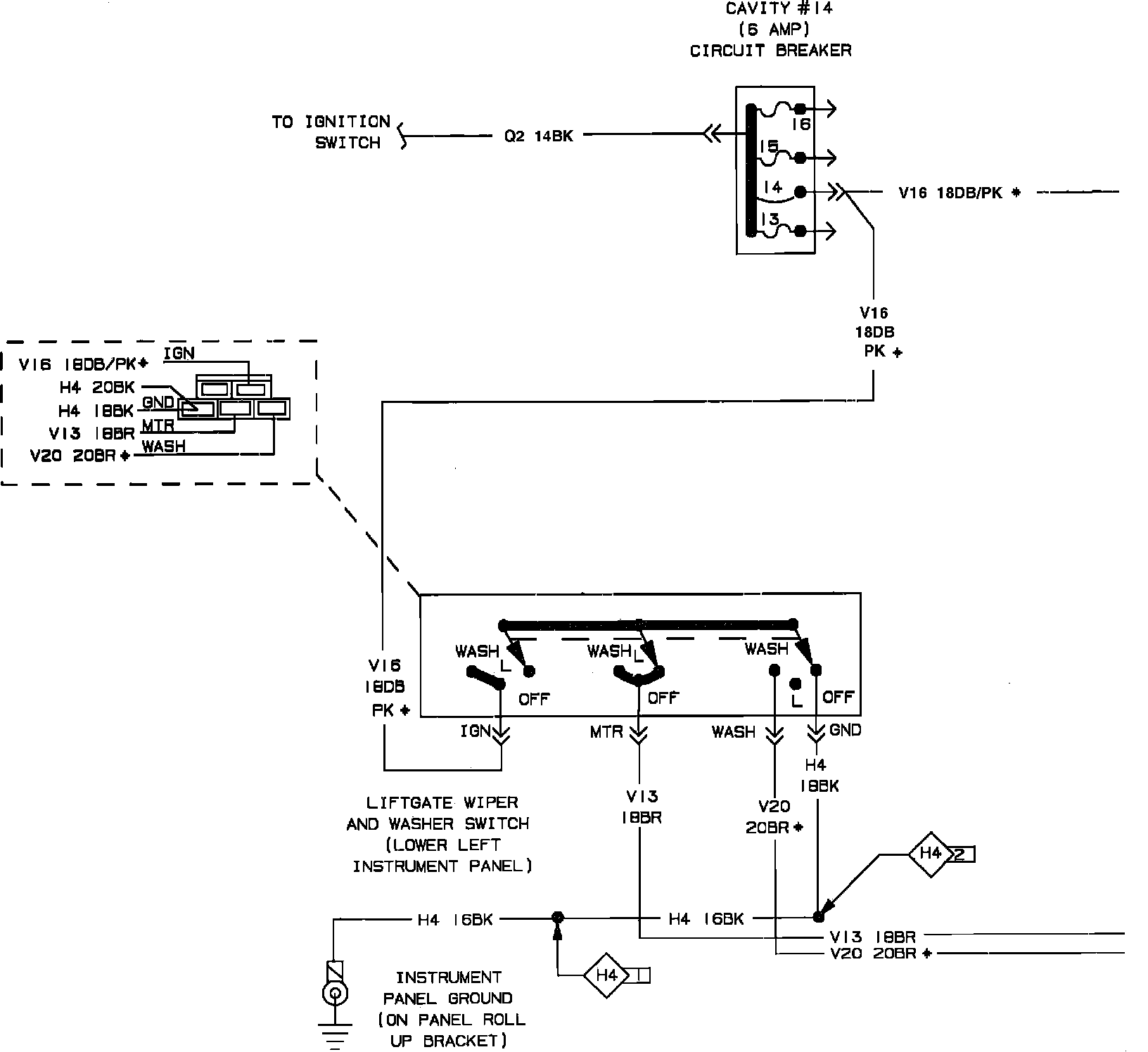

Liftgate Wiper & Washer System Wiring Circuit:
