Brake Switch (Cruise Control)

Speed Control Switch & Stop Lamp Wiring Circuit:

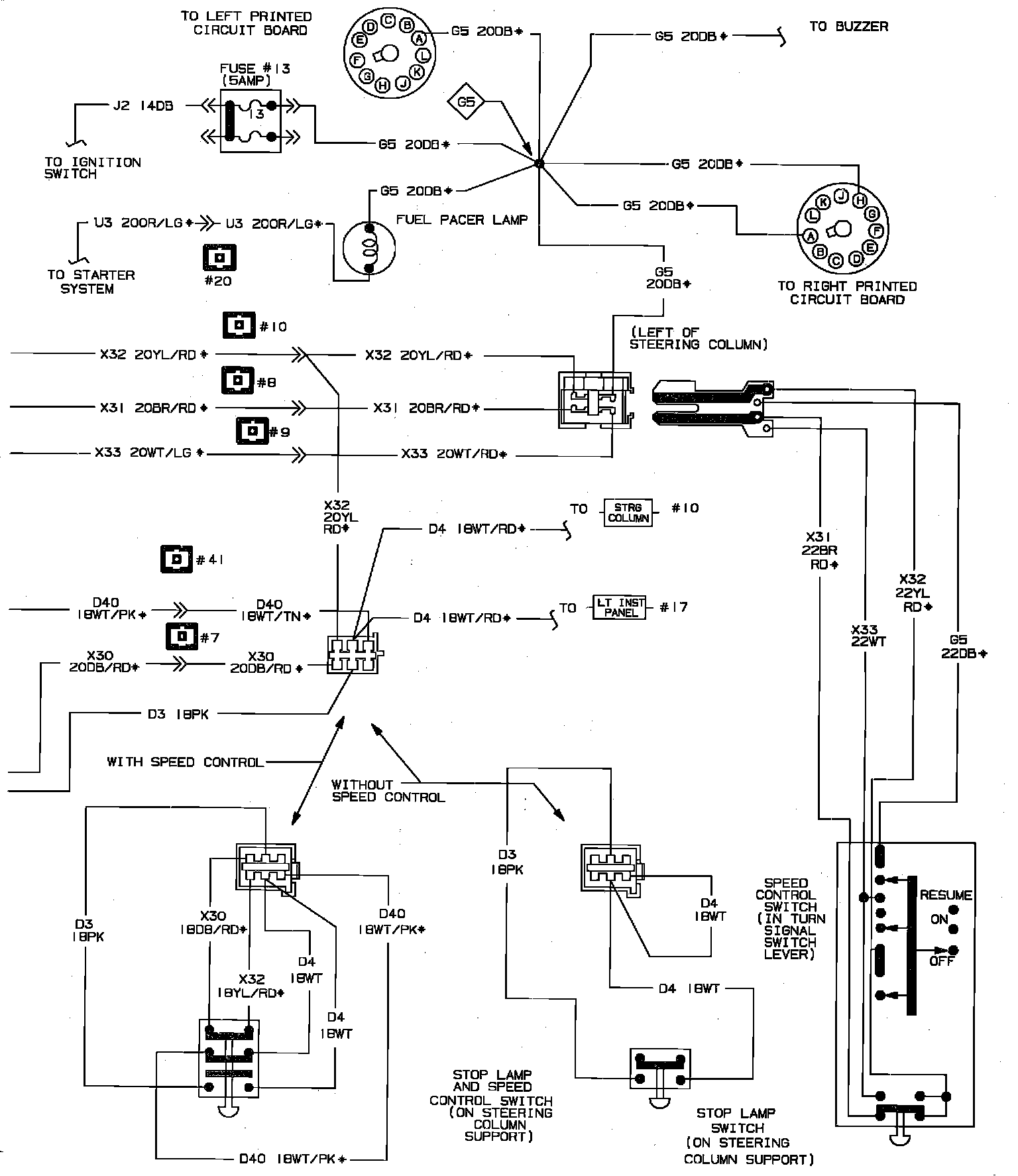

Speed Control Switch & Stop Lamp Wiring Circuit:
