Home
>>
Plymouth
>>
1988
>>
Reliant L4-153 2.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
Liftgate Wiper & Washer System
Liftgate Wiper & Washer System

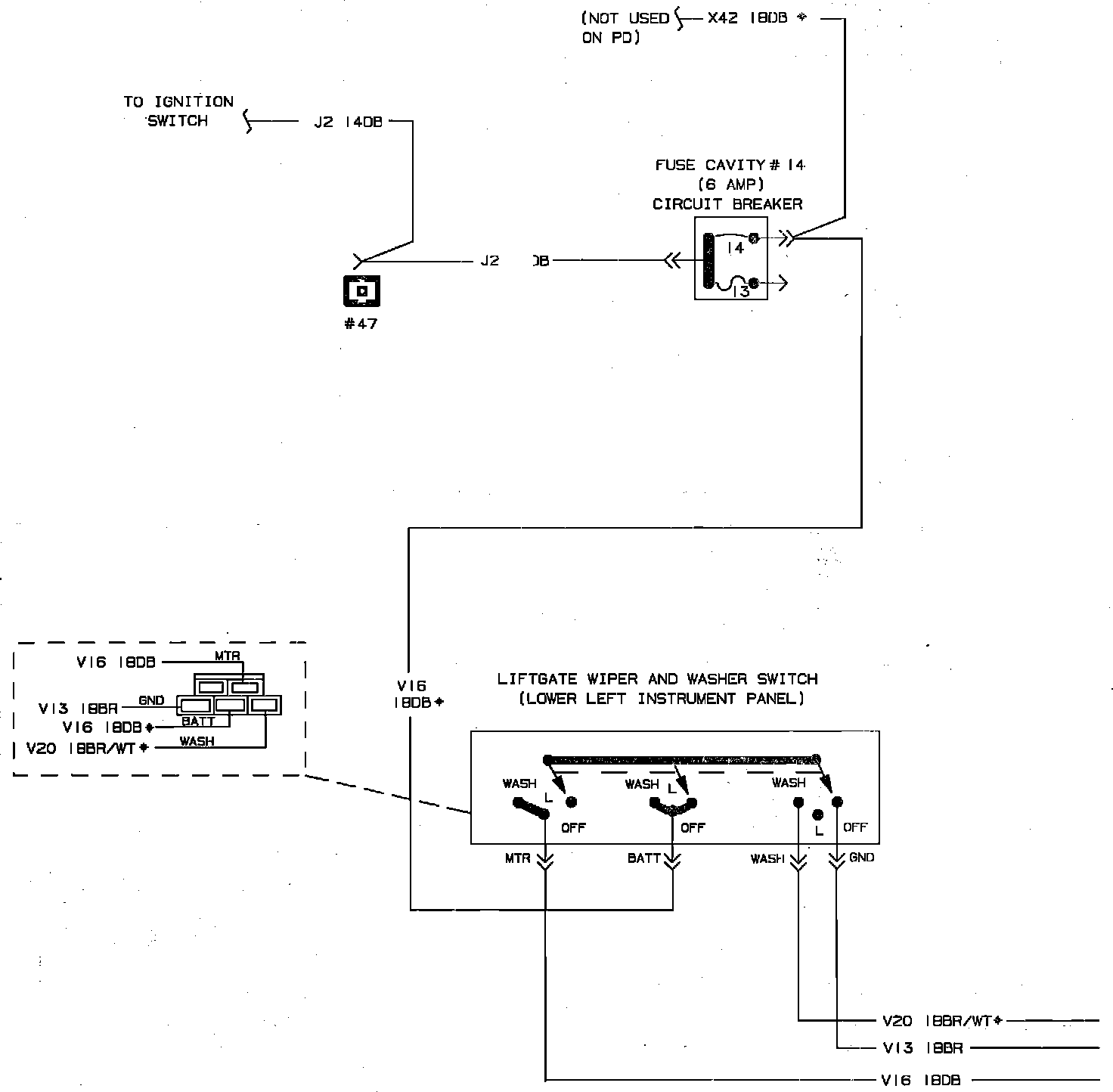

Wiper & Washer System Wiring Circuit. Liftgate:
Wiper & Washer System Wiring Circuit. Liftgate:
