Emission Control Systems
>>
High Altitude
High Altitude

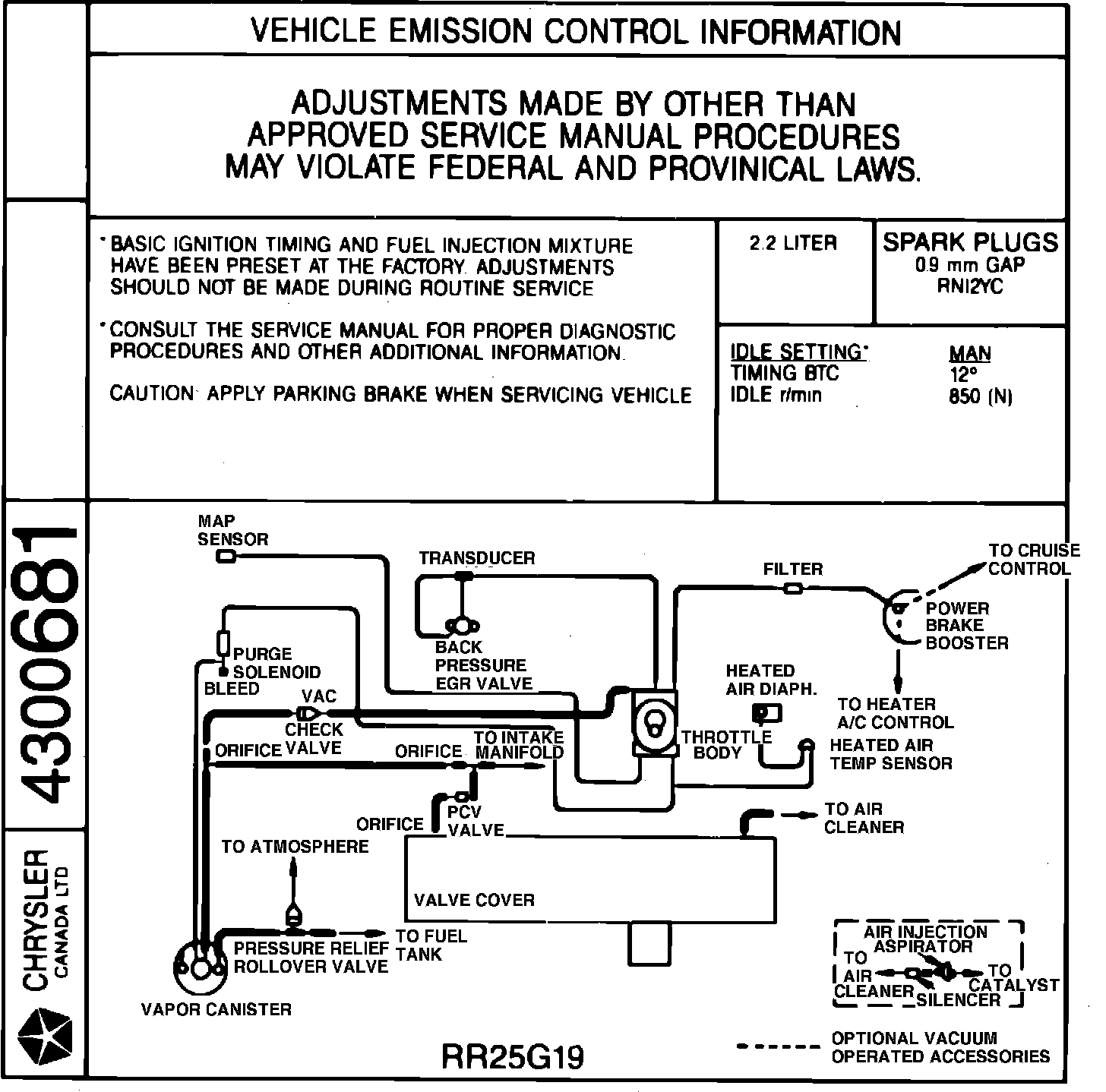

Fig. 1 Vacuum Hose Routing. 1988 4-135/2.2L & 4-153/2.5L, TBI High Alt. Exc. Calif.:
