Rear Lighting

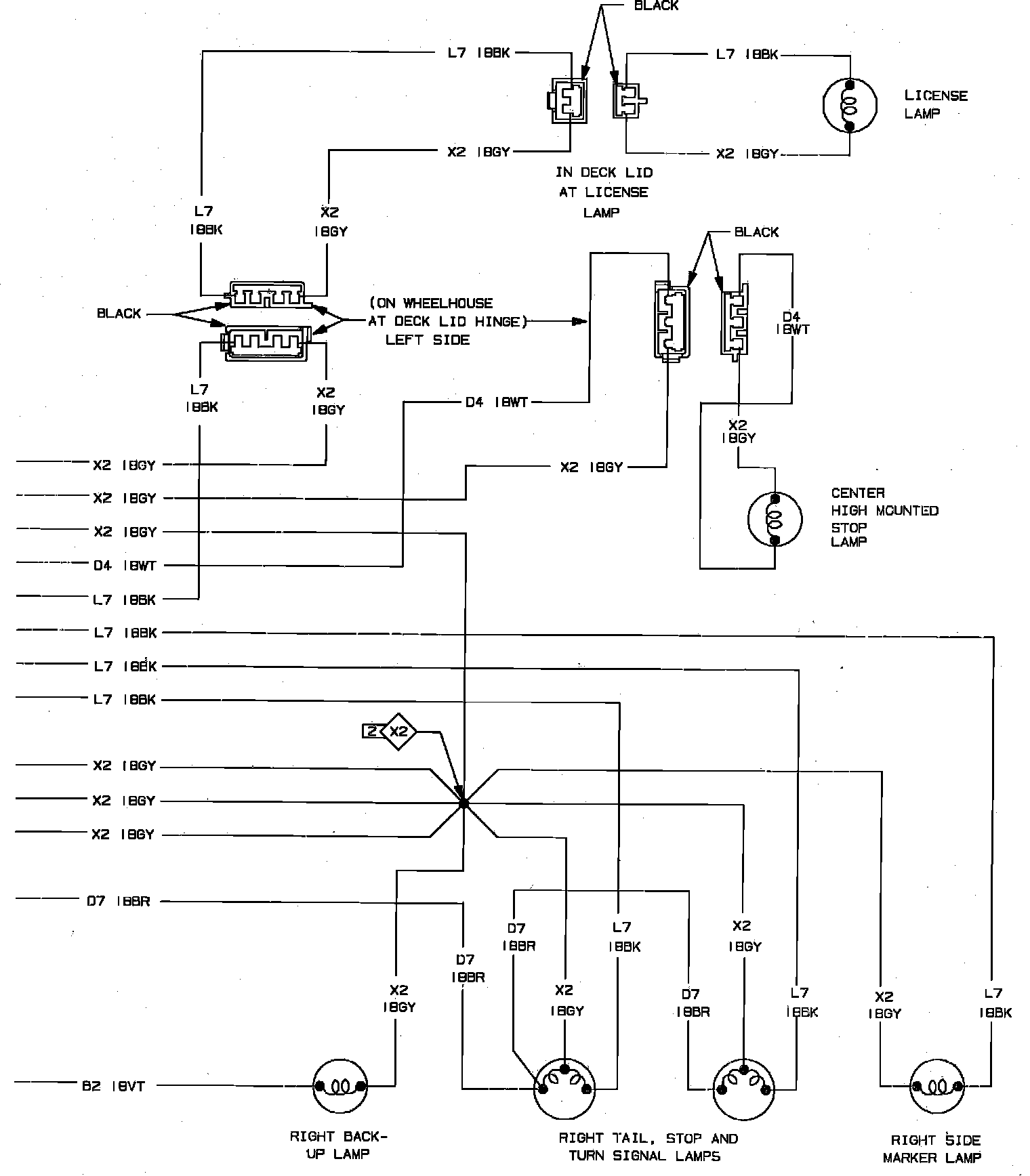

Rear Lighting Wiring Circuit. Exc. Station Wagon:

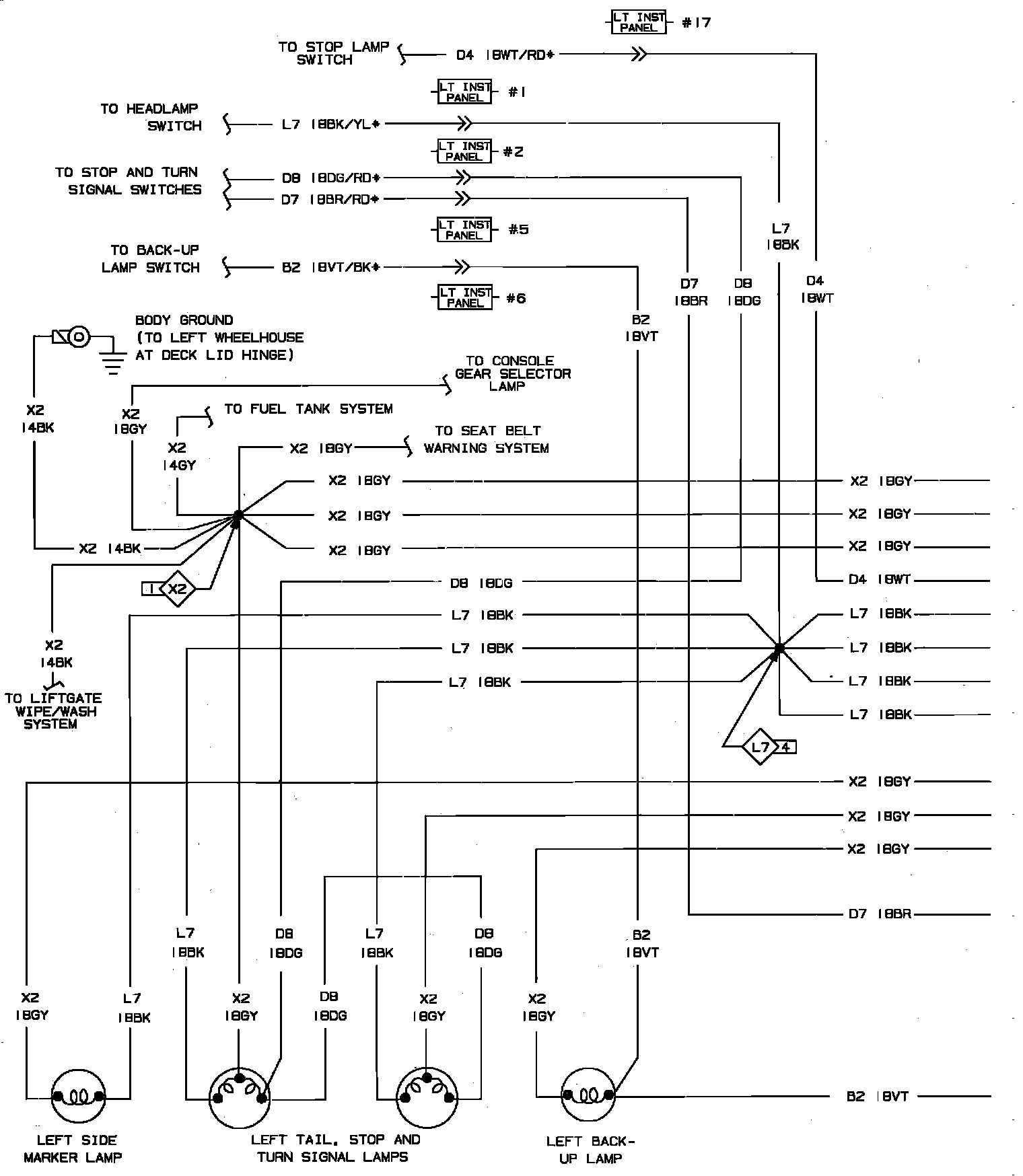

Rear Lighting Wiring Circuit. Exc. Station Wagon:

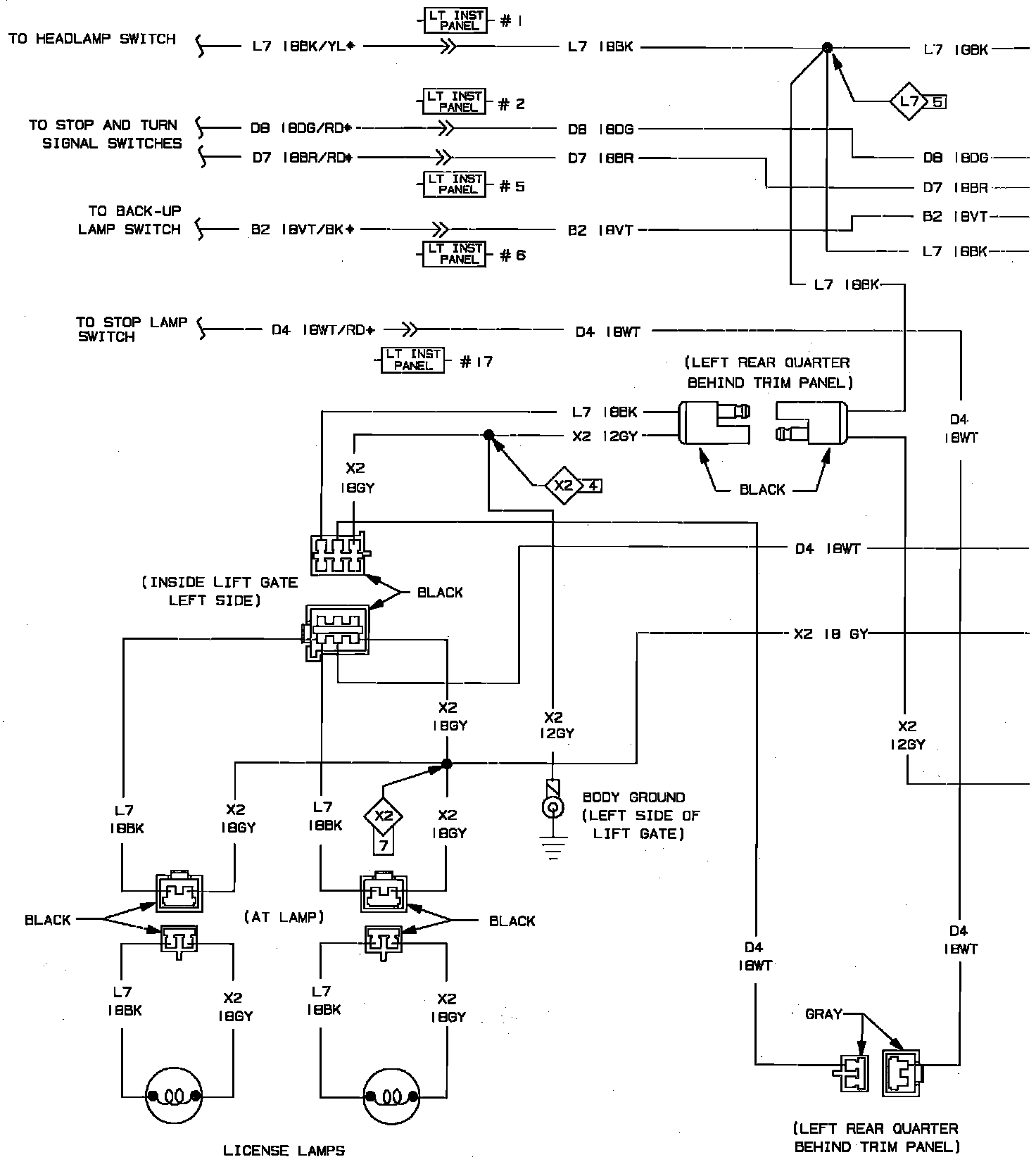

Rear Lighting Wiring Circuit. Station Wagon:

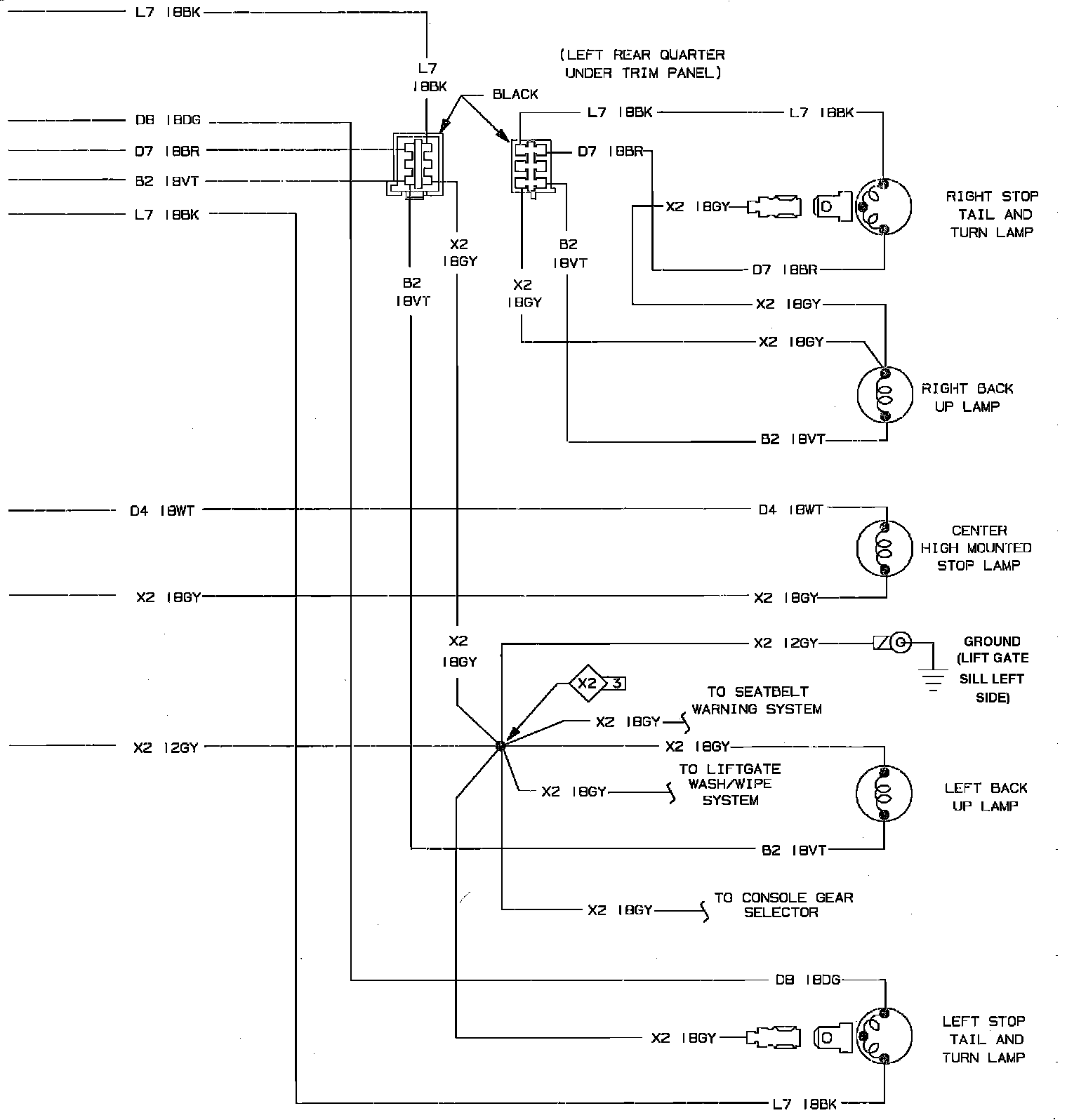

Rear Lighting Wiring Circuit. Station Wagon:
