Fuse Block
Fuse Block

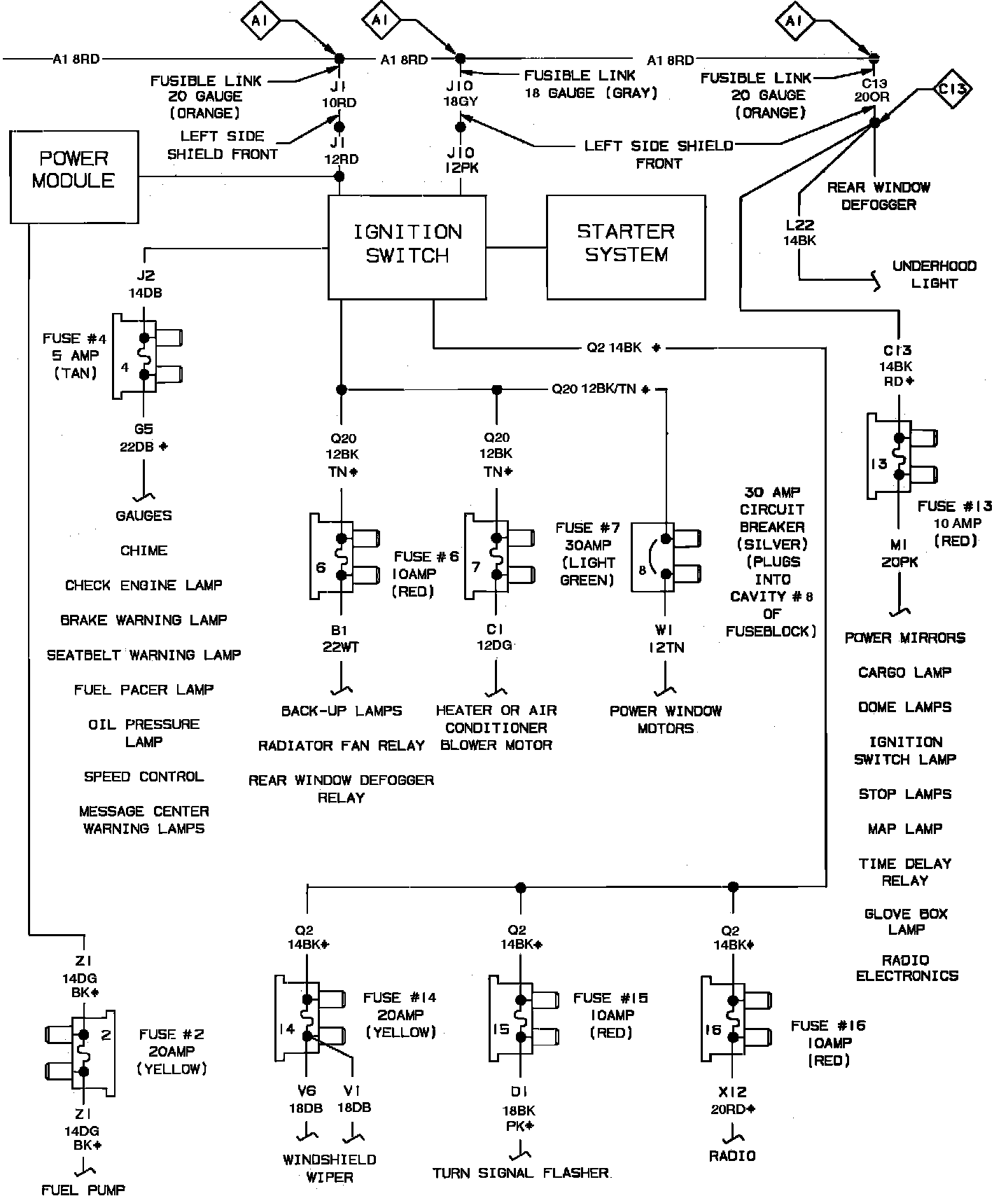

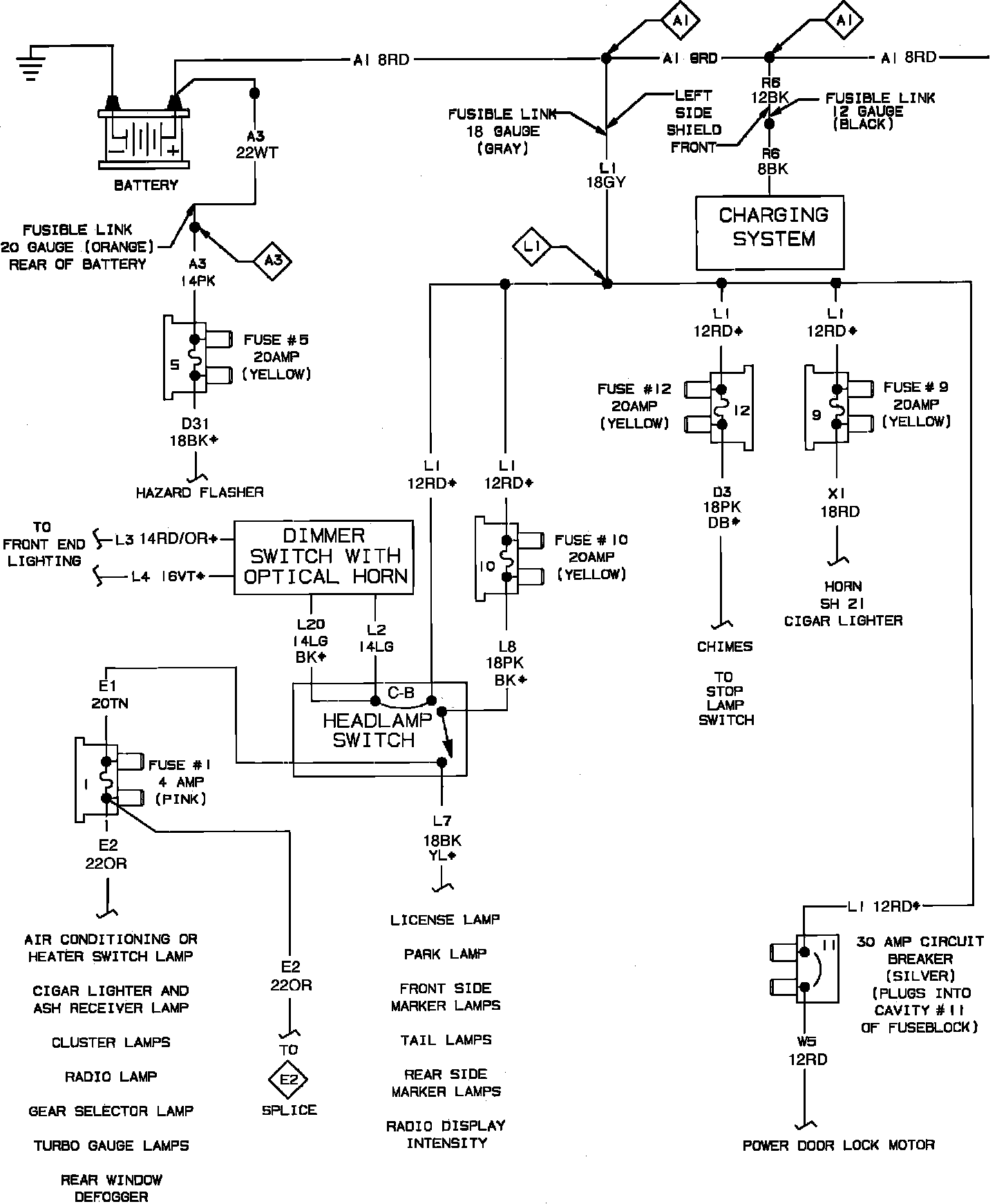

Fuse Panel - Left Side Under Instrument Panel, On Left Cowl:

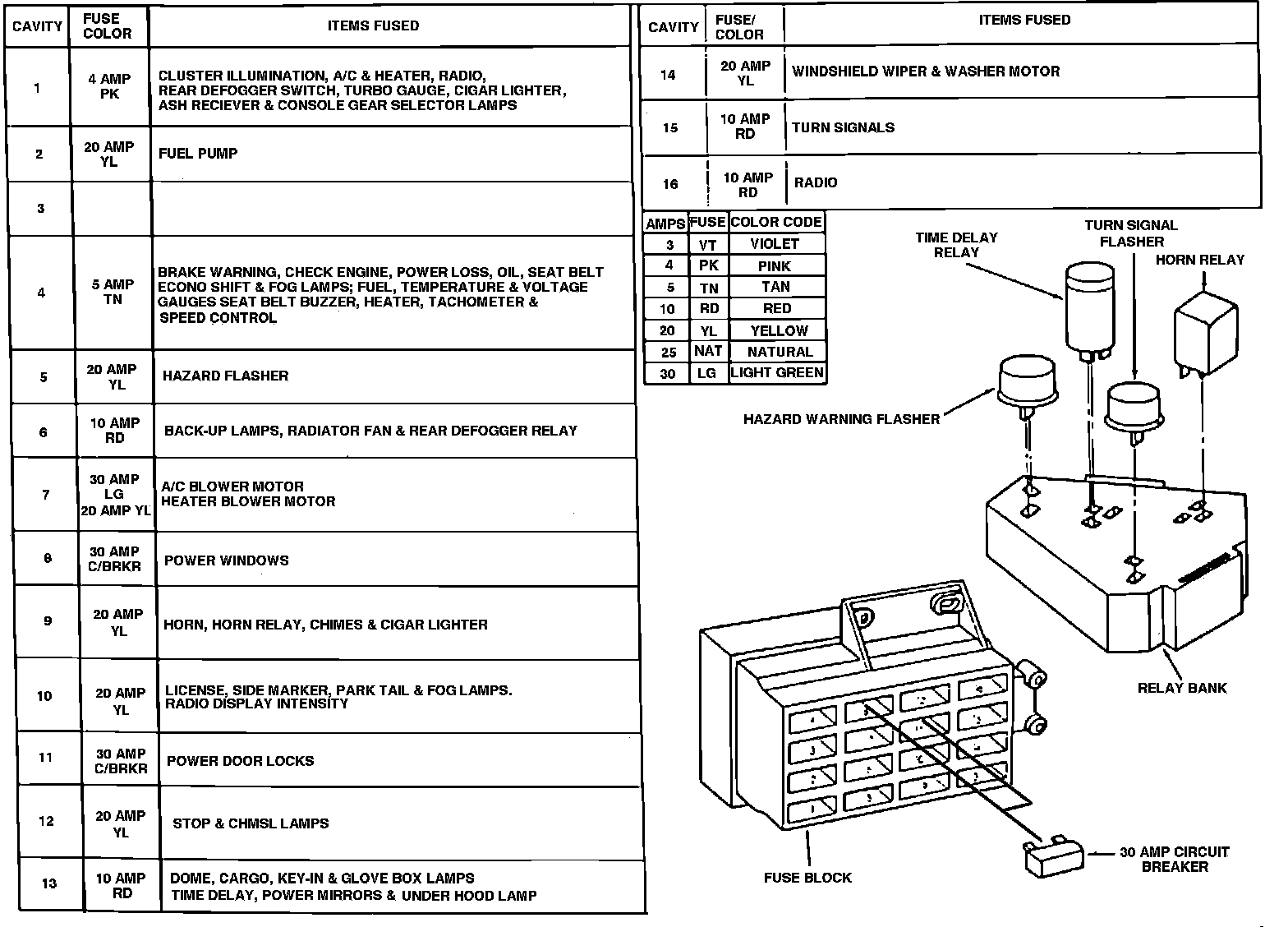

Fuse Application Chart:
Fuse Application Chart:
