Power and Ground Distribution
>>
Diagrams
>>
Connector Views
>>
Left Side
Left Side

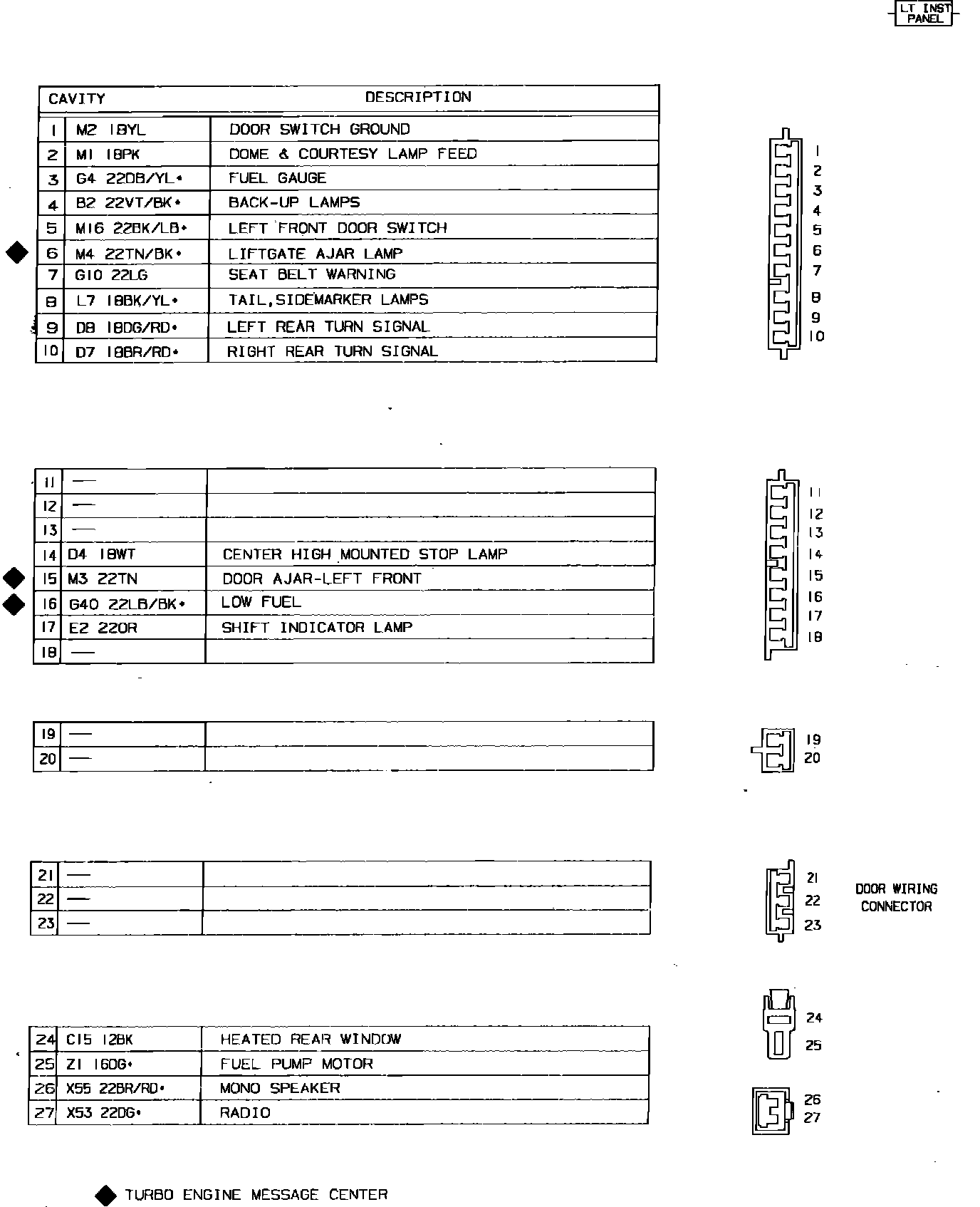

Fig. 4 Body To Instrument Panel Connector (Part 1 of 2). Left Side:
Fig. 4 Body To Instrument Panel Connector (Part 2 of 2). Left Side:
