Right Side
Right Side

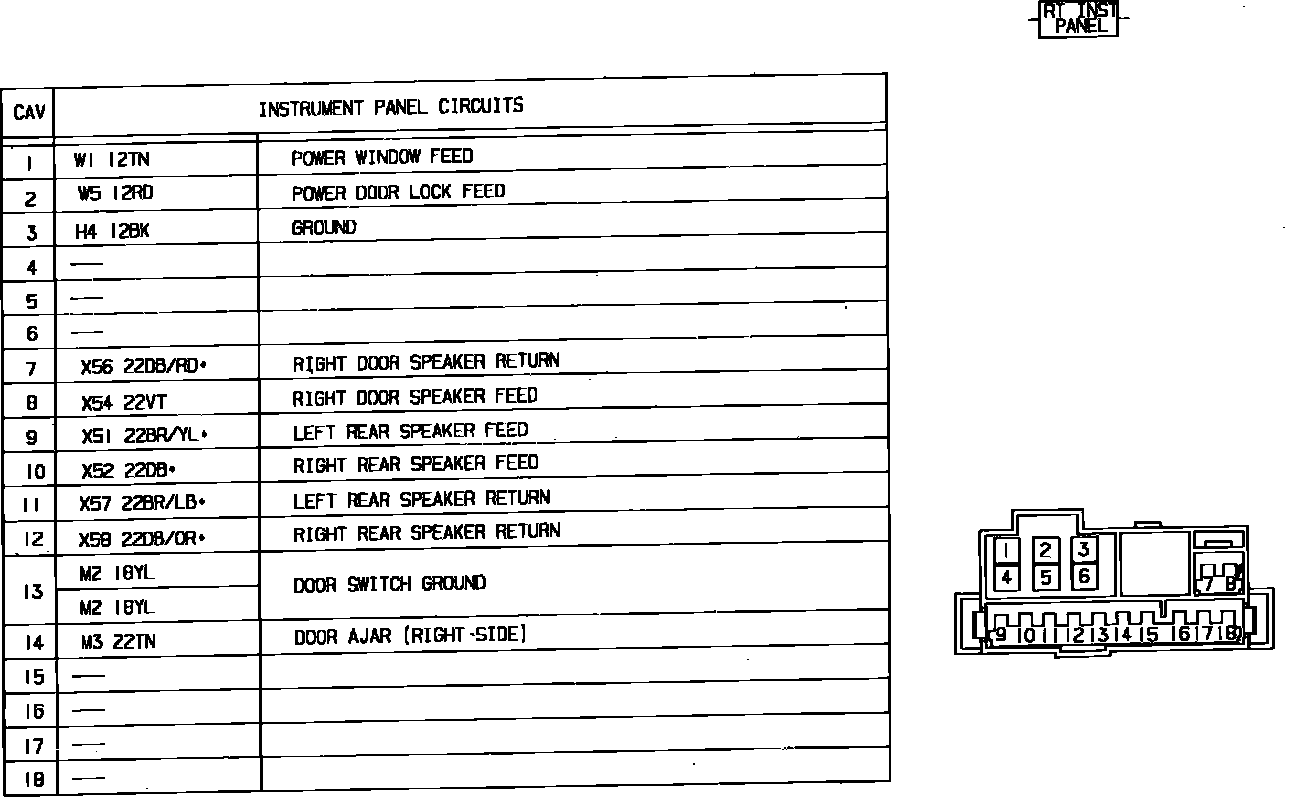

Fig. 5 Body To Instrument Panel Connector (Part 1 of 2). Right Side:
Fig. 5 Body To Instrument Panel Connector (Part 2 of 2). Right Side:
