Rear Lighting

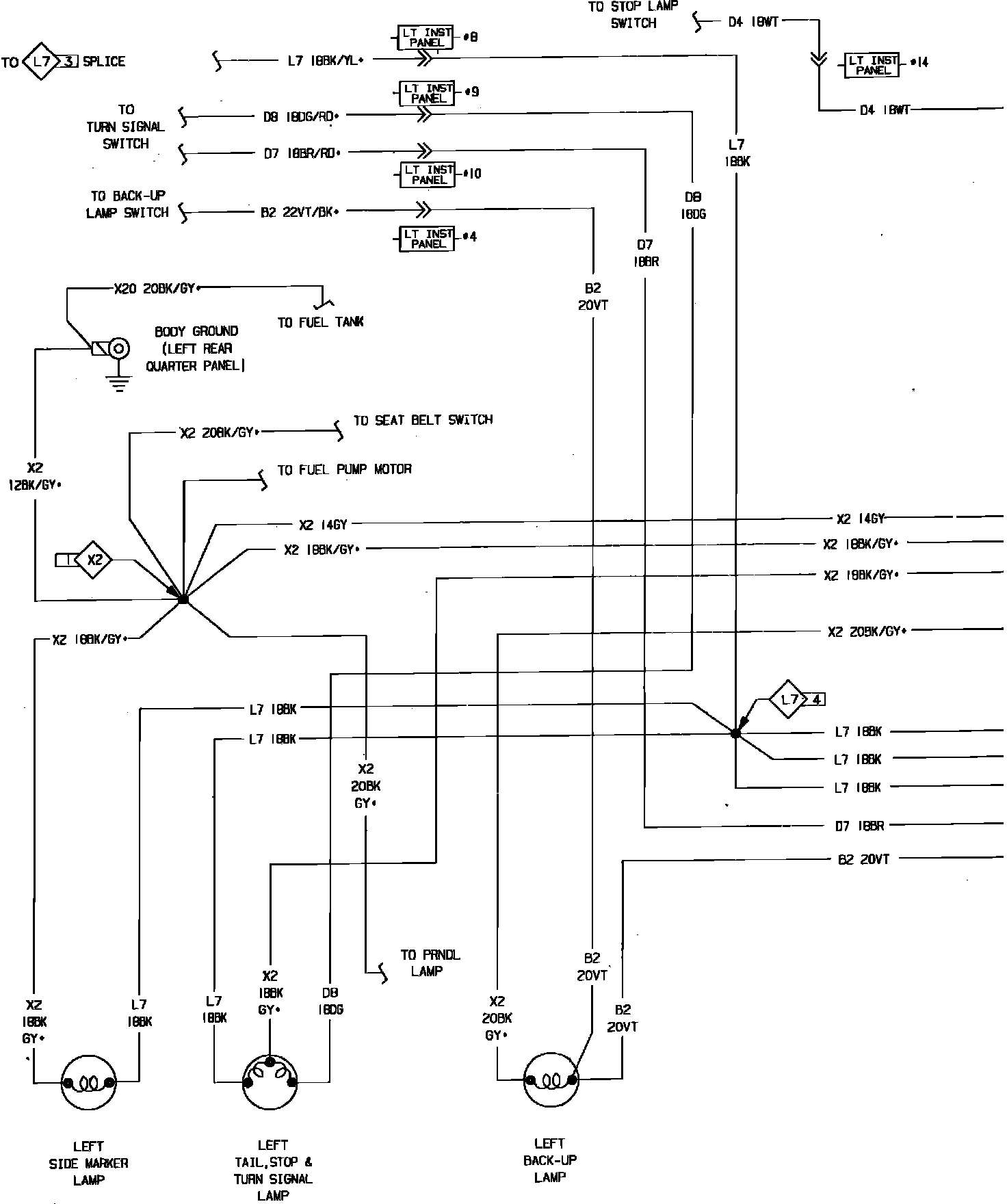

Fig. 35 Rear Lighting Wiring Circuit (Part 1 of 2):

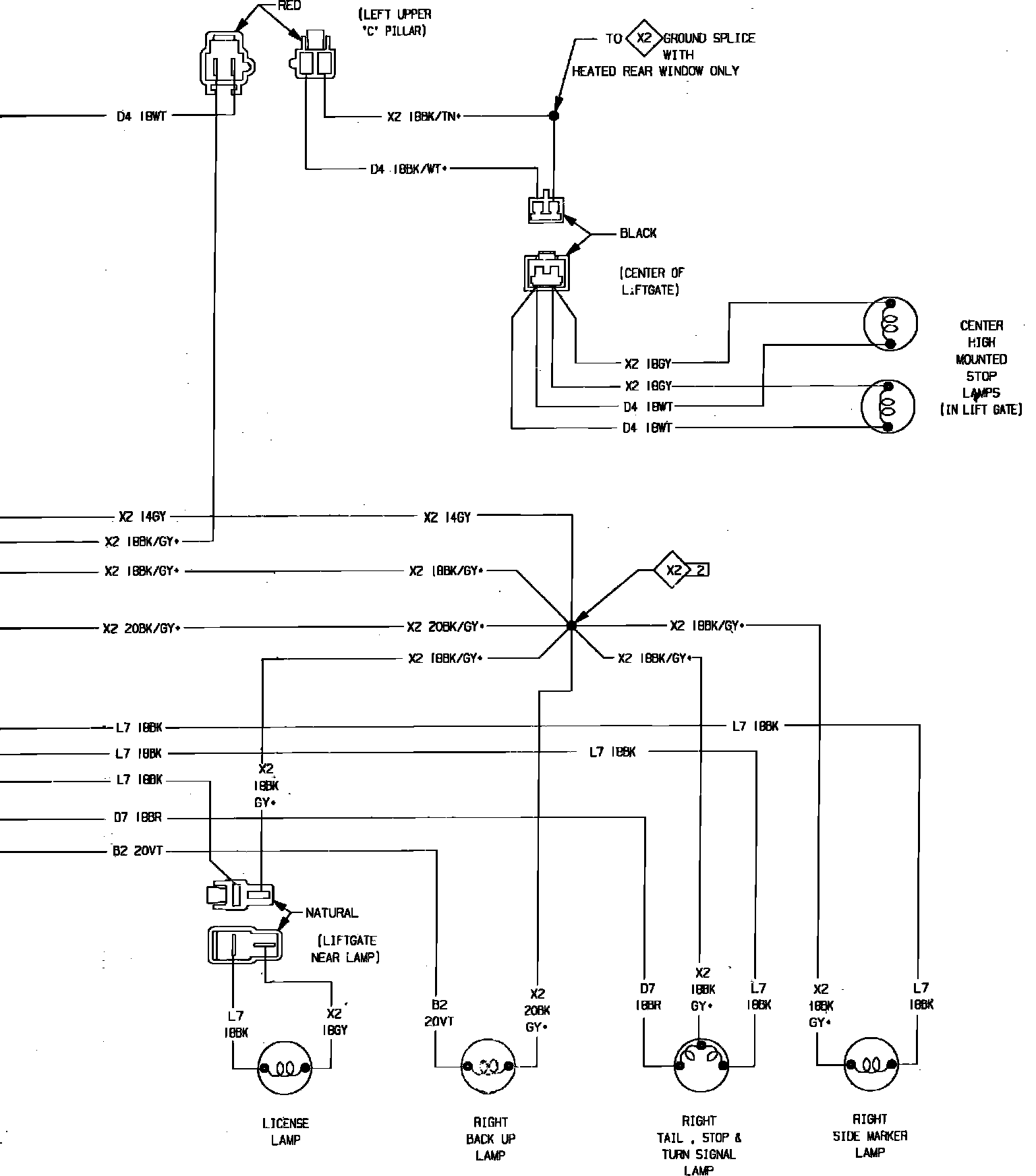

Fig. 35 Rear Lighting Wiring Circuit (Part 2 of 2):
