Headlamp Dimmer Switch
Headlamp Dimmer Switch

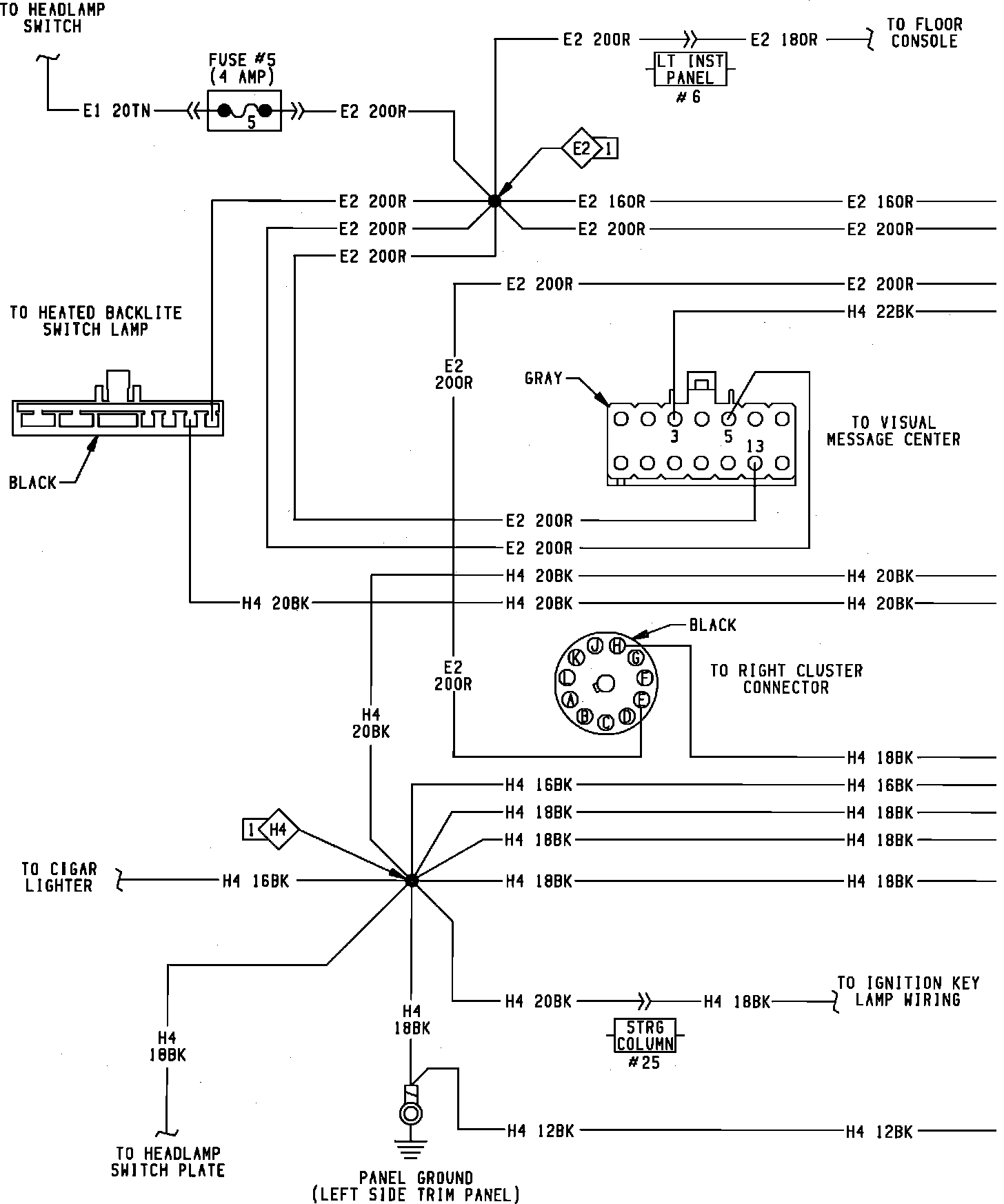

Controlled Interior Lighting Wiring Circuit:
Controlled Interior Lighting Wiring Circuit:
