Home >> Plymouth >> 1989 >> Acclaim L4-153 2.5L SOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams

Electrical Diagrams

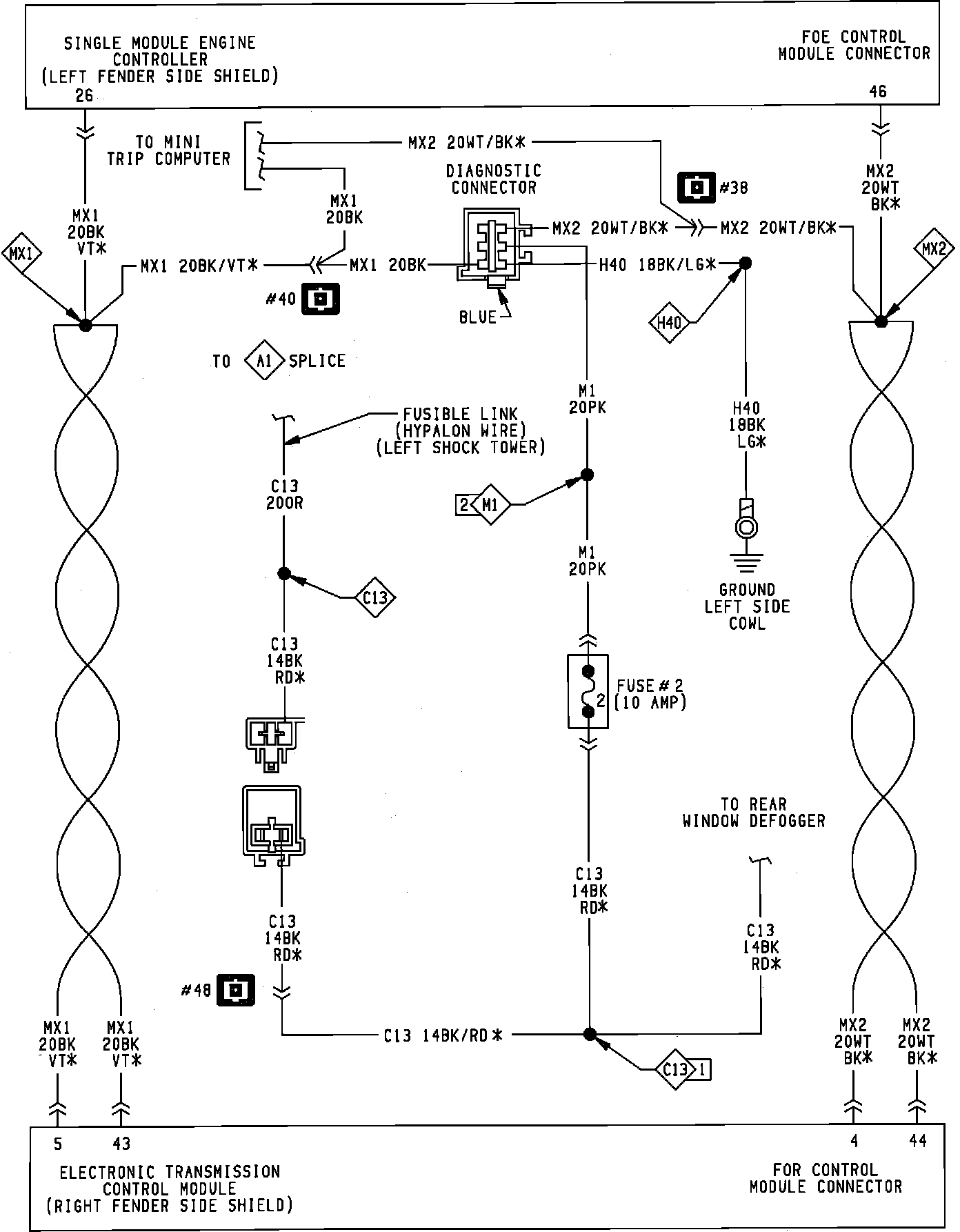

Electronic Transmission Wiring Circuit:

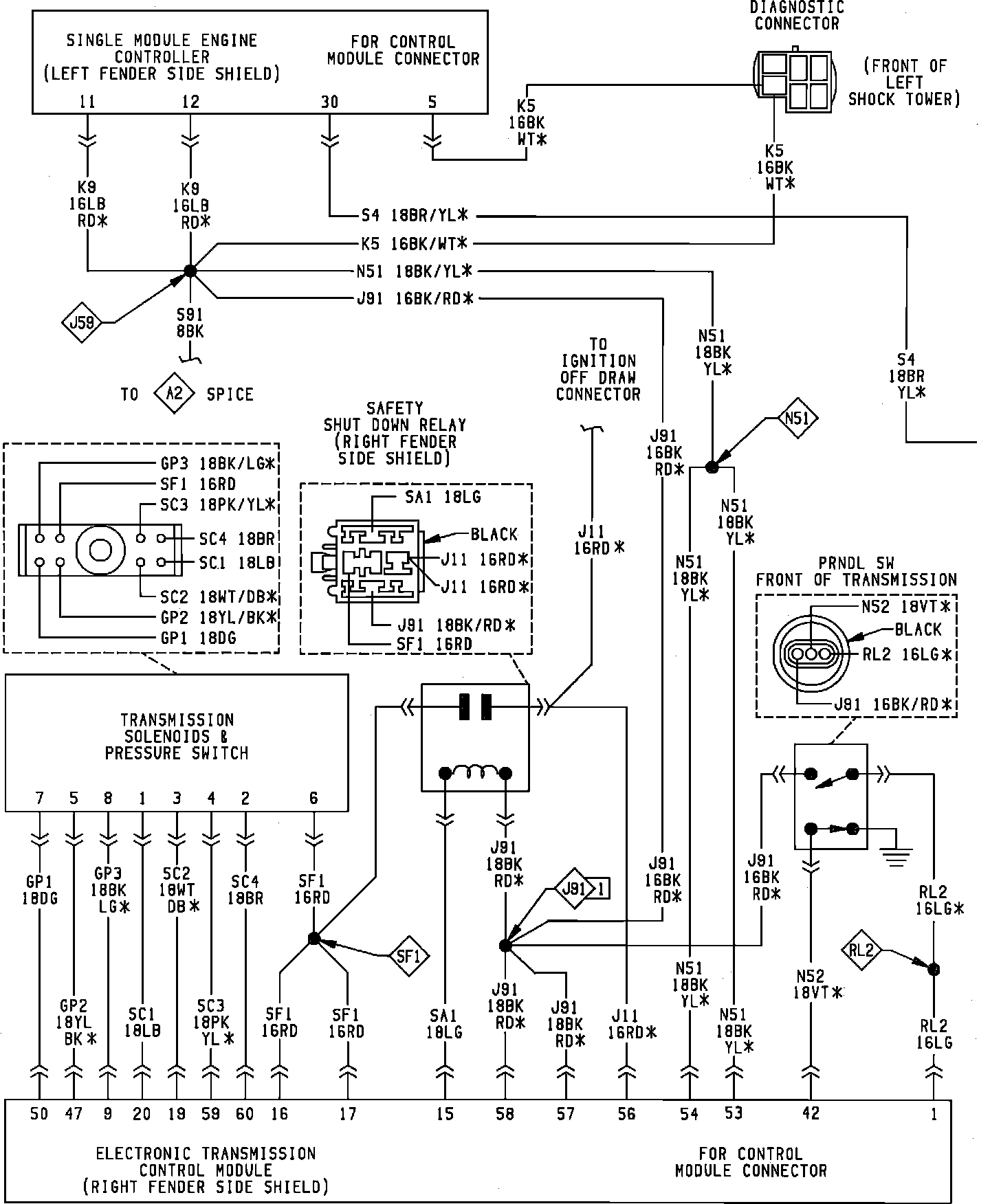

Electronic Transmission Wiring Circuit:

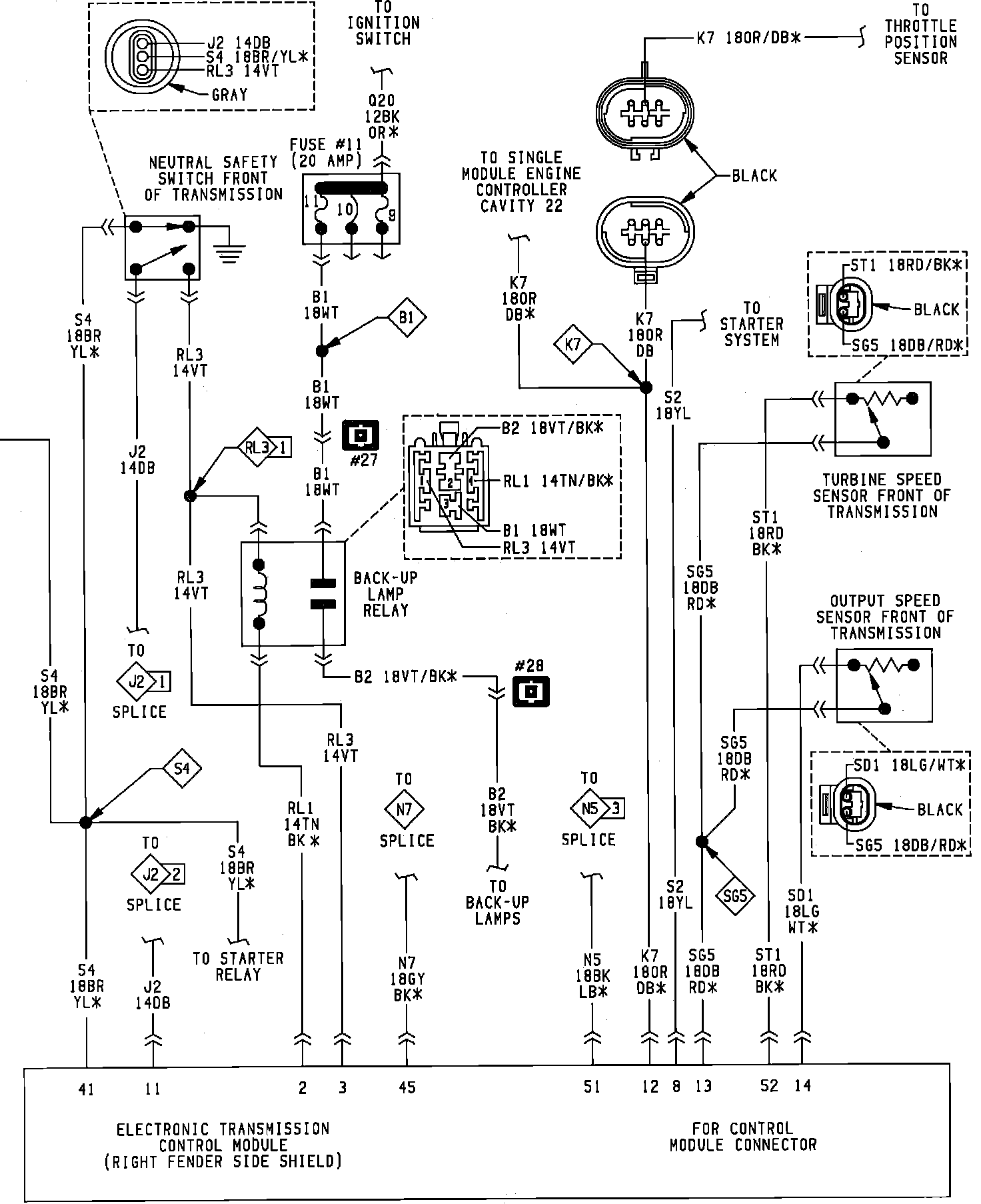

Electronic Transmission Wiring Circuit:
