Turn Signals

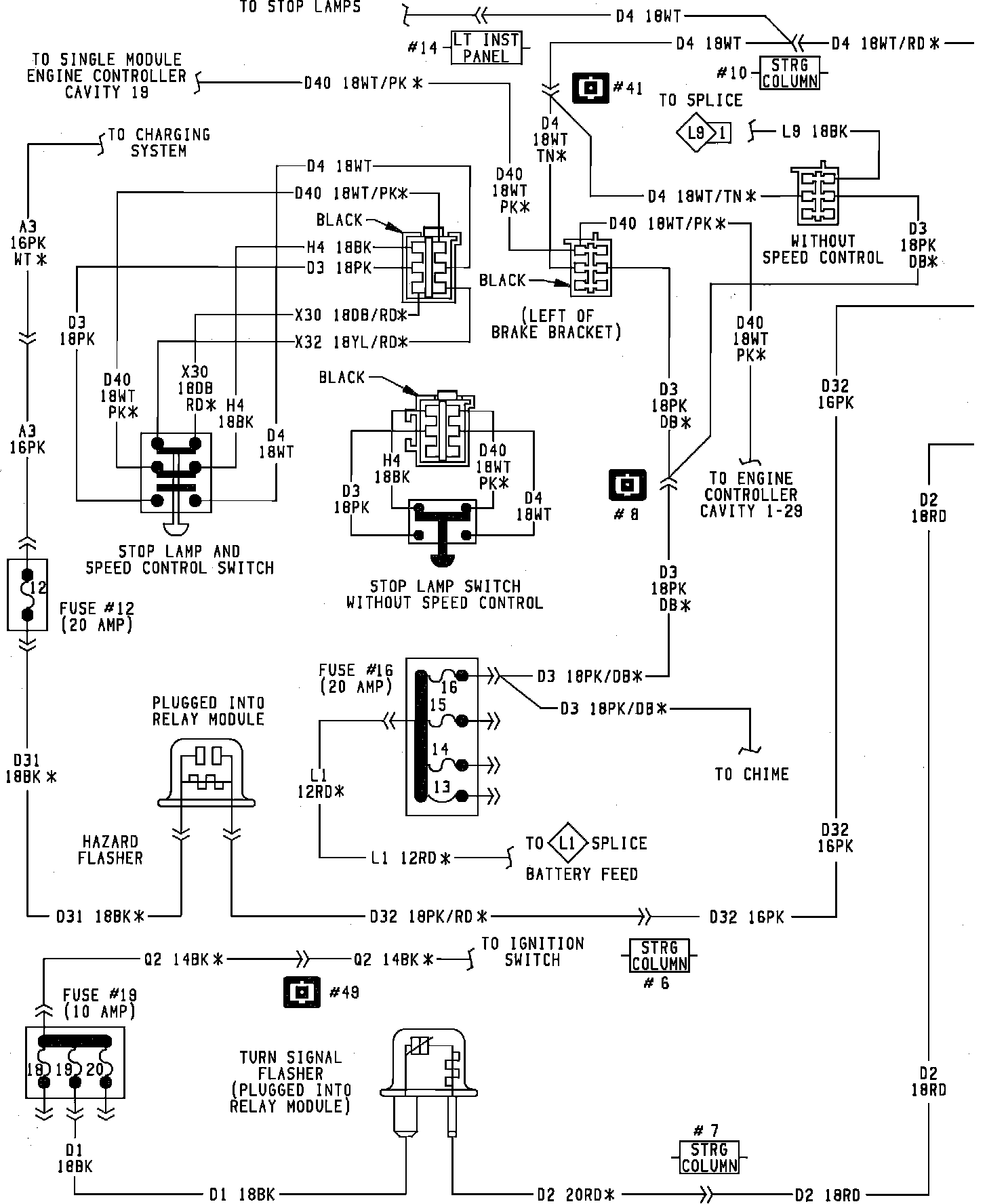

Hazard Flasher, Stop & Turn Lamp Wiring Circuit:

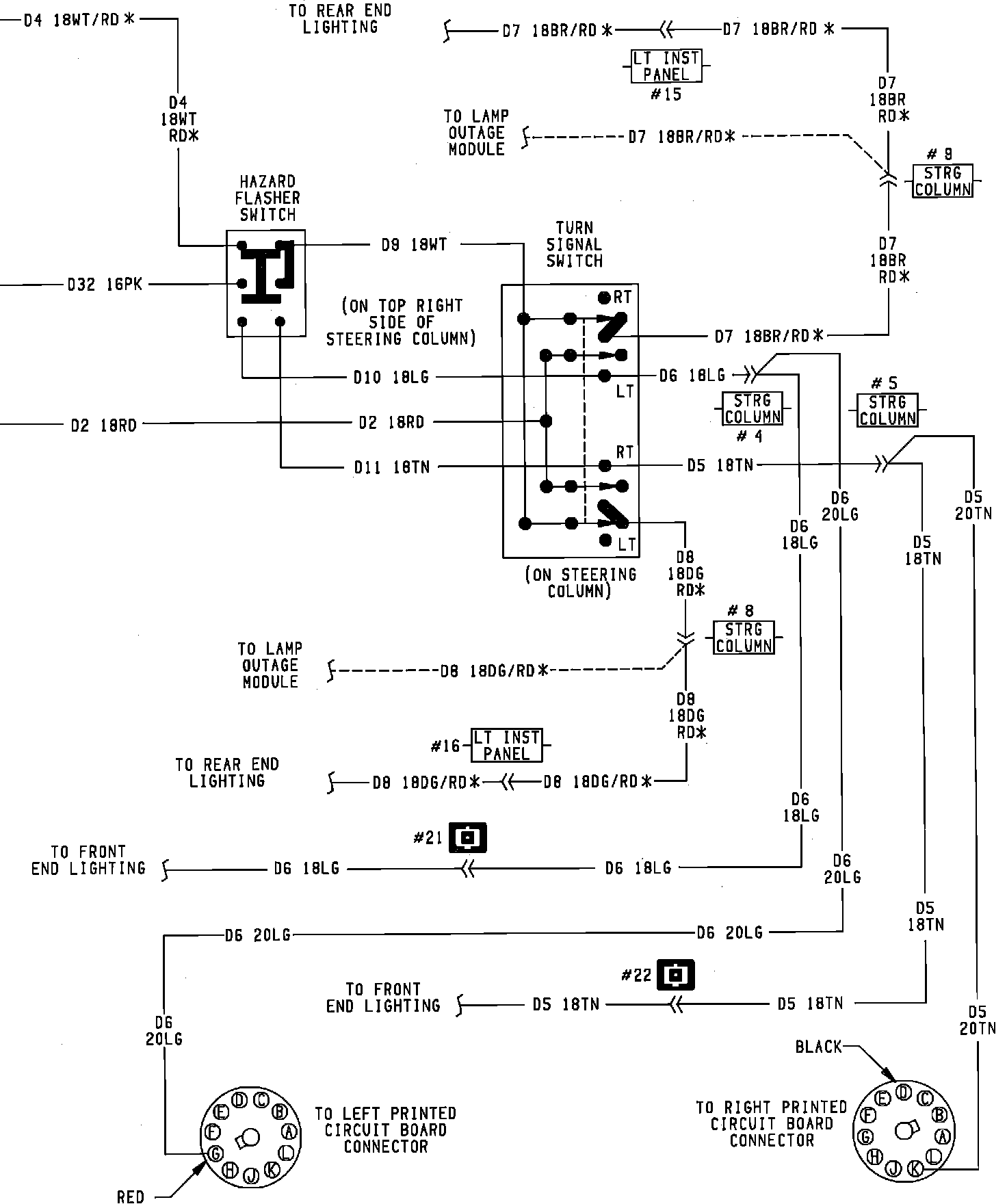

Hazard Flasher, Stop & Turn Lamp Wiring Circuit:
