A/C & Heater (Engine Compartment)
A/C & Heater (Engine Compartment)

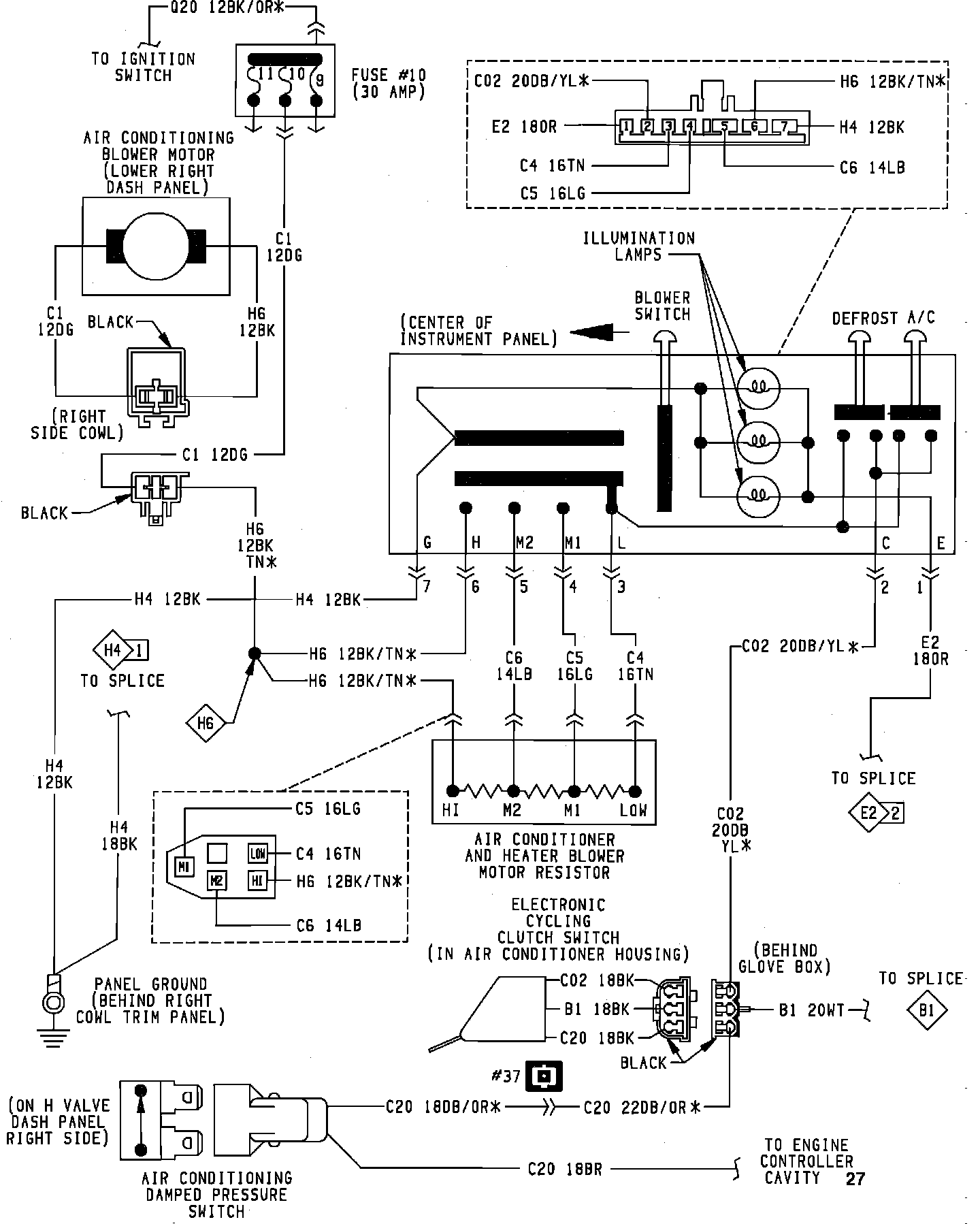

Air Conditioning Wiring Circuit:
