Initial Inspection and Diagnostic Overview

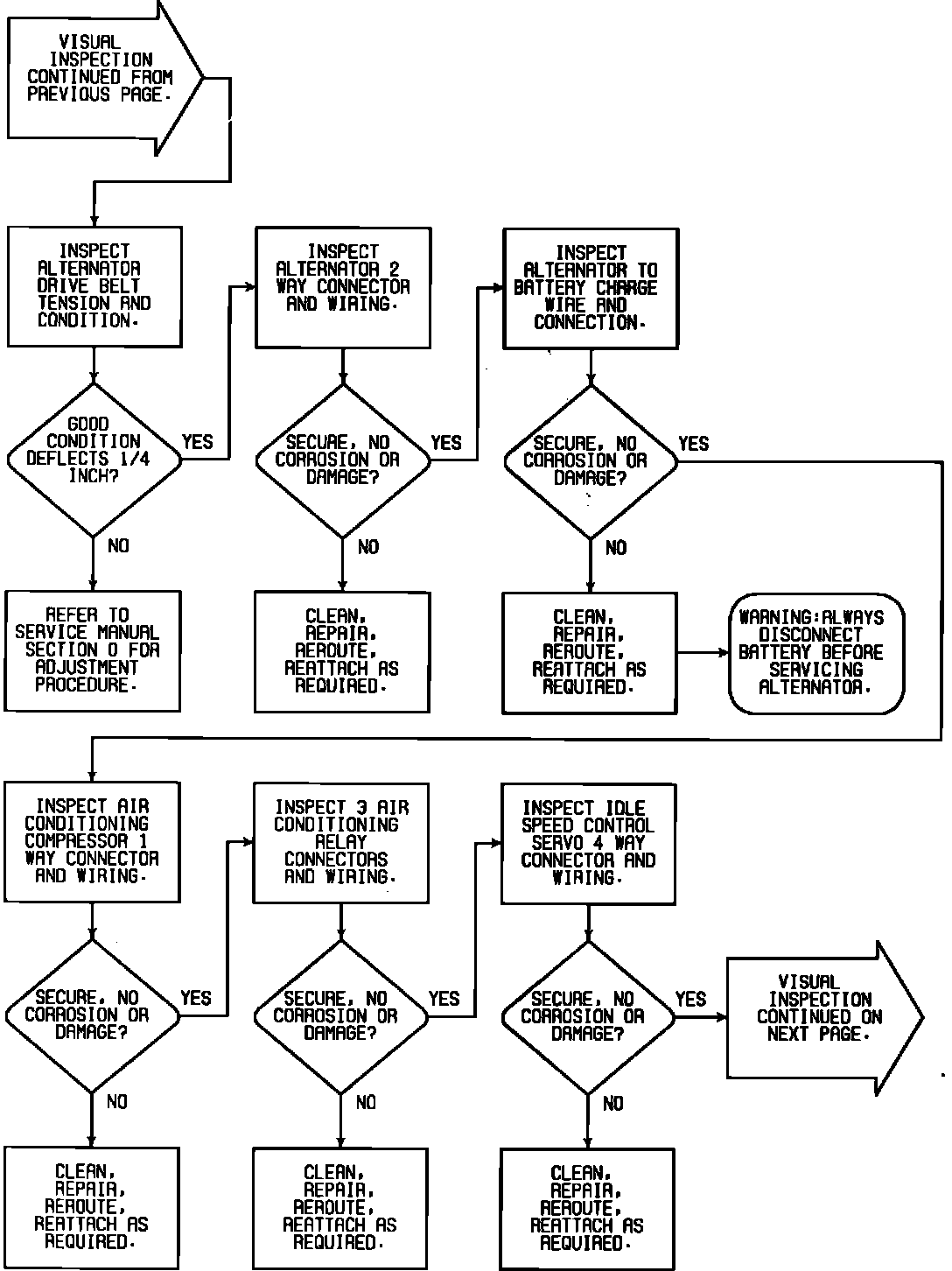

Visual Inspection Chart (Part 1 of 8). 1989 4-89.6/1.5L:

Part 1 of 8

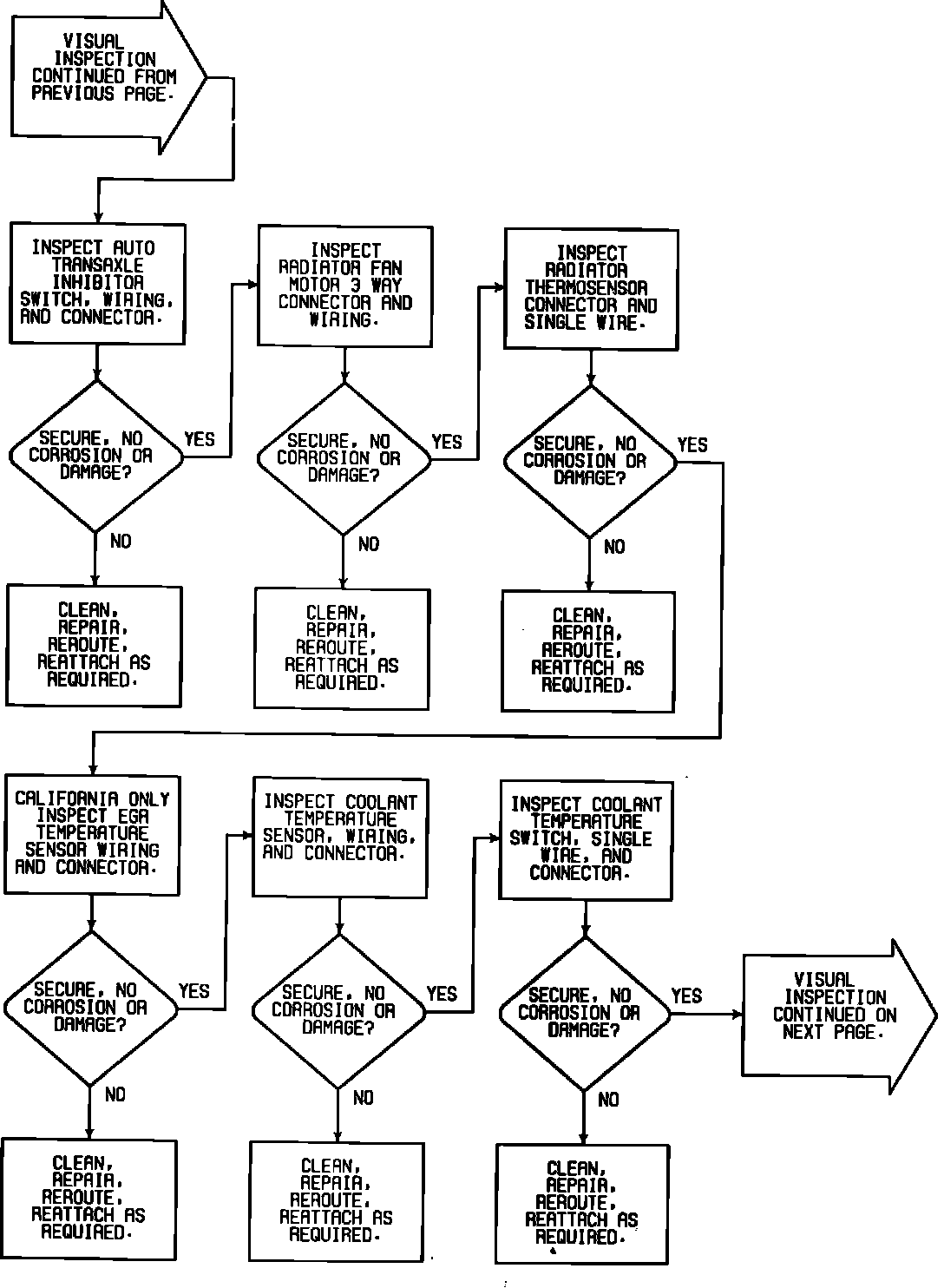

Visual Inspection Chart (Part 2 of 8). 1989 4-89.6/1.5L:

Part 2 of 8

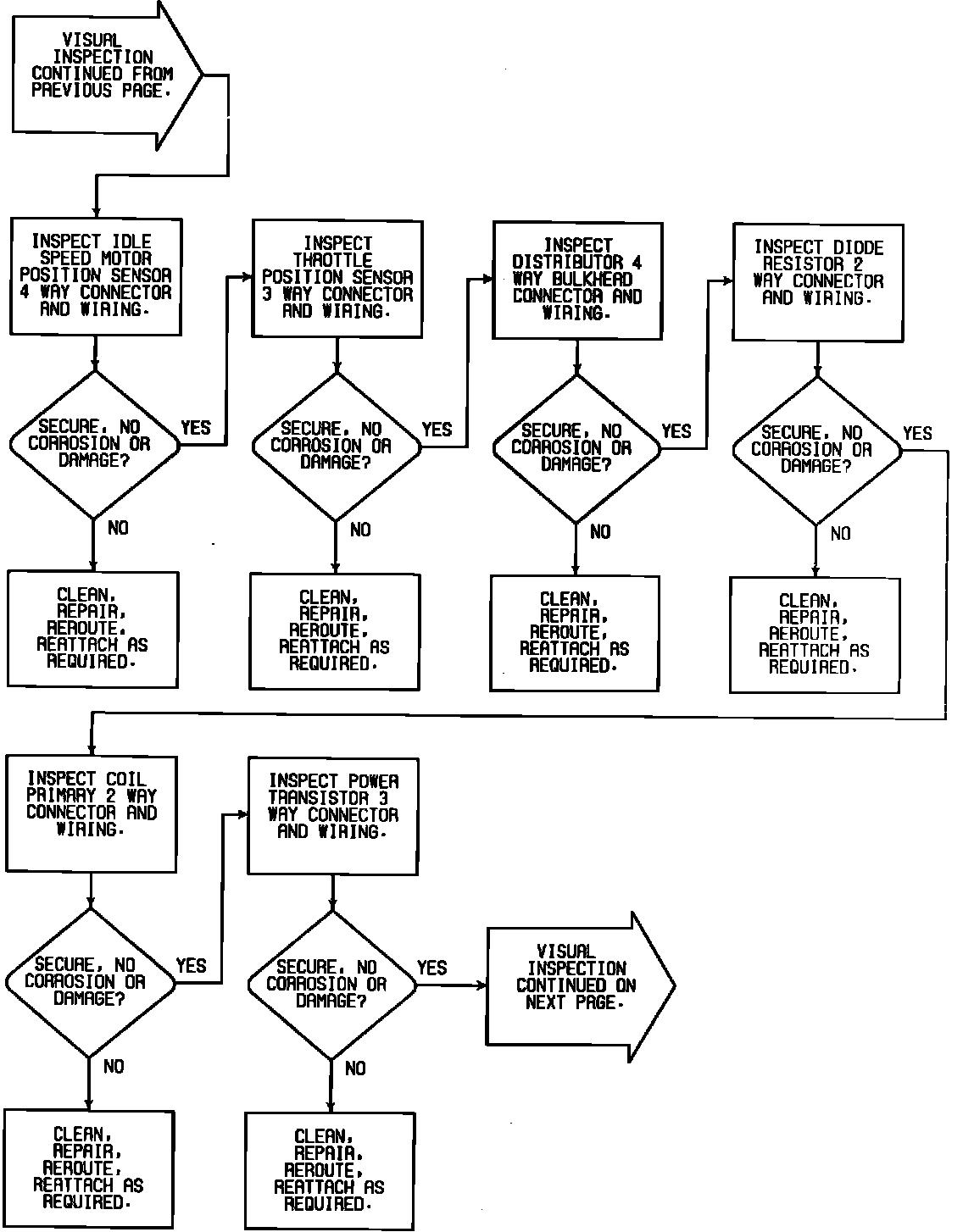

Visual Inspection Chart (Part 3 of 8). 1989 4-89.6/1.5L:

Part 3 of 8

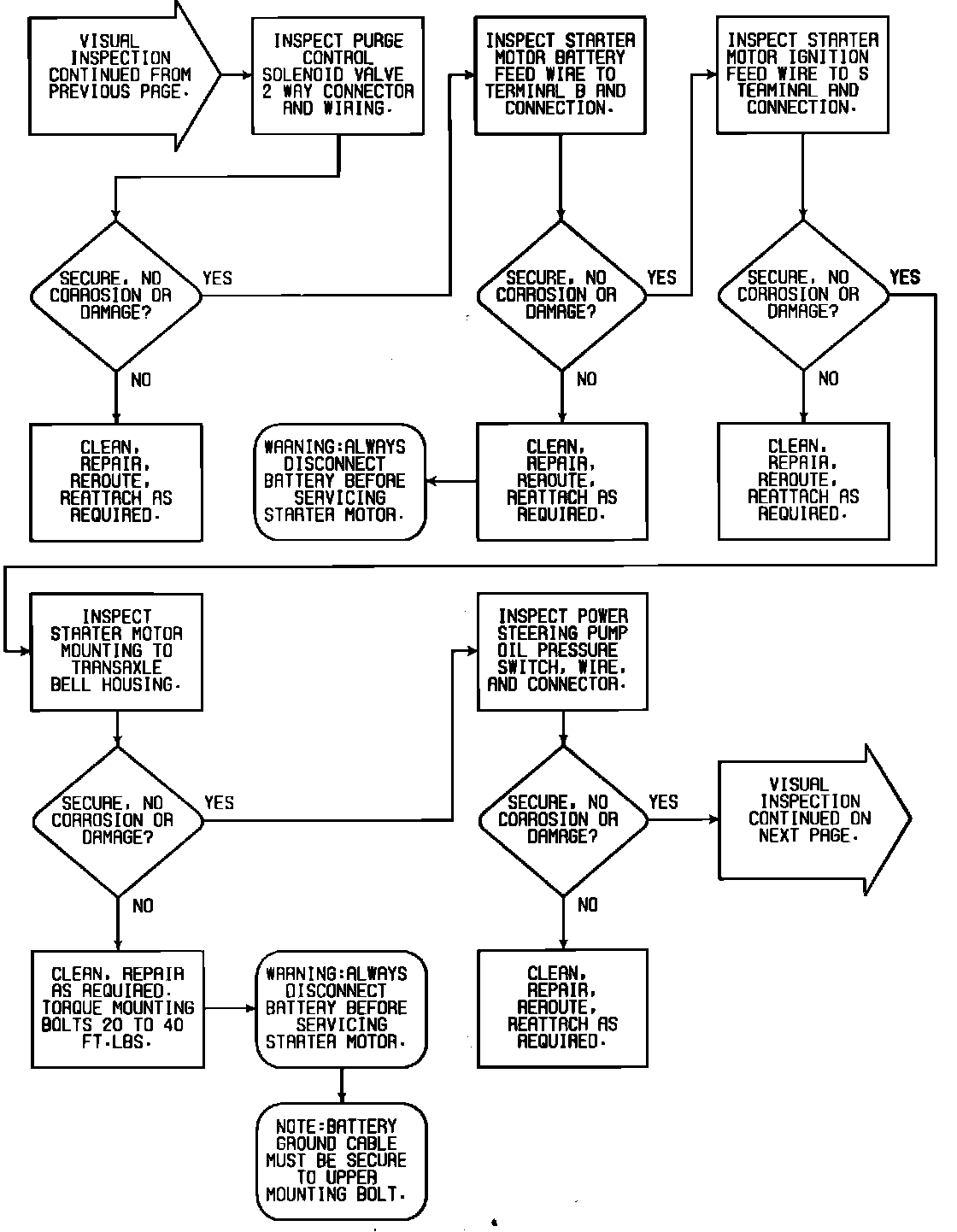

Visual Inspection Chart (Part 4 of 8). 1989 4-89.6/1.5L:

Part 4 of 8

Visual Inspection Chart (Part 5 of 8). 1989 4-89.6/1.5L:

Part 5 of 8

Visual Inspection Chart (Part 6 of 8). 1989 4-89.6/1.5L:

Part 6 of 8

Visual Inspection Chart (Part 7 of 8). 1989 4-89.6/1.5L:

Part 7 of 8

Visual Inspection Chart (Part 8 of 8). 1989 4-89.6/1.5L:

Part 8 of 8
