Chart No. 5, Actuator Wiring Circuit
Chart No. 5, Actuator Wiring Circuit

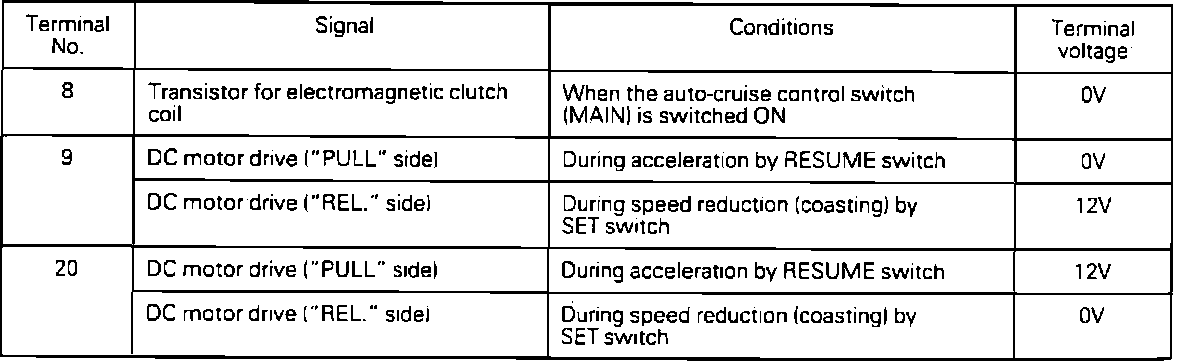

Fig. 23 Check Chart No. 5, Actuator Wiring Circuit:
