Home >> Plymouth >> 1989 >> Colt L4-1753cc 1.8L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Door Locks >> Part 1 of 2

Part 1 of 2

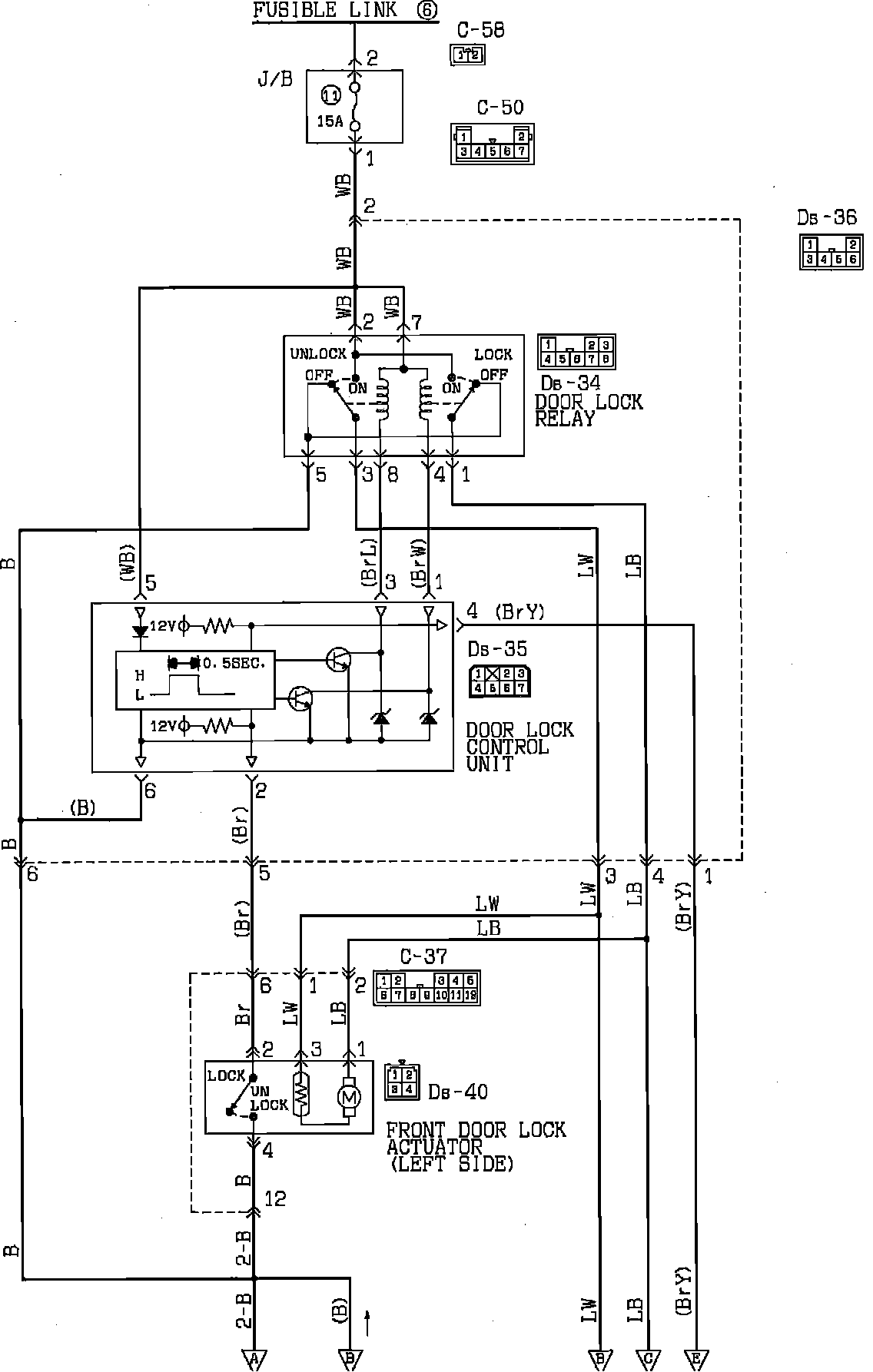

Power Door Locks:
