System Diagram

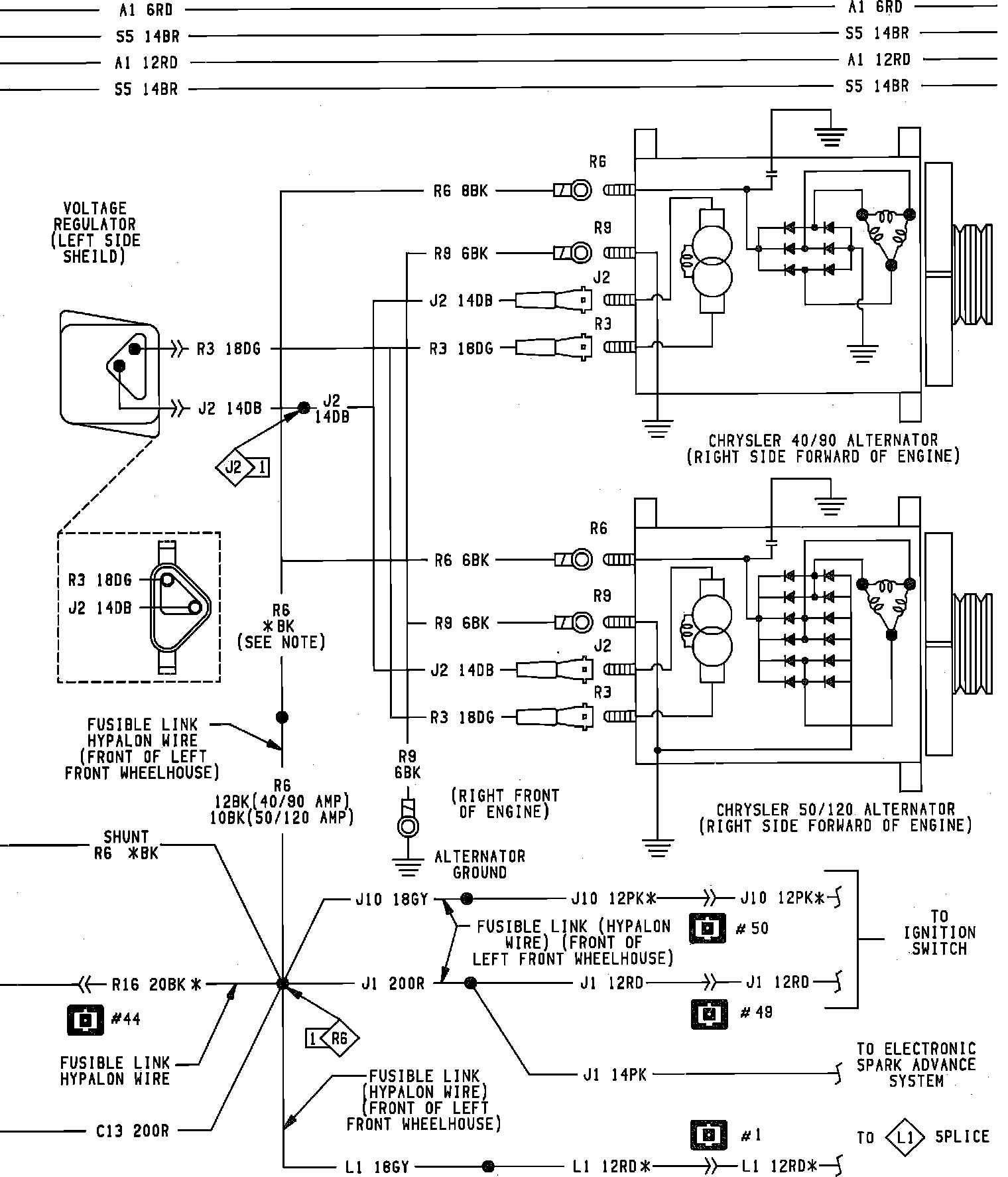

Charging System, Ignition Switch & Starting System, Part 1 of 3:

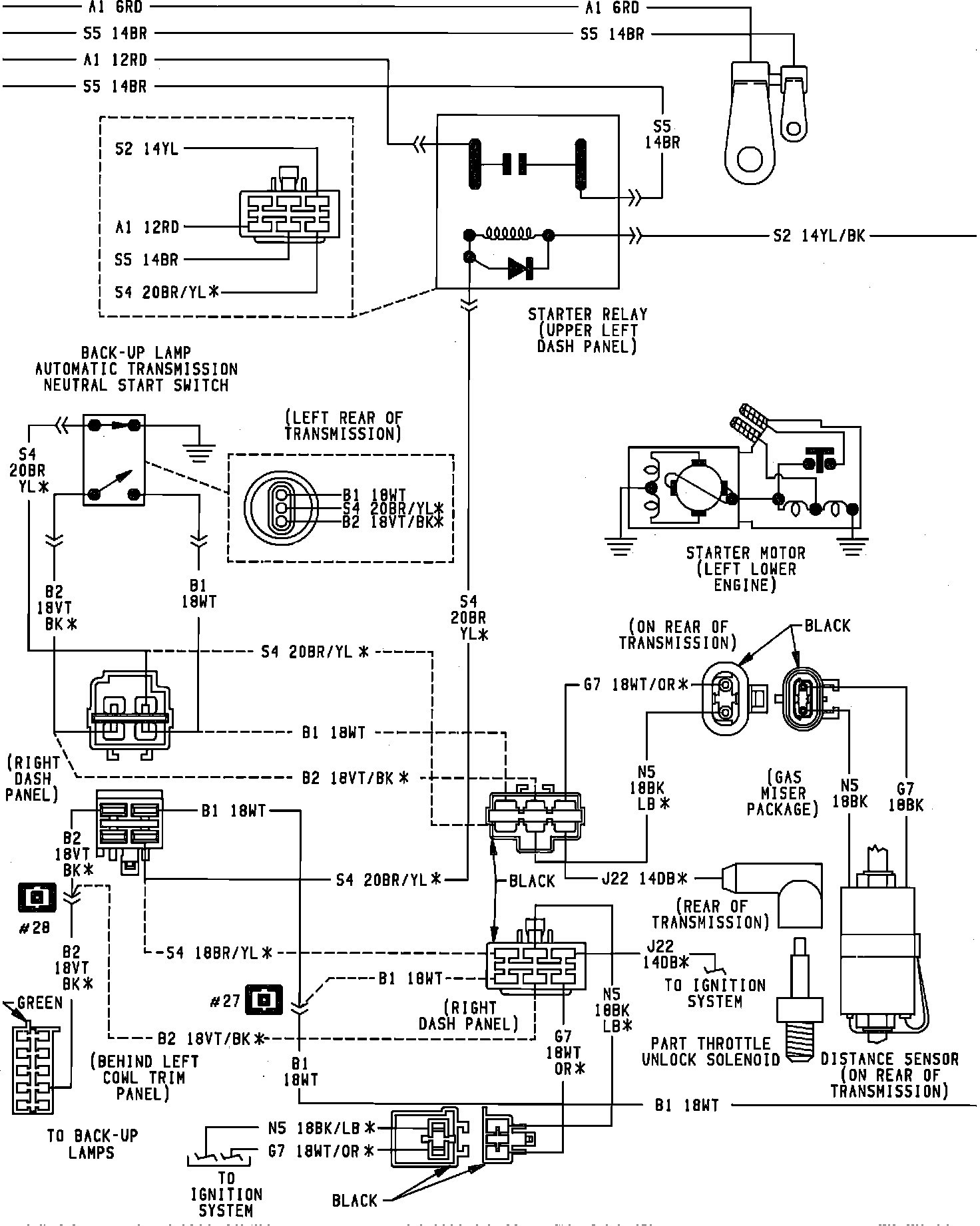

Charging System, Ignition Switch & Starting System, Part 2 of 3:



Charging System, Ignition Switch & Starting System, Part 3 of 3:
