Grand Fury/Salon V8-318 5.2L VIN P 2-bbl
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Battery Accessory
Battery Accessory

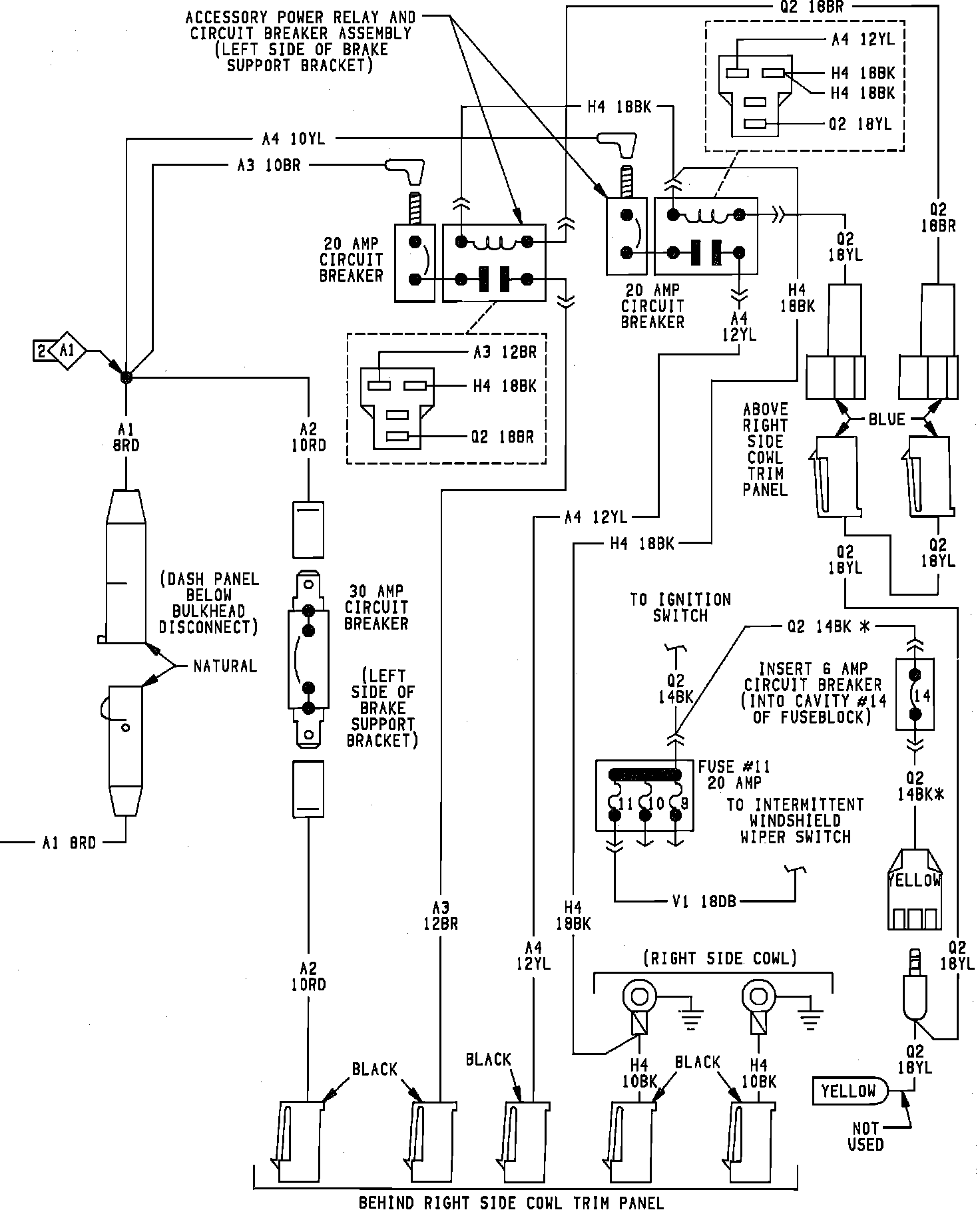

Battery Accessory:

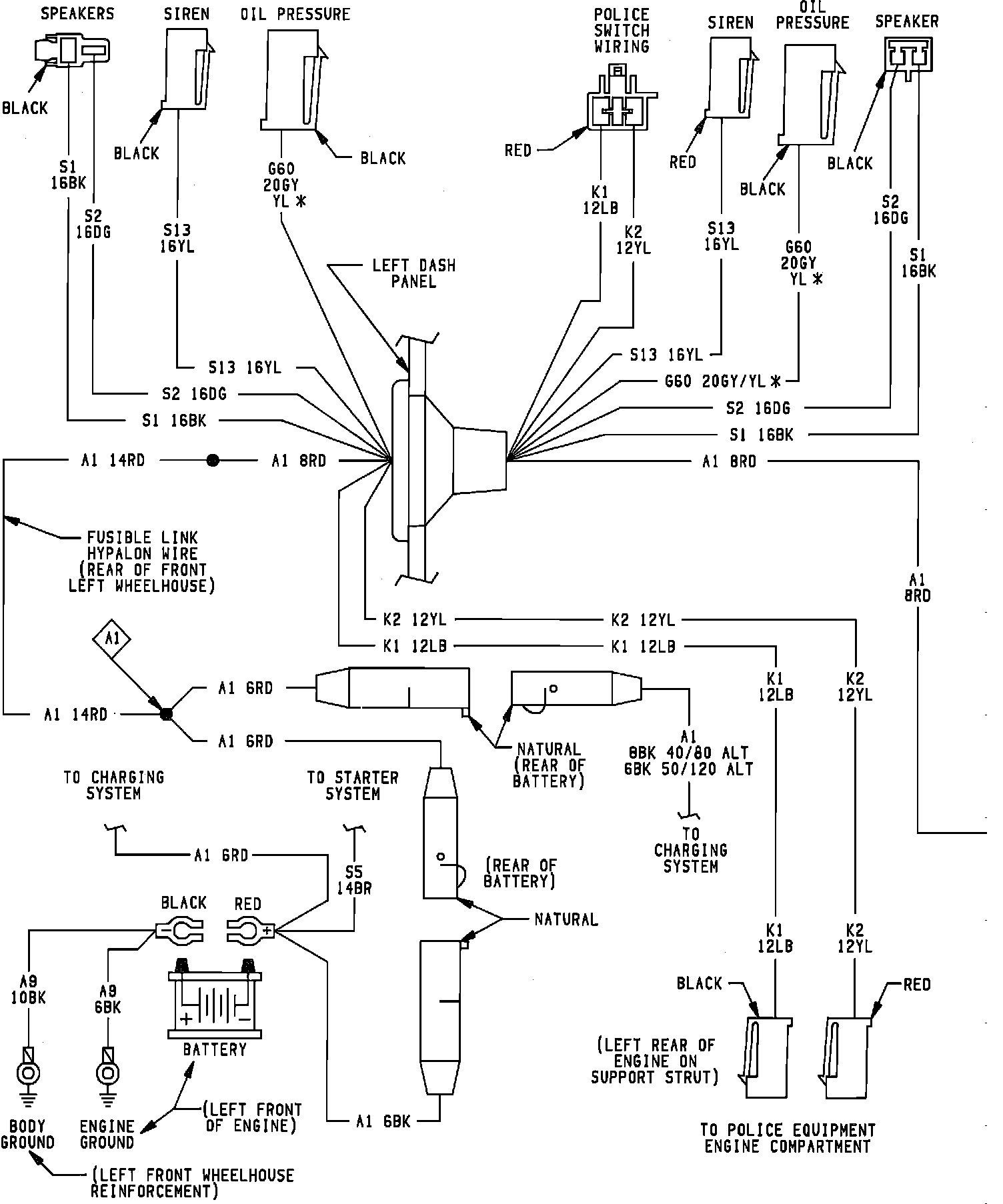

Battery Accessory:
