Rear Axle Service

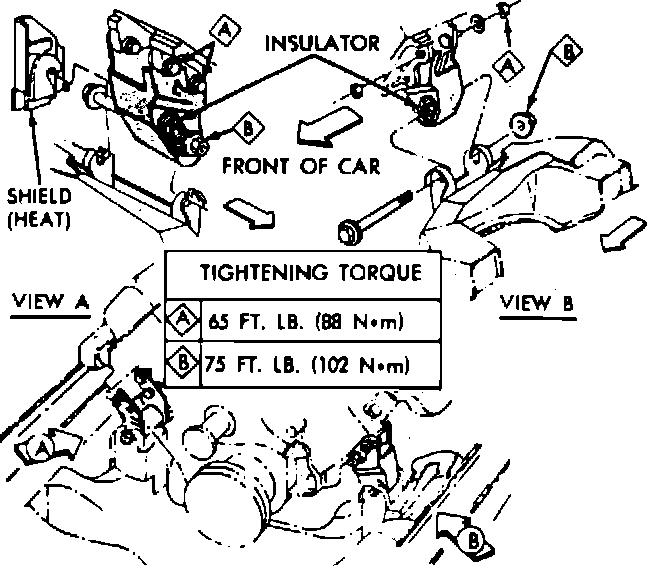

Fig. 1 Exploded View Of Engine Mounts:

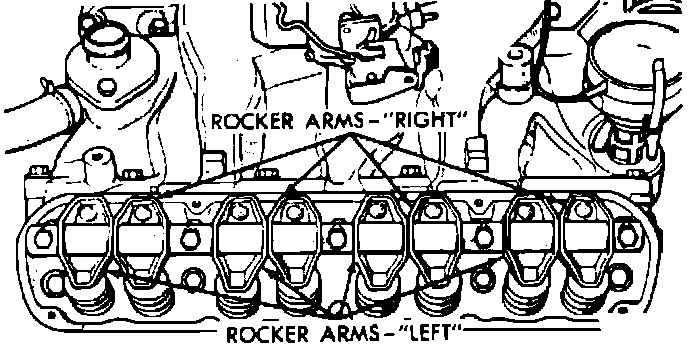

Fig. 2 Rocker Arm Identification:

Fig. 3 Rocker Arm And Shaft Assembly Installed:

1. Raise and support vehicle, then remove wheel assembly and brake drum.
2. Loosen differential housing cover and drain lubricant. Remove cover.
2. Turn differential case to make pinion shaft lock screw accessible and remove lock screw and shaft.
3. Push axle shaft inward toward center of car and remove C washer from groove in axle shaft.
4. Remove axle shaft from housing, being careful not to damage the axle bearing, which will remain in the housing.
5. The axle bearing and/or seal can now be removed if necessary.
6. Reverse procedure to install.
