Brake Light Switch
Brake Light Switch

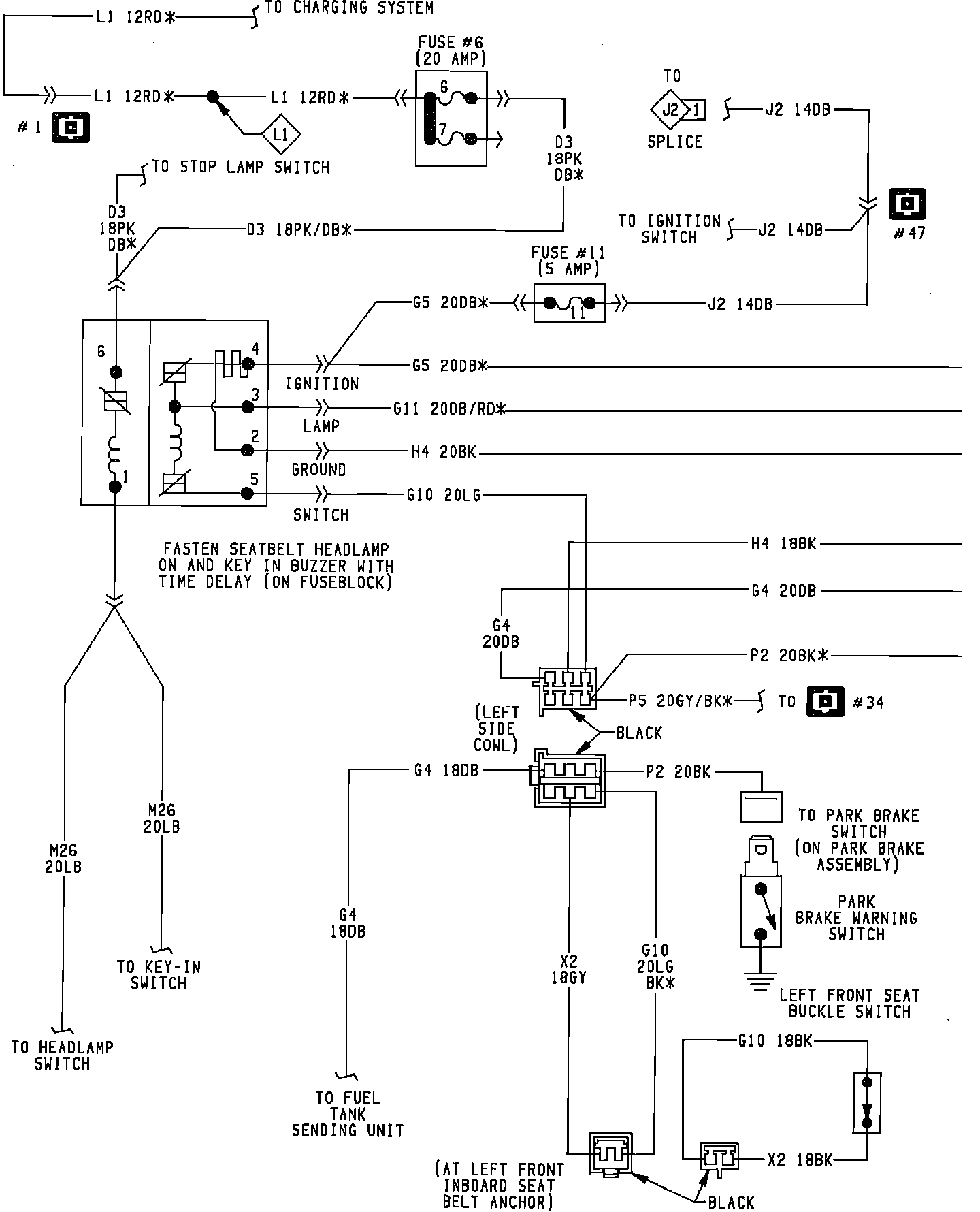

Brakes, Seatbelt Warning & Tachometer System Wiring Curcuit:
Brakes, Seatbelt Warning & Tachometer System Wiring Curcuit:
