Rear Wiper/Washer System
Rear Wiper/Washer System

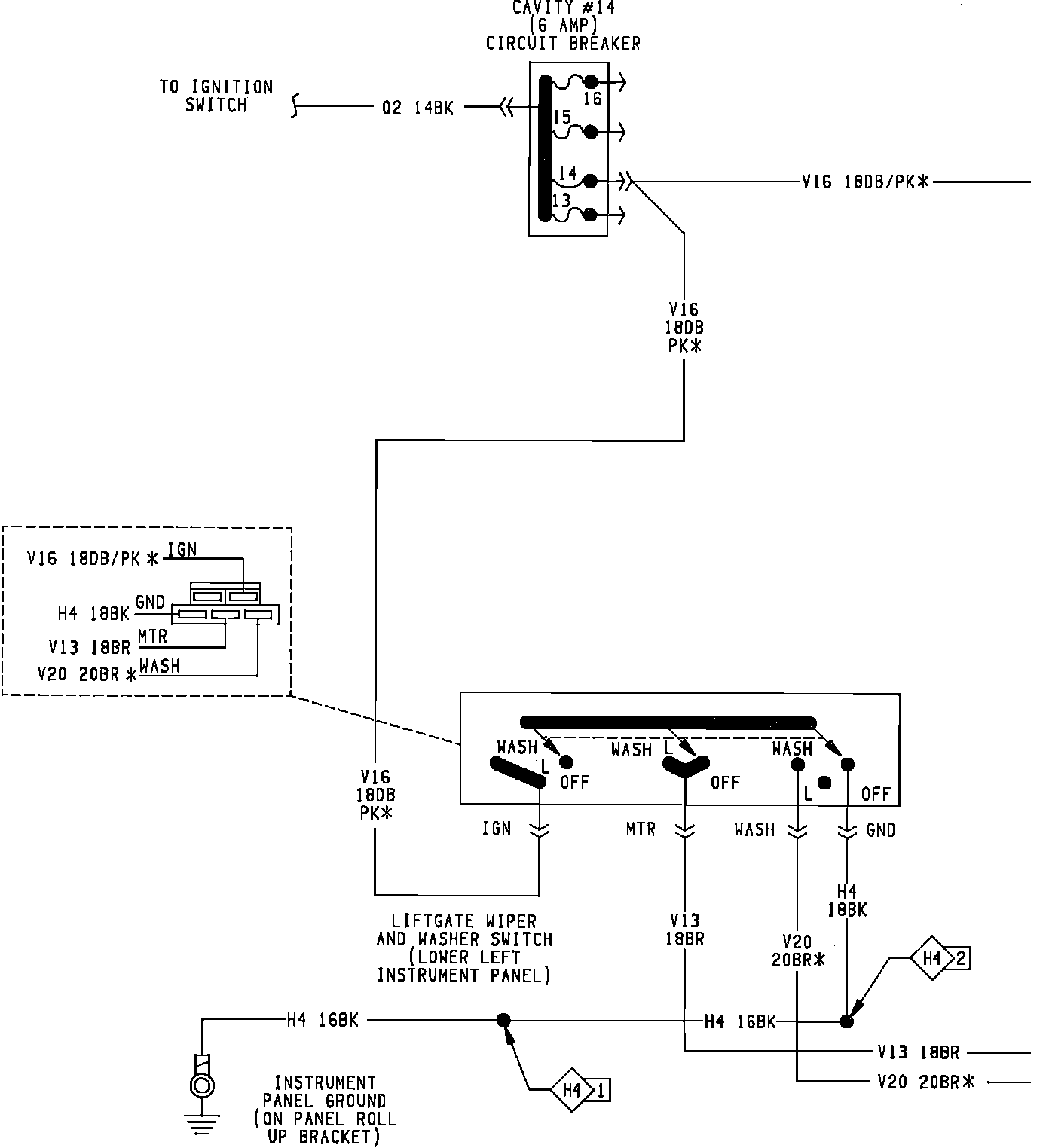

Wiper & Washer Wiring Circuit (Rear):

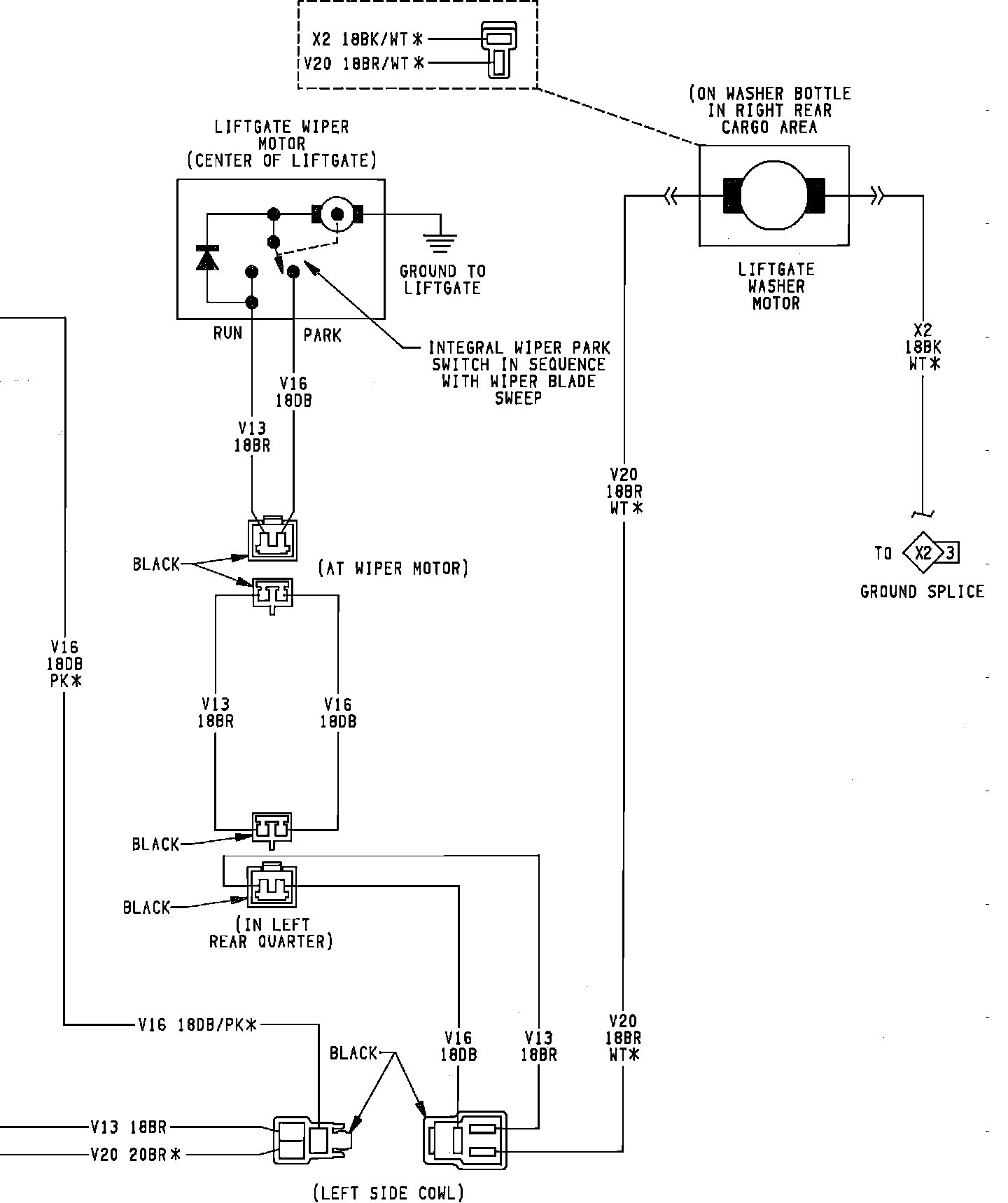

Wiper & Washer Wiring Circuit (Rear):
