Instrument Cluster / Carrier: Service and Repair

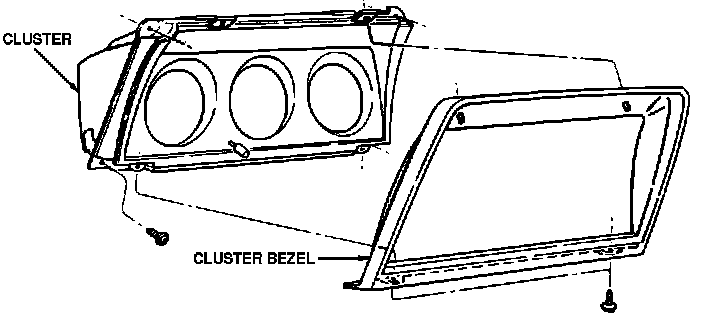

Fig. 20 Instrument Cluster & Bezel. Horizon & Omni:

Disable airbag, refer to Air Bags and Seat Belts/Air Bags (Supplemental Restraint Systems)/Service and Repair. After procedure has been completed, rearm airbag system.

1. Disconnect battery ground cable.
2. Remove two lower cluster bezel retaining screws.
3. Allow bezel to drop slightly, then remove bezel.
4. Remove four screws securing instrument cluster and pull cluster away from dash.
5. Disconnect electrical connectors and speedometer cable, then remove cluster.
6. Reverse procedure to install.
