System Diagram

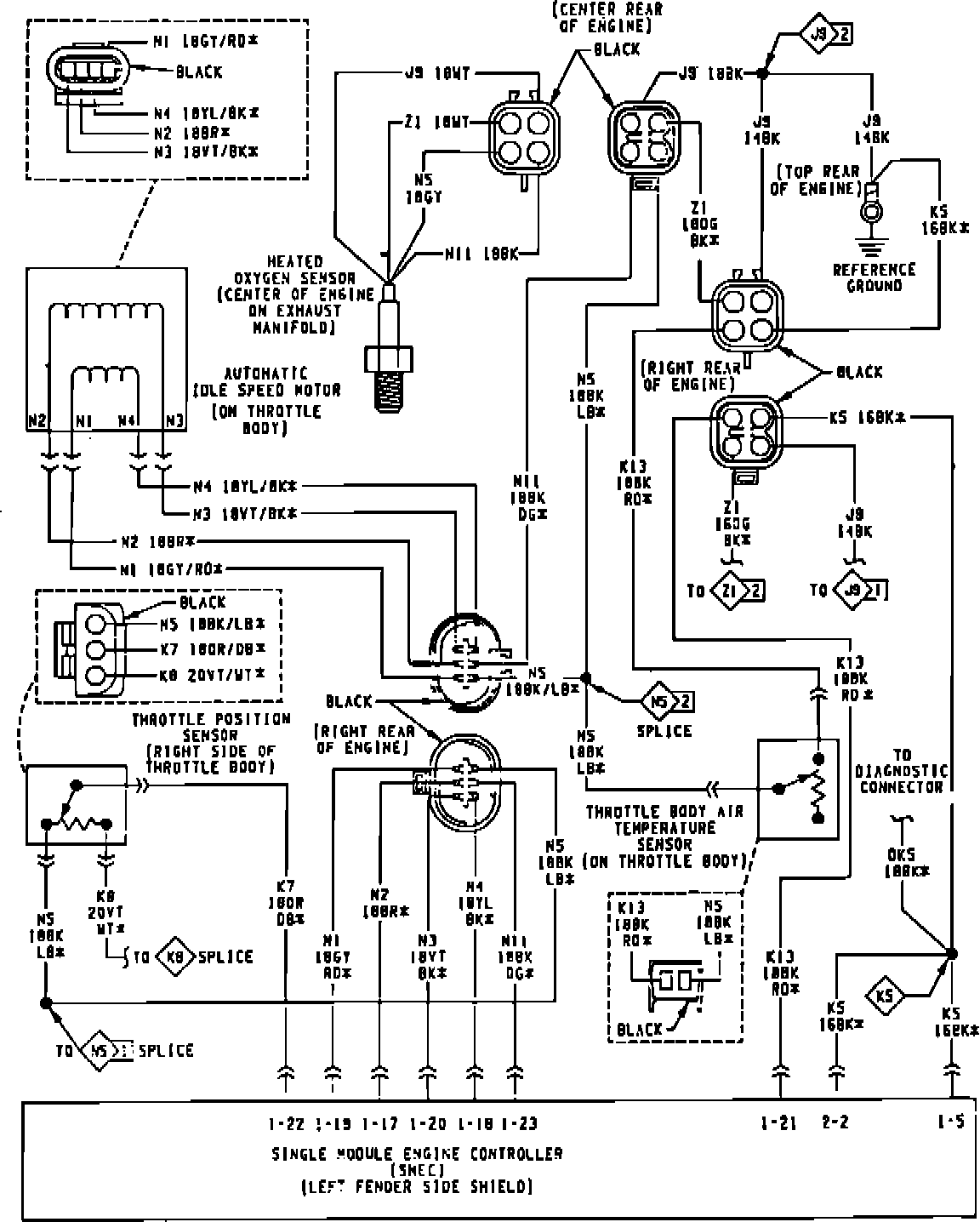

Single point fuel injection system wiring diagram (Part 1 of 5). 1989:

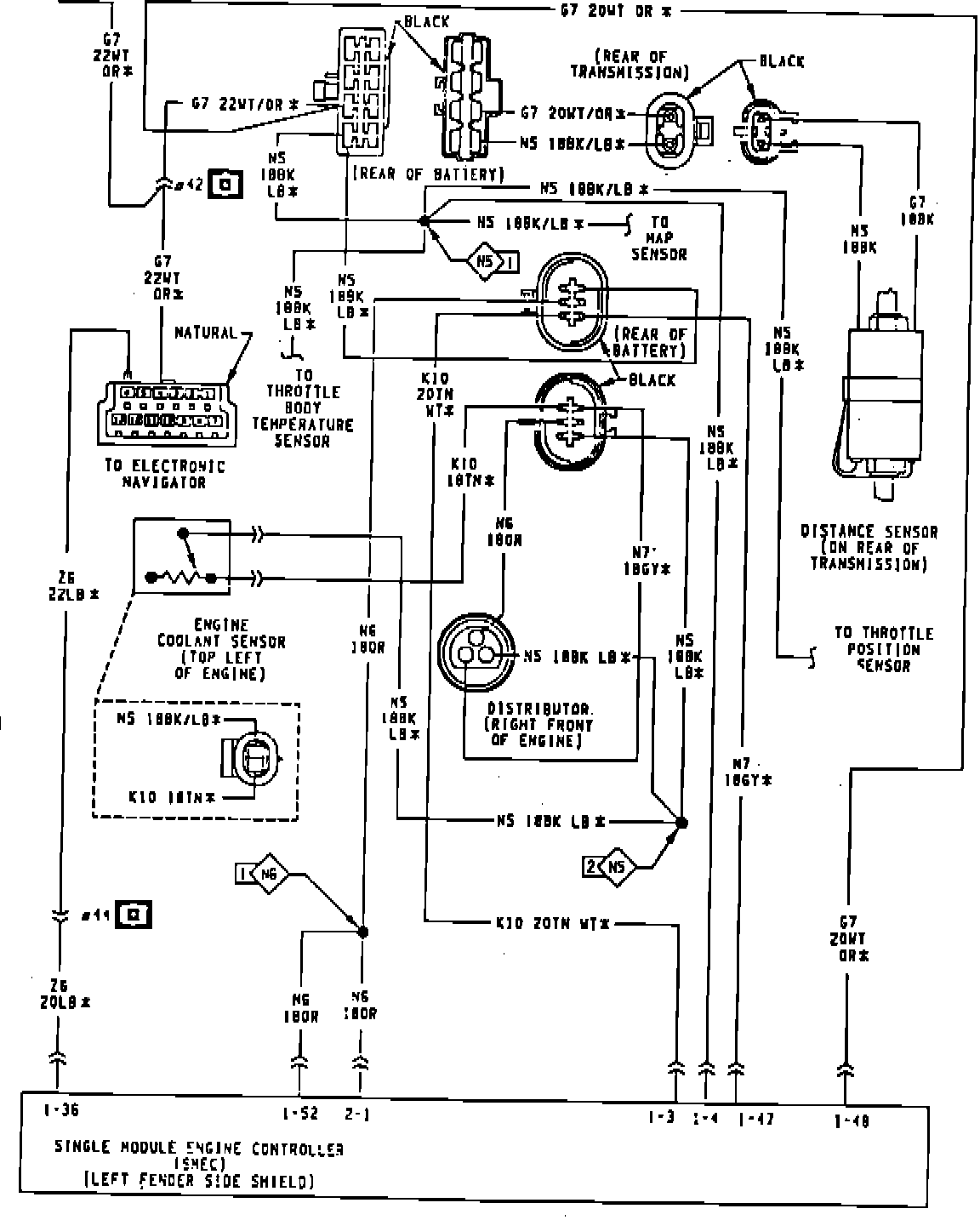

Single point fuel injection system wiring diagram (Part 2 of 5). 1989:

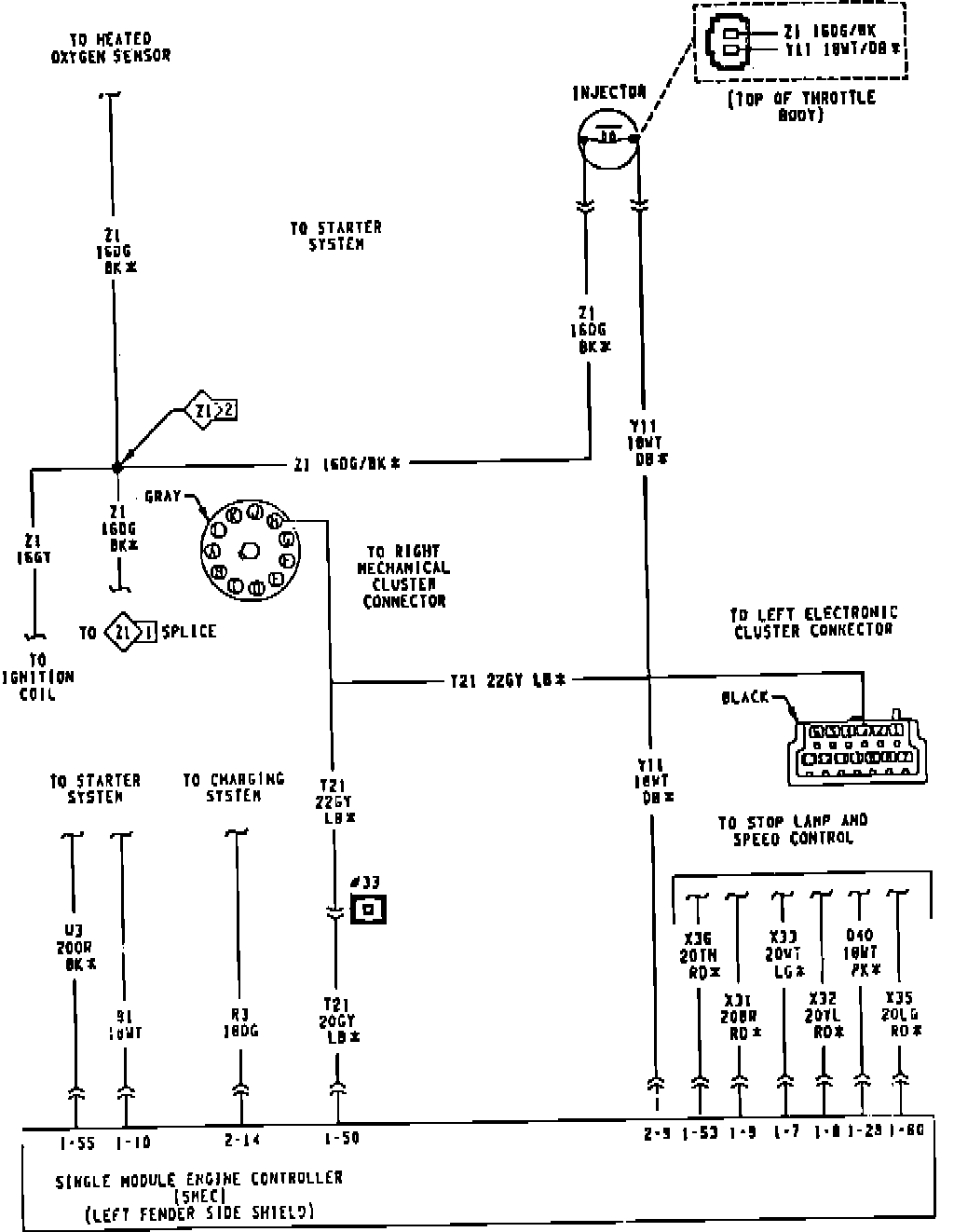

Single point fuel injection system wiring diagram (Part 3 of 5). 1989:

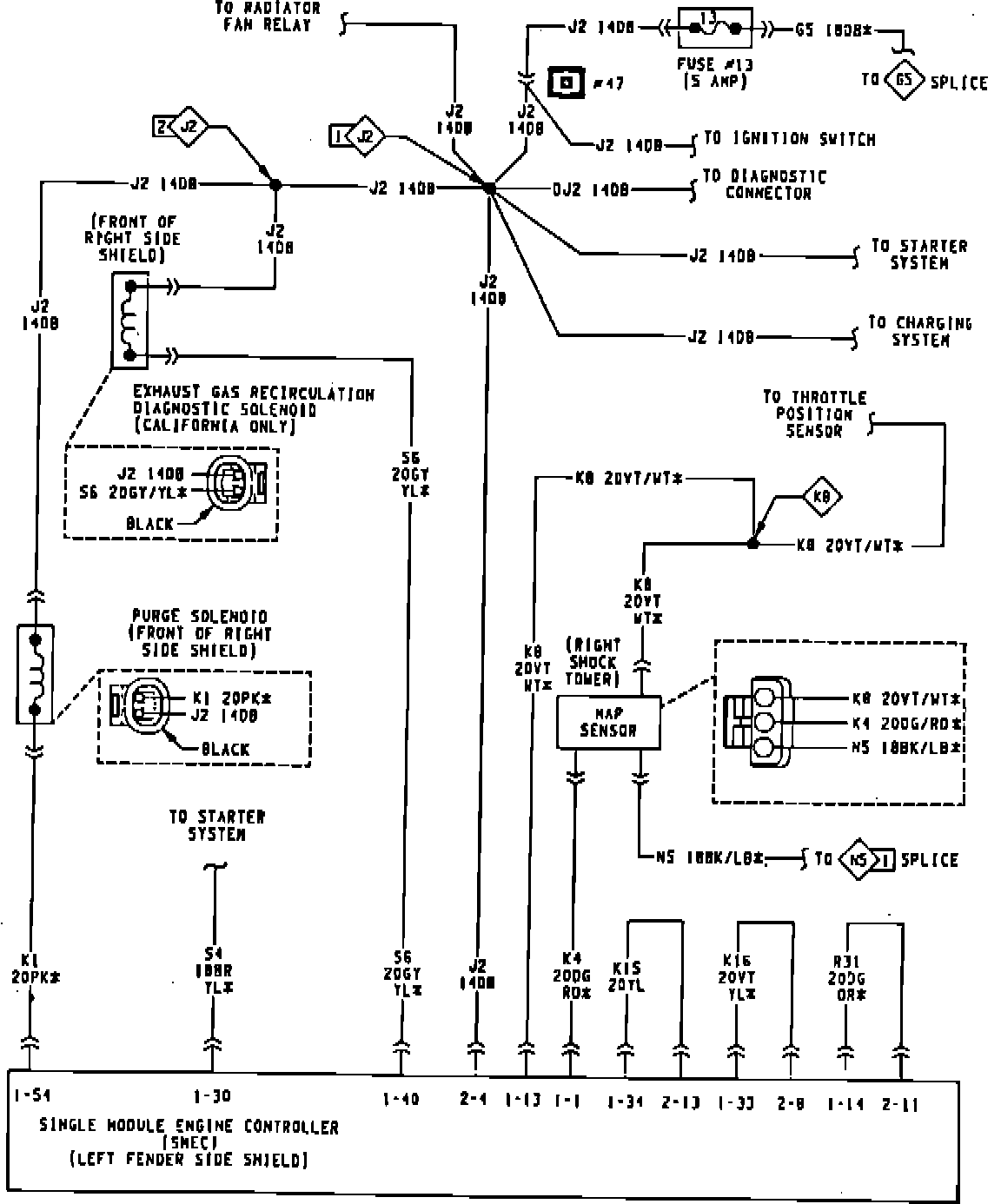

Single point fuel injection system wiring diagram (Part 4 of 5). 1989:

Single point fuel injection system wiring diagram (Part 5 of 5). 1989:
