System Diagram

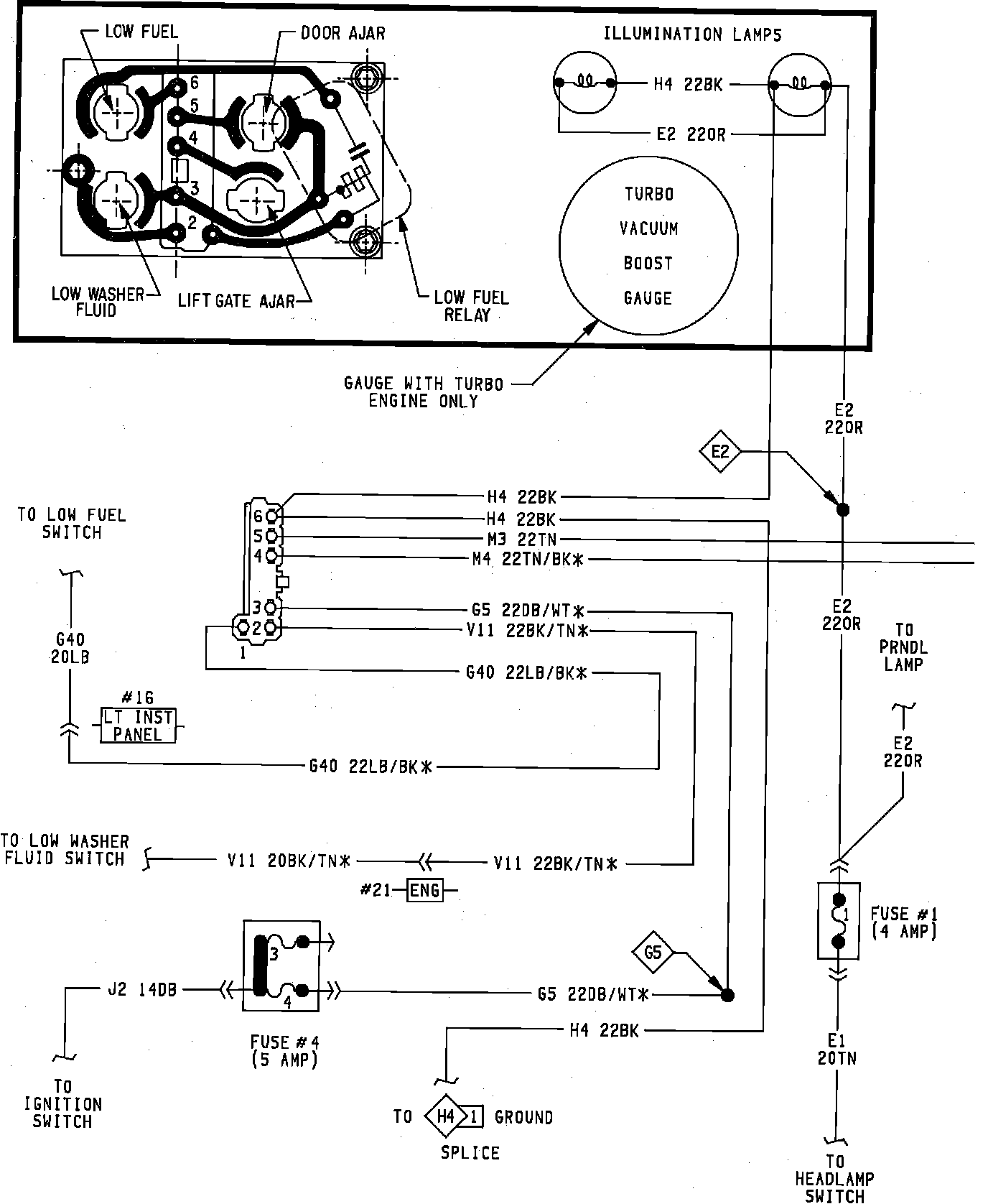

Door Ajar Switch & Turbo Message Center Wiring Circuit:

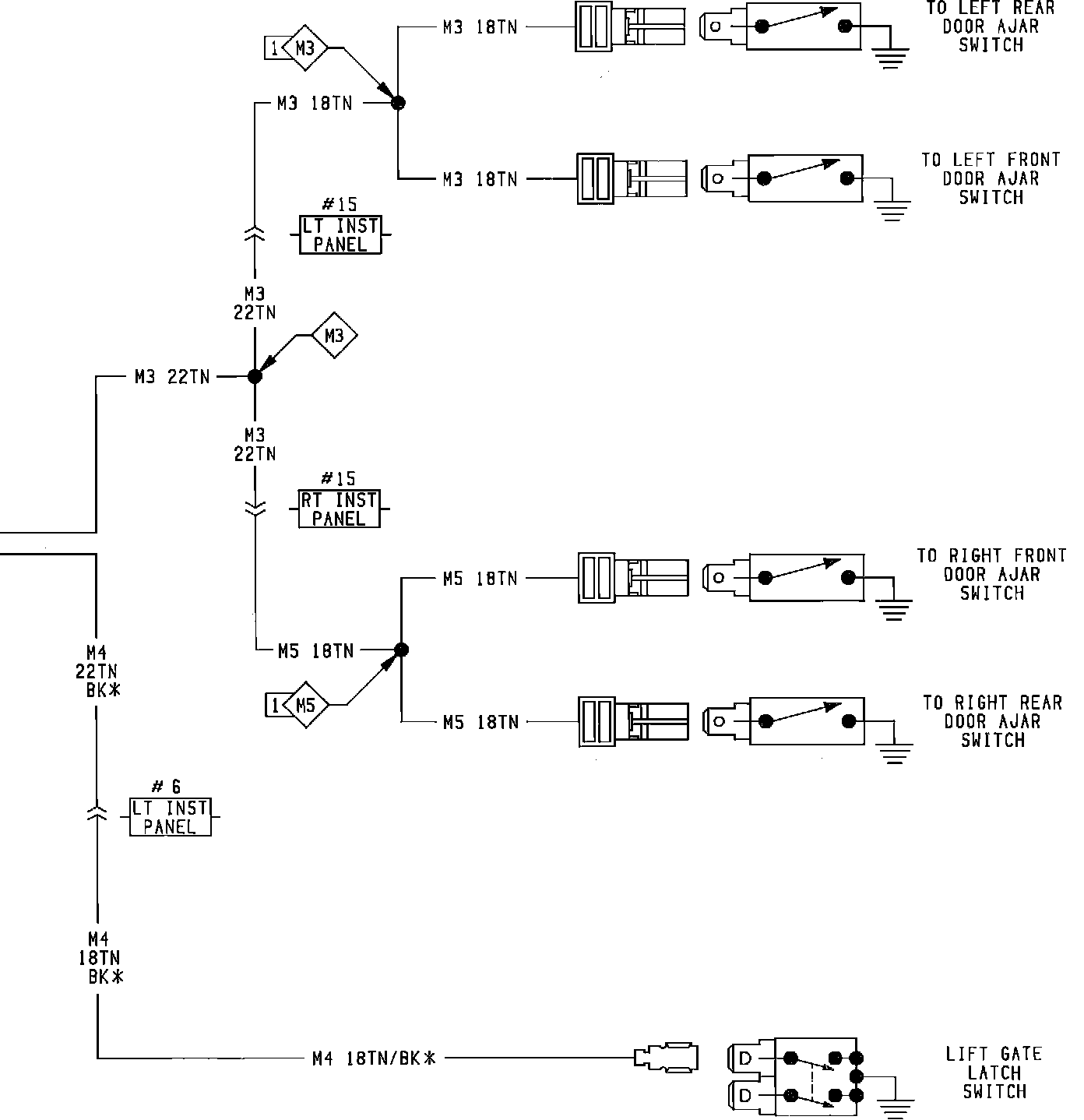

Door Ajar Switch & Turbo Message Center Wiring Circuit:
