Turn Signal Flasher

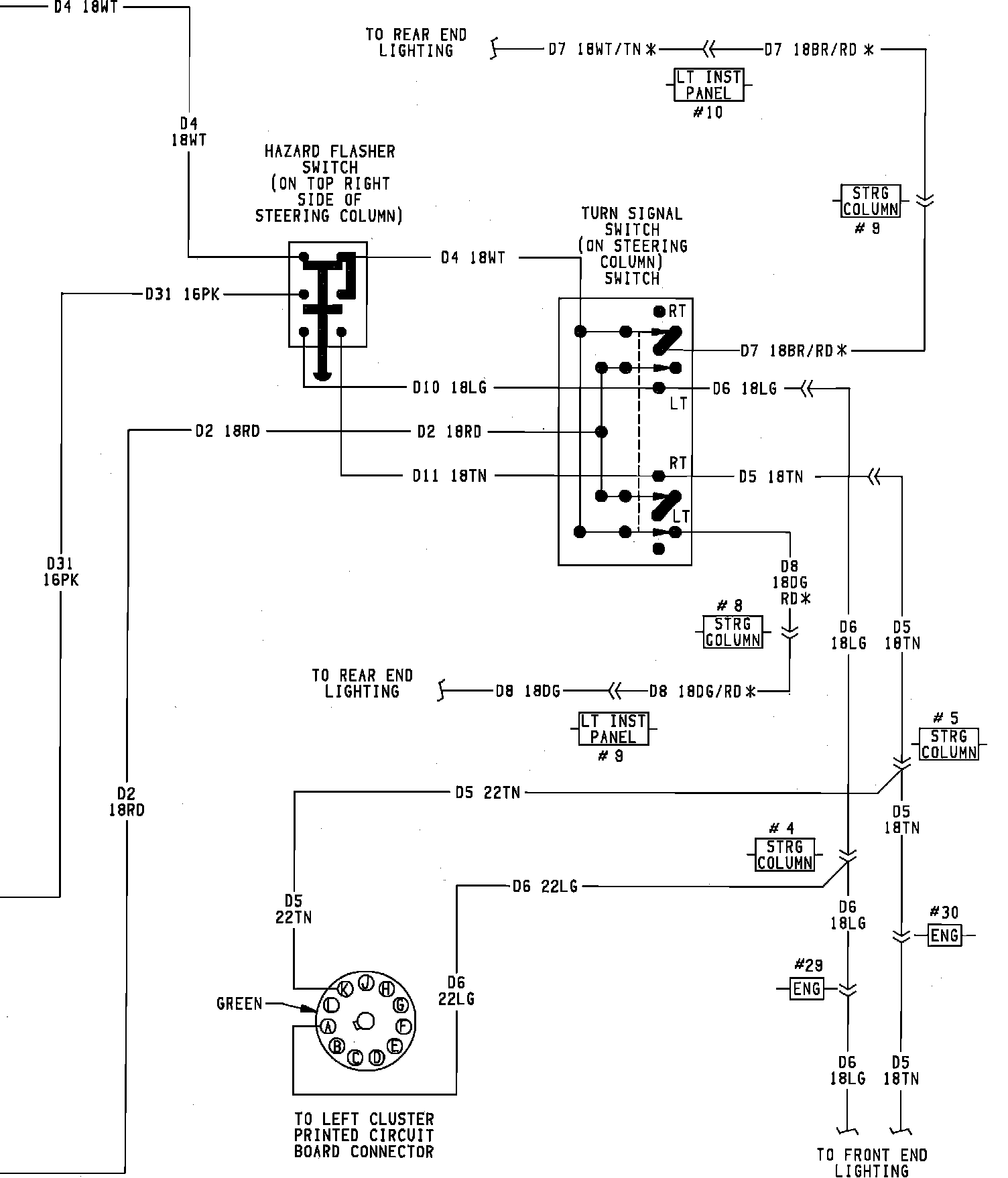

Hazard Flasher & Turn Flasher System Wiring Circuit:

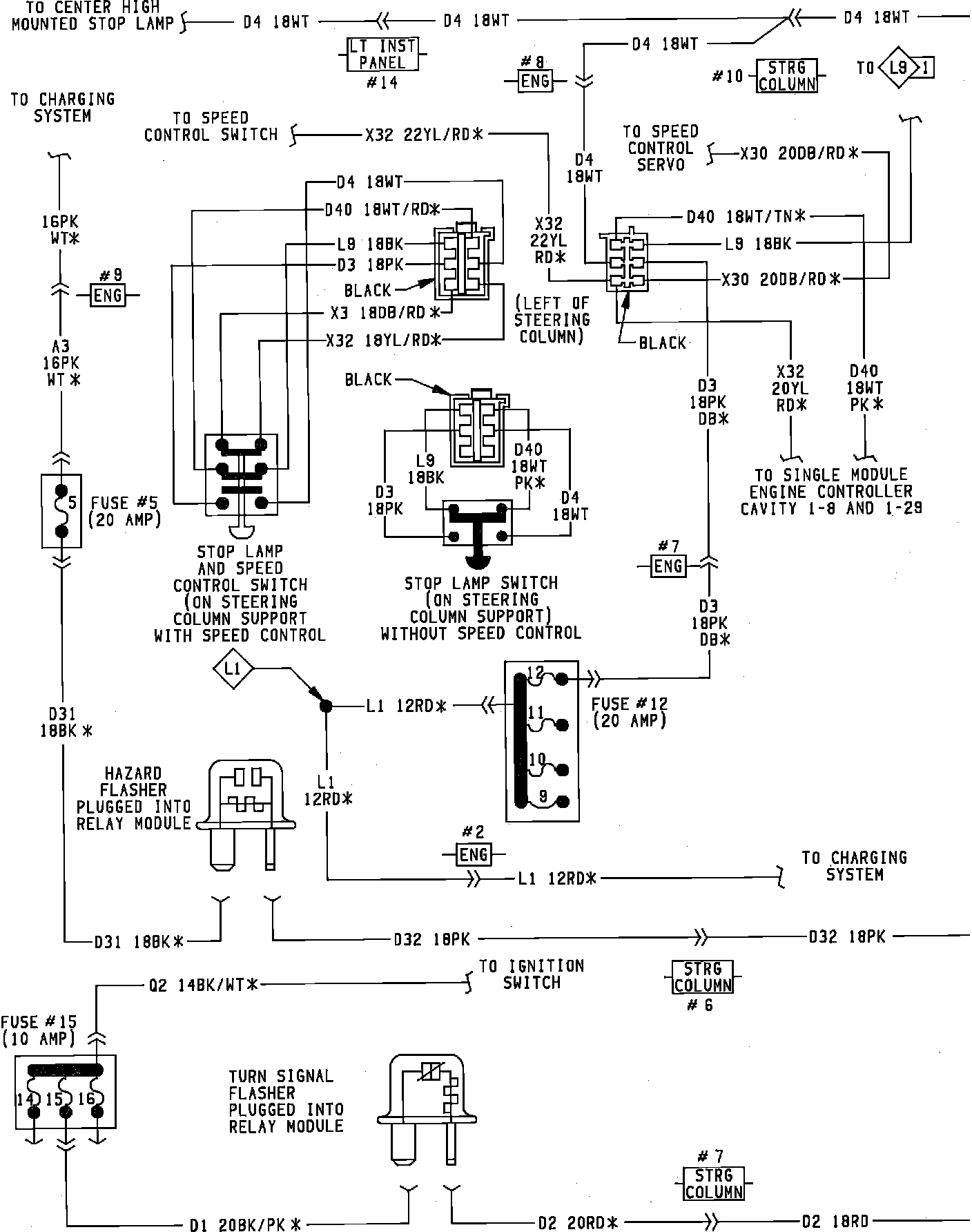

Hazard Flasher & Turn Flasher System Wiring Circuit:
