Sundance L4-153 2.5L SOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
>>
2 Door
2 Door

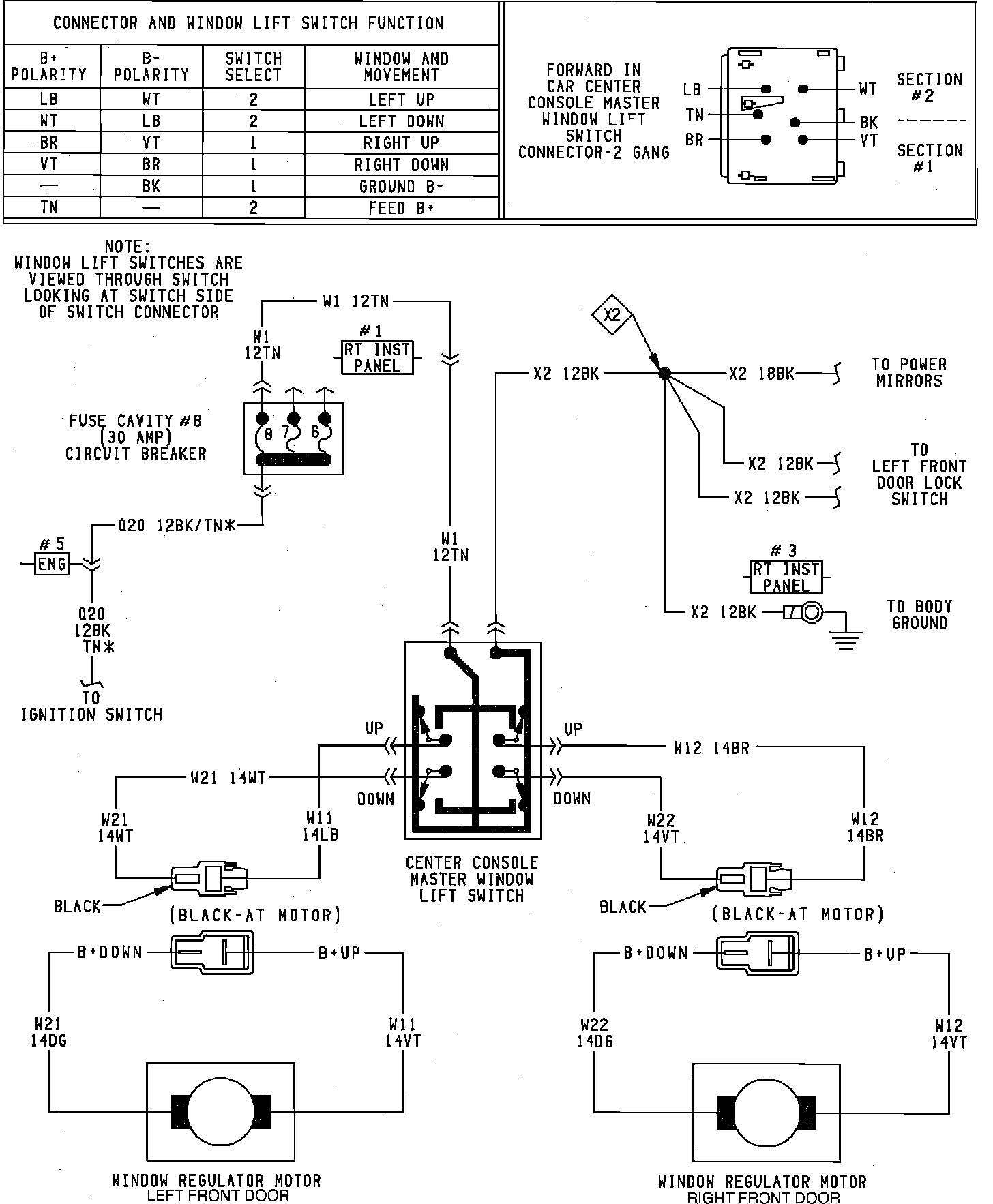

Power Window System Wiring Circuit. 2 Door:
