Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
>>
Except California/Canada
Except California/Canada

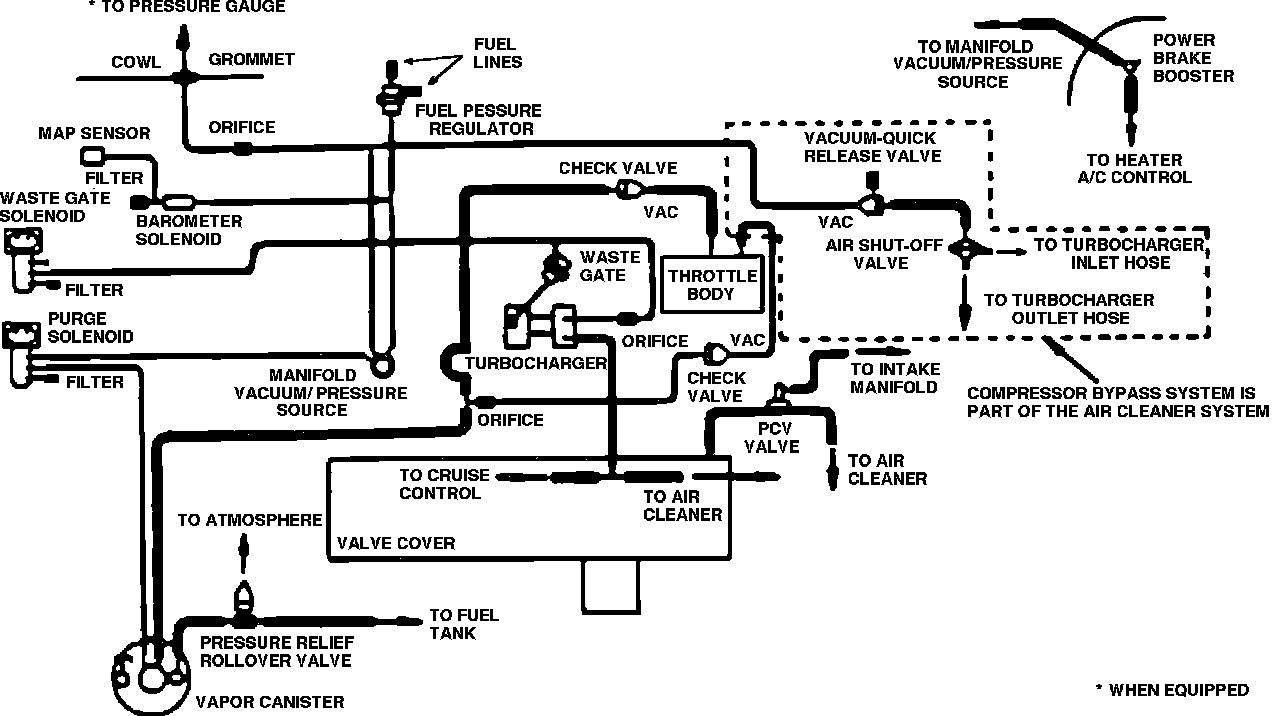

Vacuum Hose Routing Diagram:

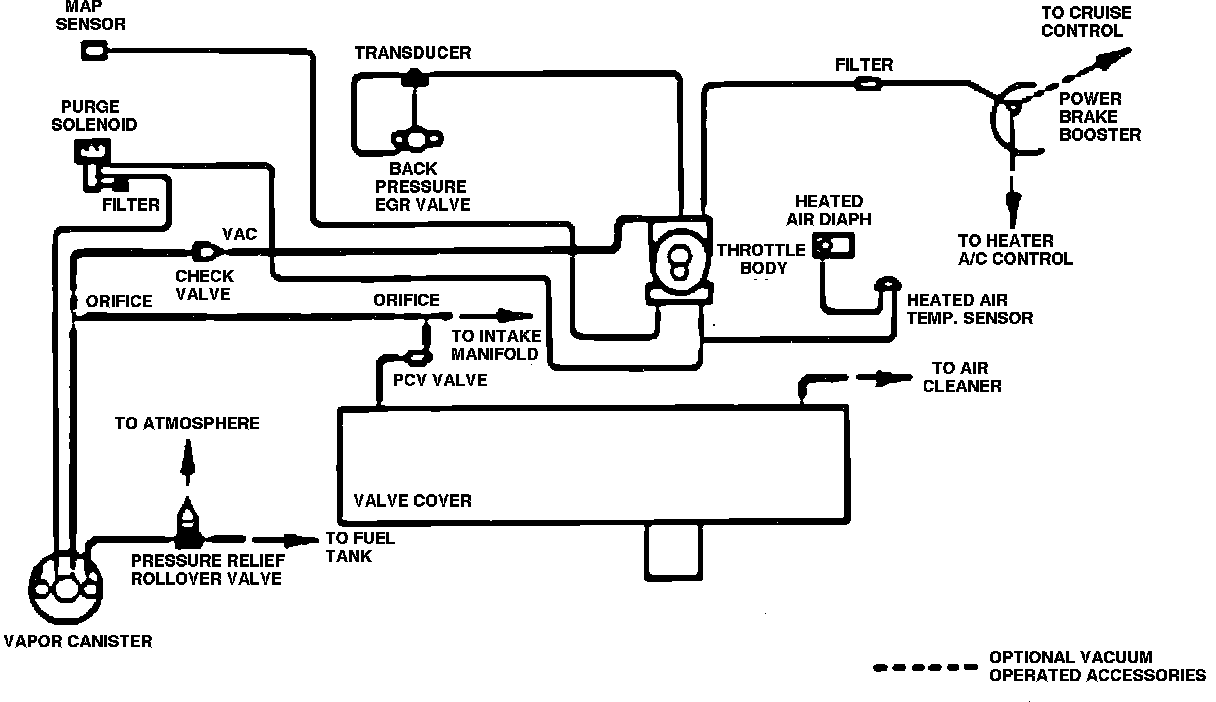

Vacuum Hose Routing Diagram:
