Left Side

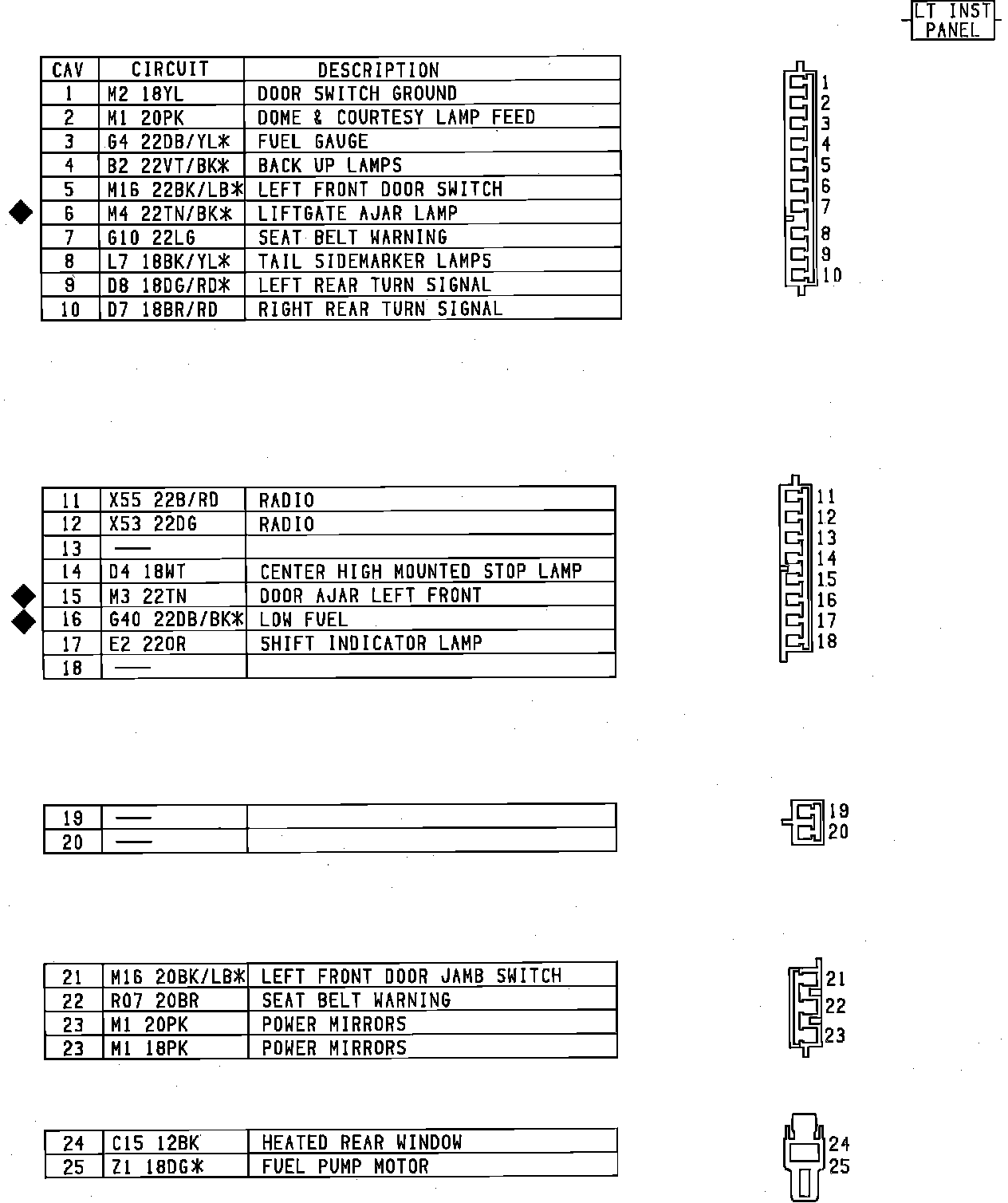

Body To Instrument Panel Connector. Left Side:

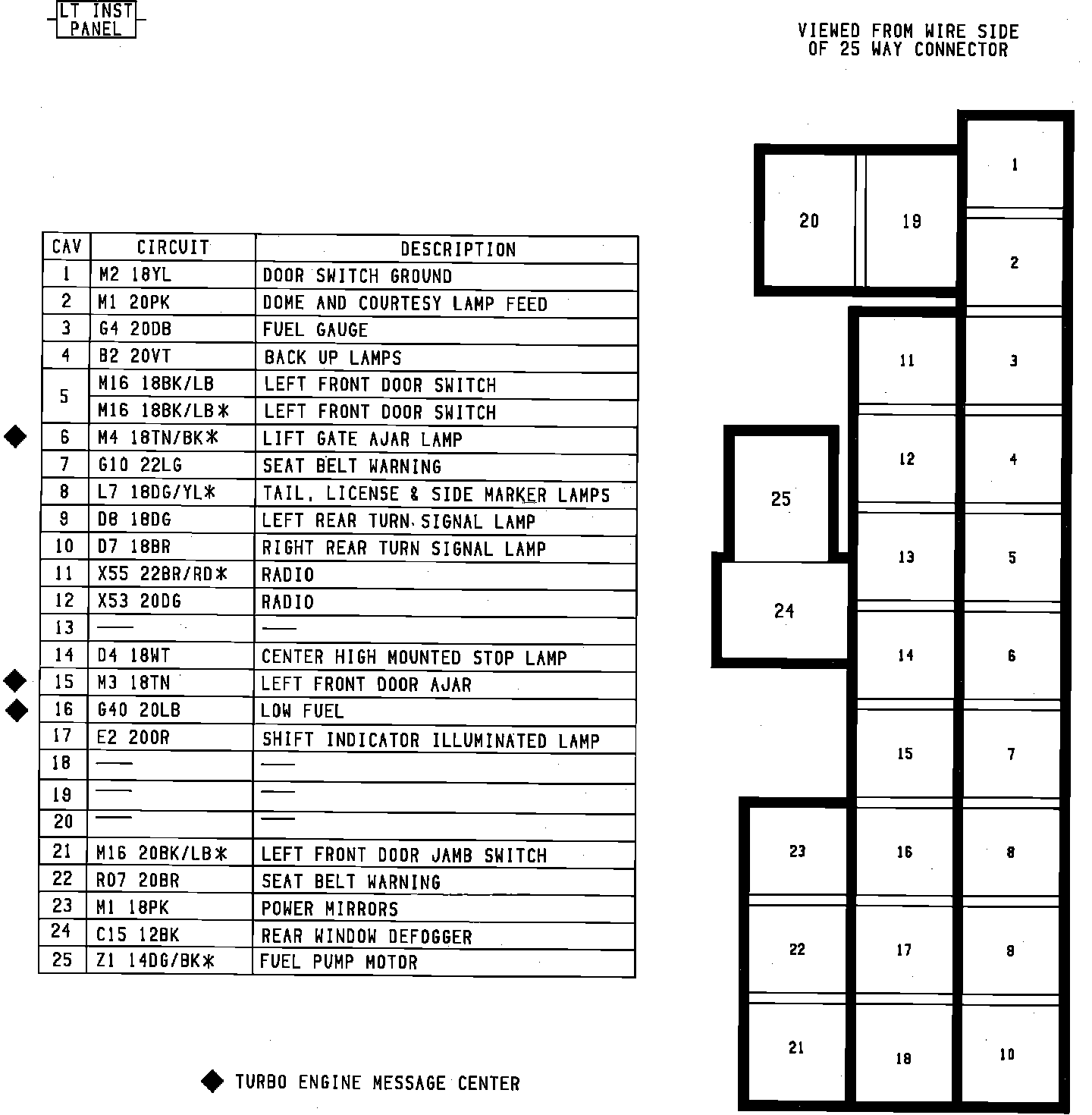

Body To Instrumnet Panel Connector. Left Side:
