Electrical Diagrams

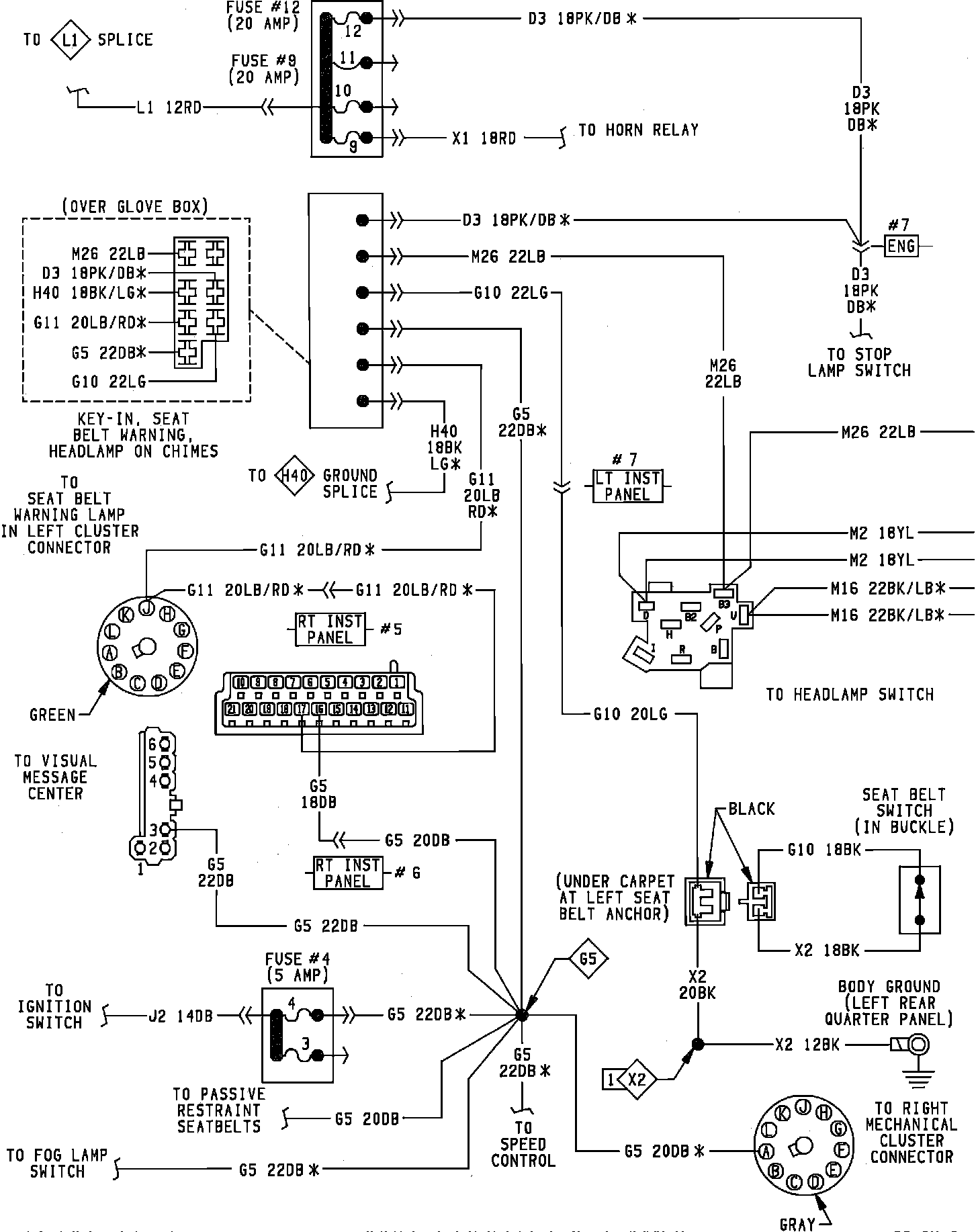

Courtesy Lamps & Seat Belt Warning System Wiring Circuit:



Courtesy Lamps & Seat Belt Warning System Wiring Circuit:

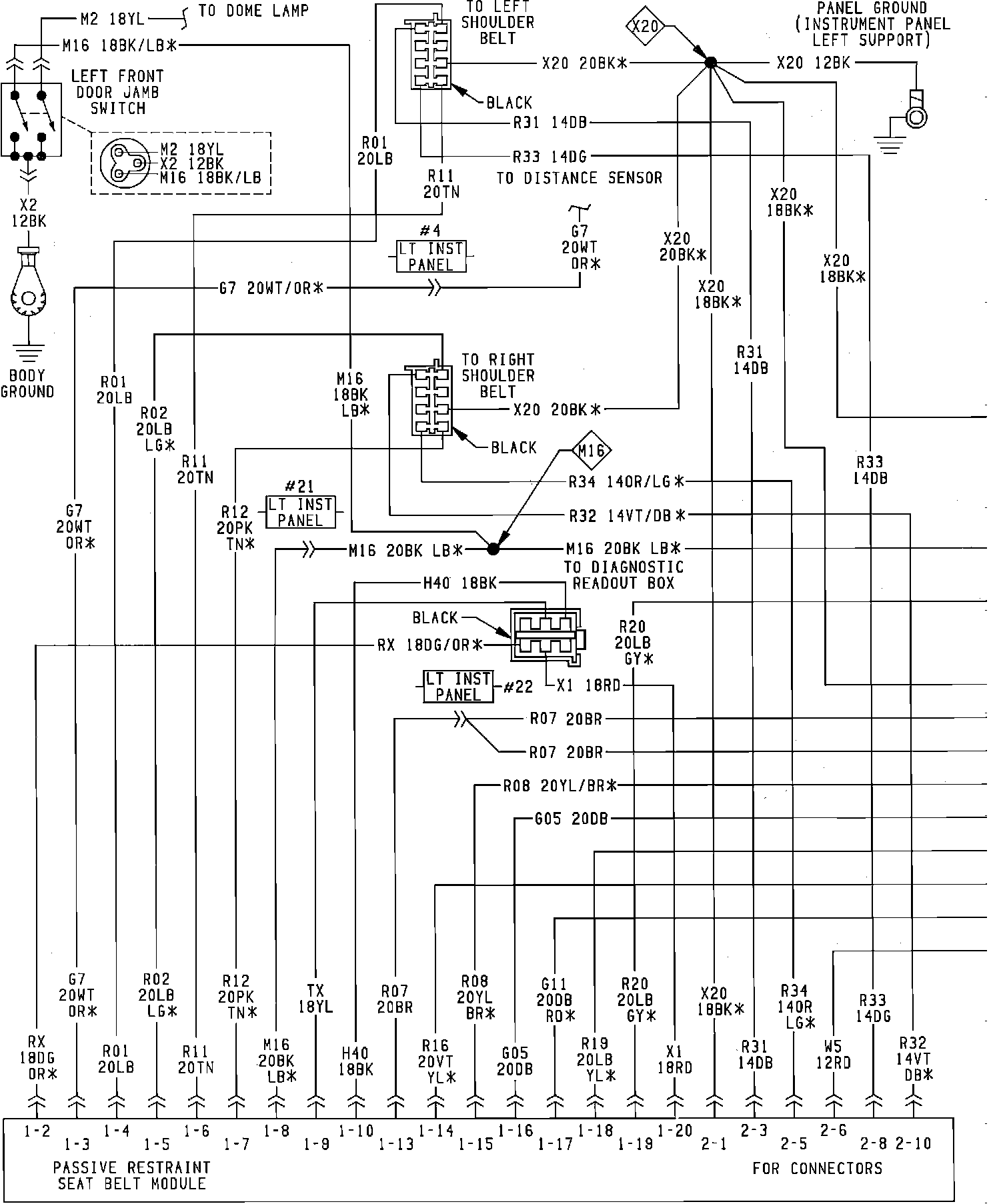

Passive Restraint System Wiring Circuit:



Passive Restraint System Wiring Circuit:
