Operation CHARM
: Car repair manuals for everyone.
Home
>>
Plymouth
>>
1989
>>
Sundance L4-153 2.5L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Connector Views
>>
Right Side
Right Side

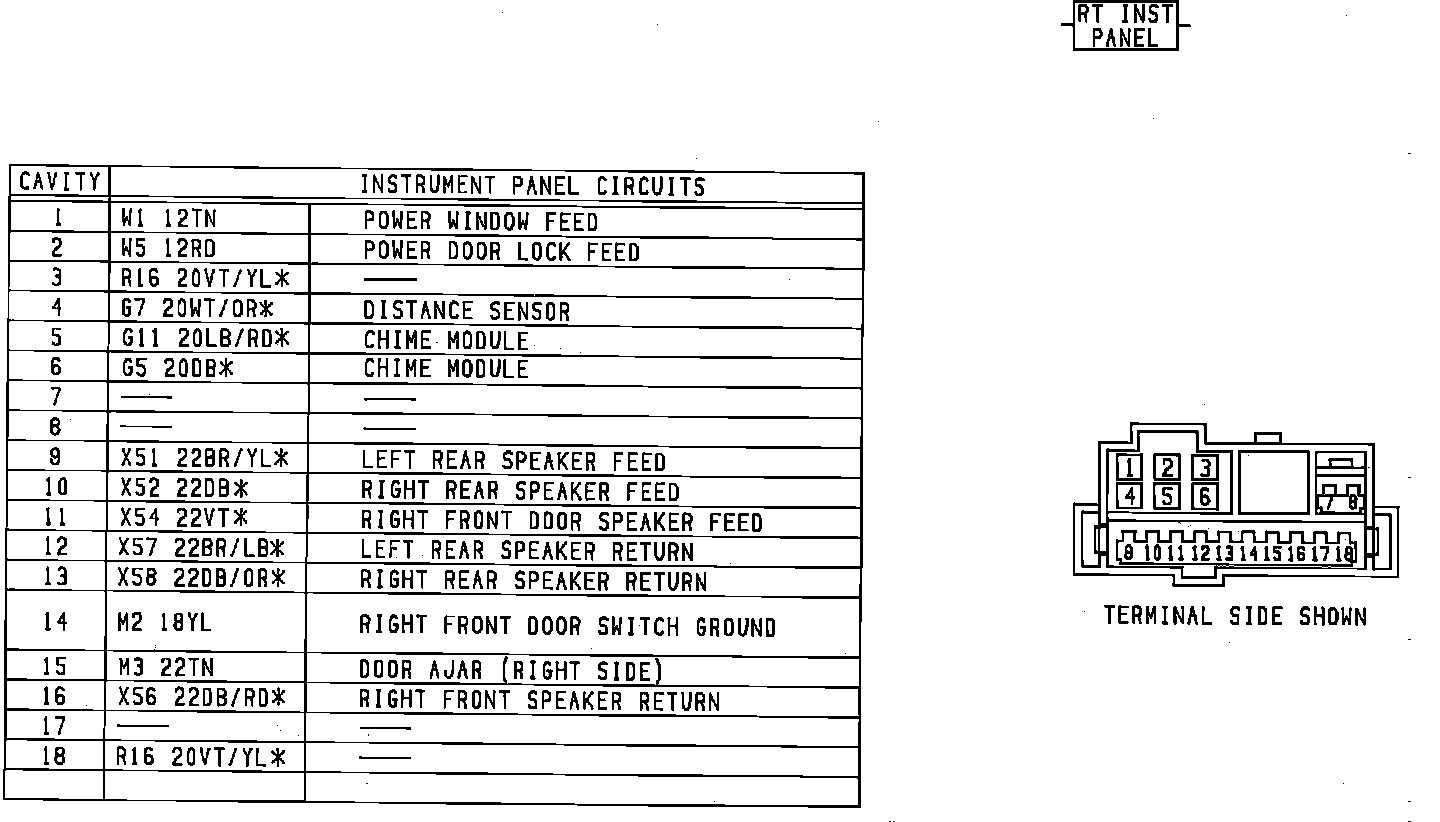

Body To Instrument Panel Connector. Right Side:

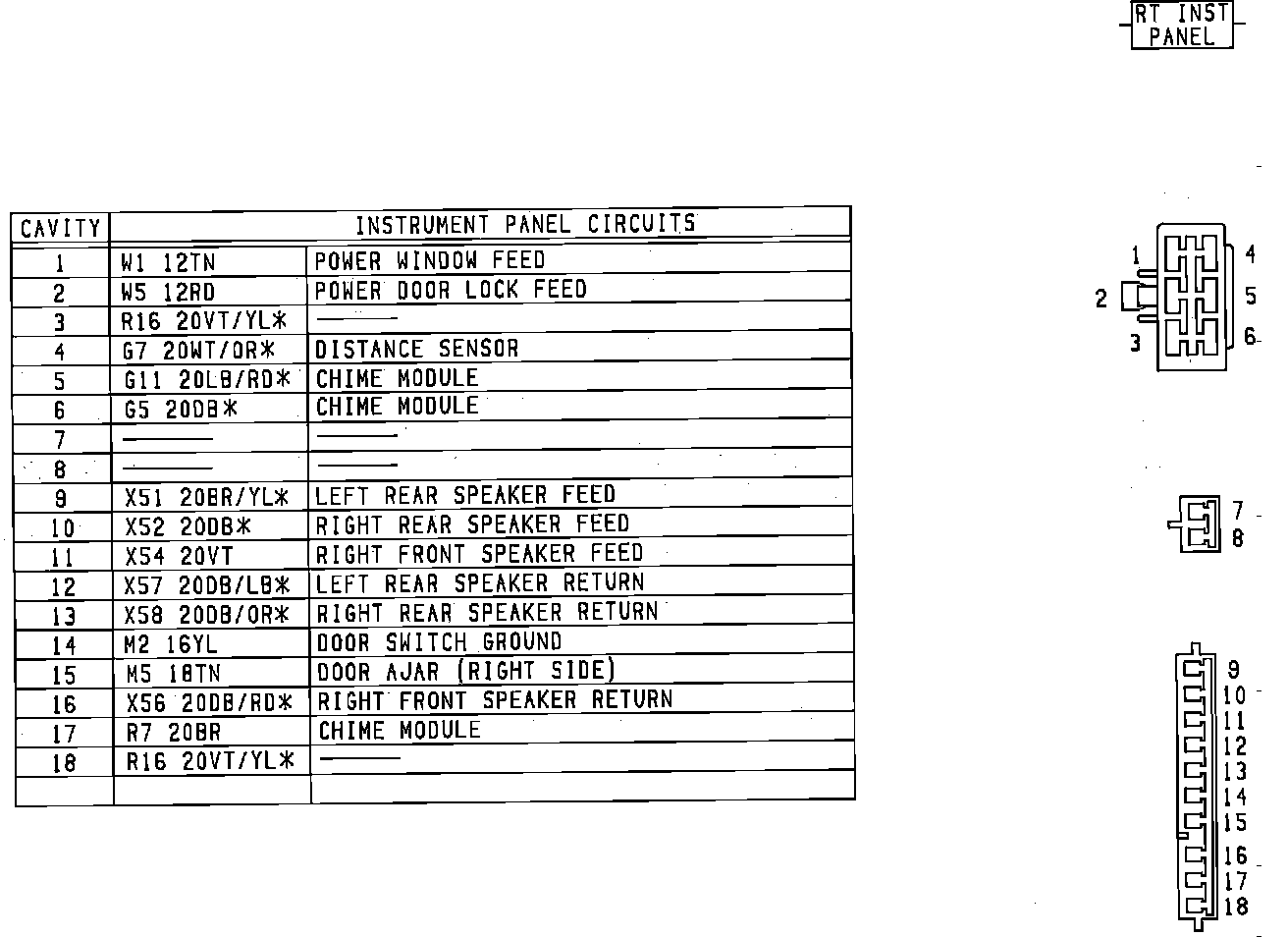

Body To Instrument Panel Connector. Right Side:
