Electrical Diagrams

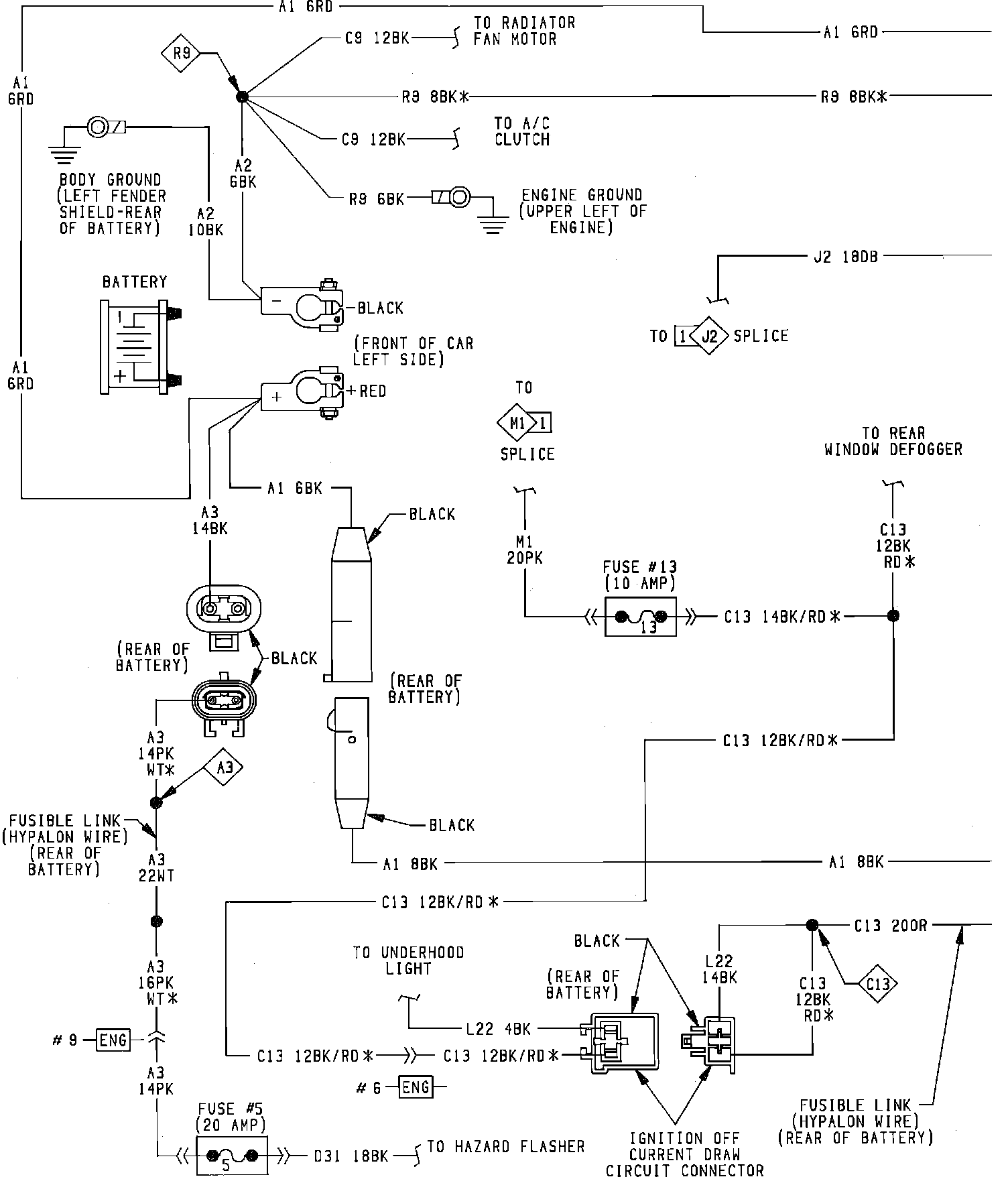

Charging, Ignition Switch & Starter Wiring Circuit:

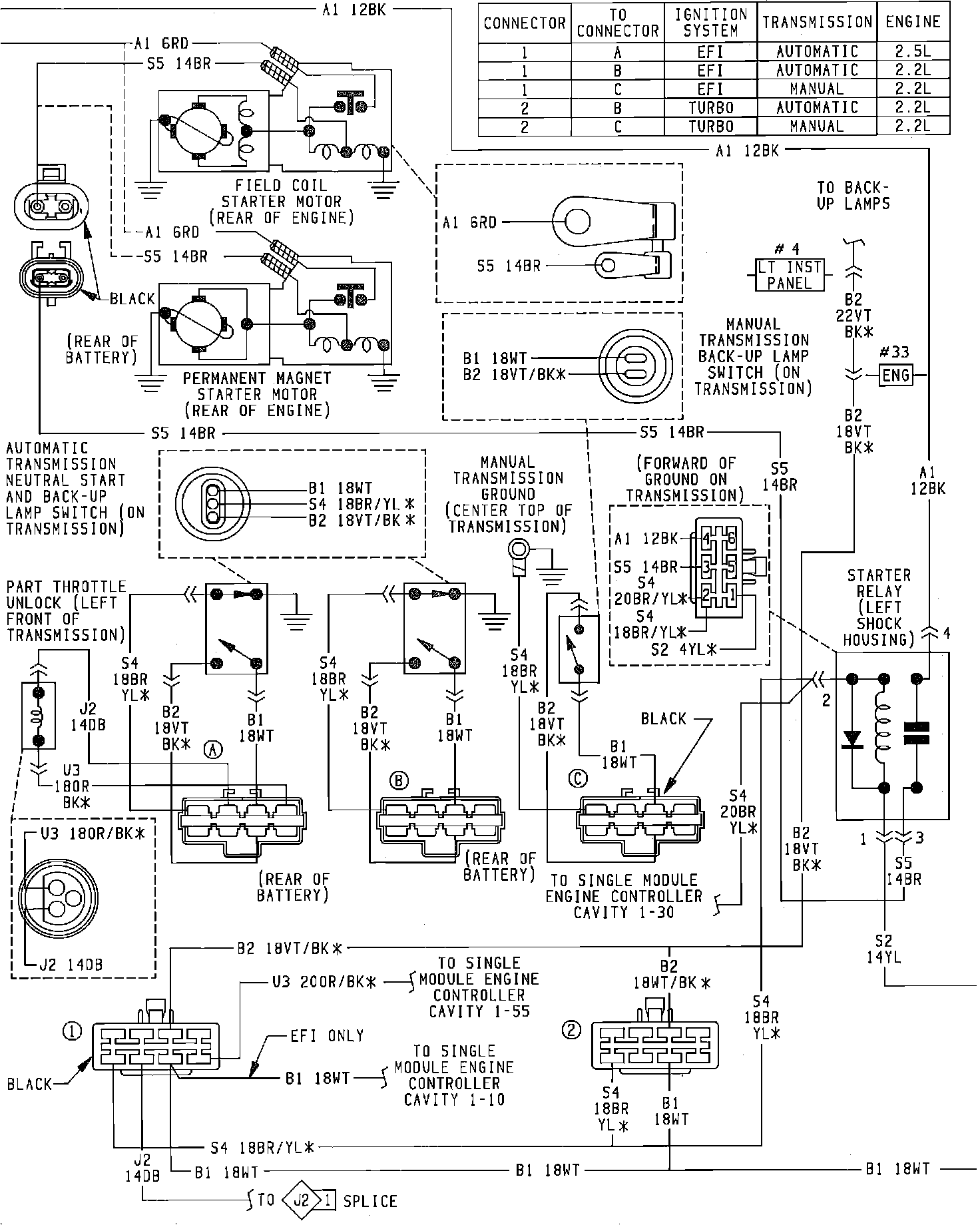

Charging, Ignition Switch & Starter Wiring Circuit:



Charging, Ignition Switch & Starter Wiring Circuit:



Charging, Ignition Switch & Starter Wiring Circuit:
