Radiator Cooling Fan Motor Relay
Radiator Cooling Fan Motor Relay

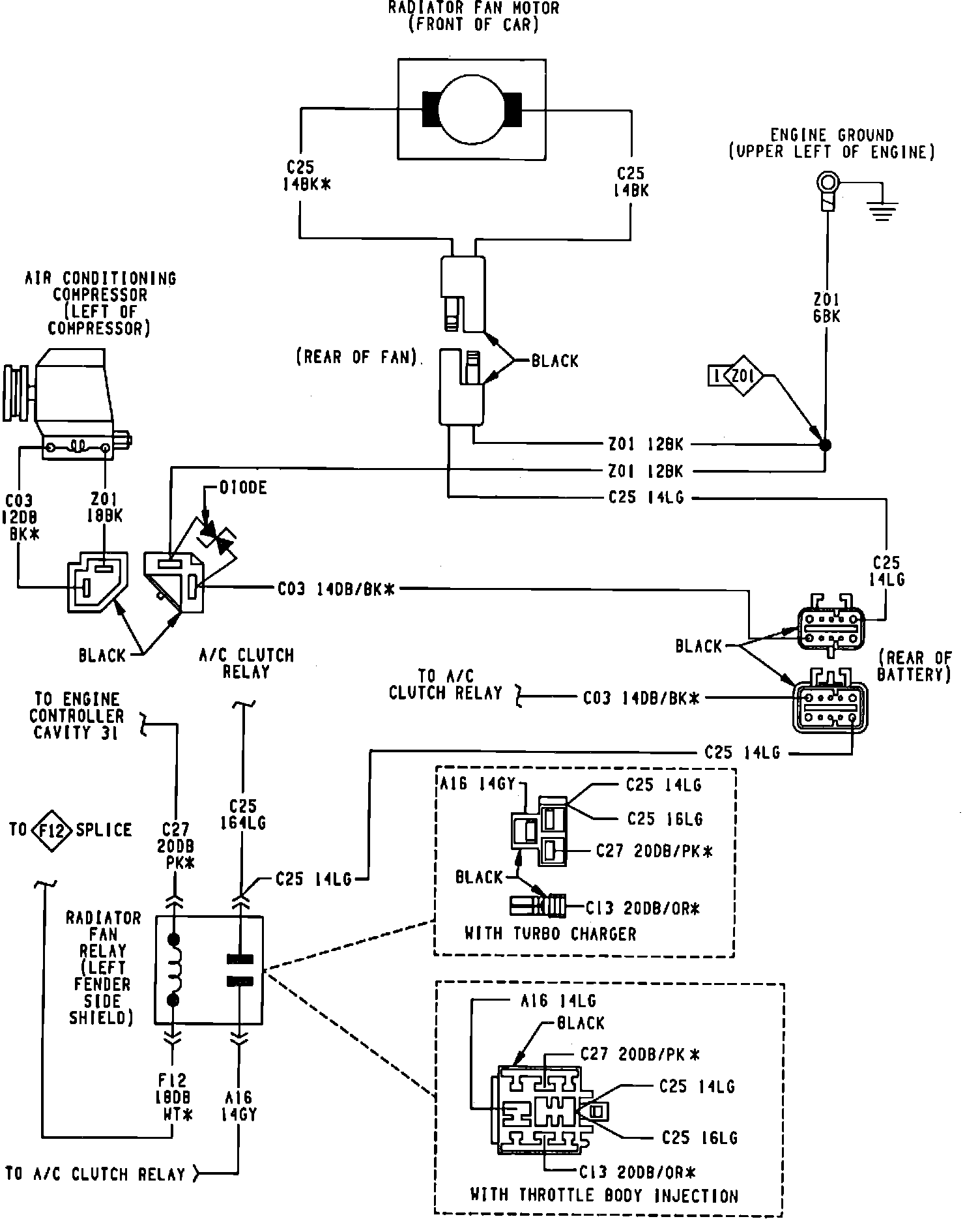

Fig. 21 Coolant Fan Relay Wiring Diagram w/Air Conditioning:
Cooling Fan System:
