Instrument Panel to Steering Column
Instrument Panel To Steering Column Wiring:

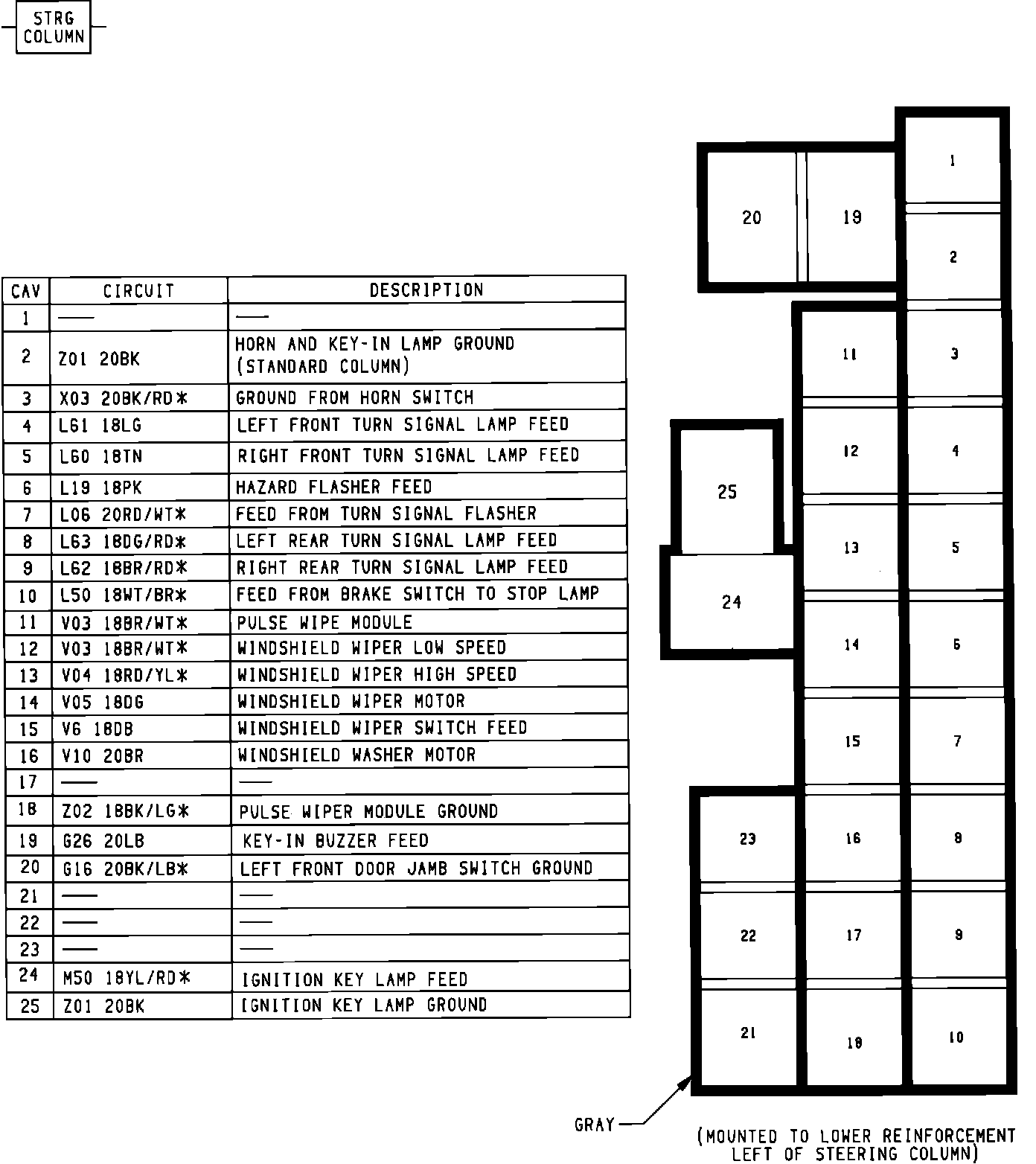

Instrument Panel To Steering Column Wiring Connectors:
