Bulkhead Connector
>>
Instrument Panel Side
Instrument Panel Side

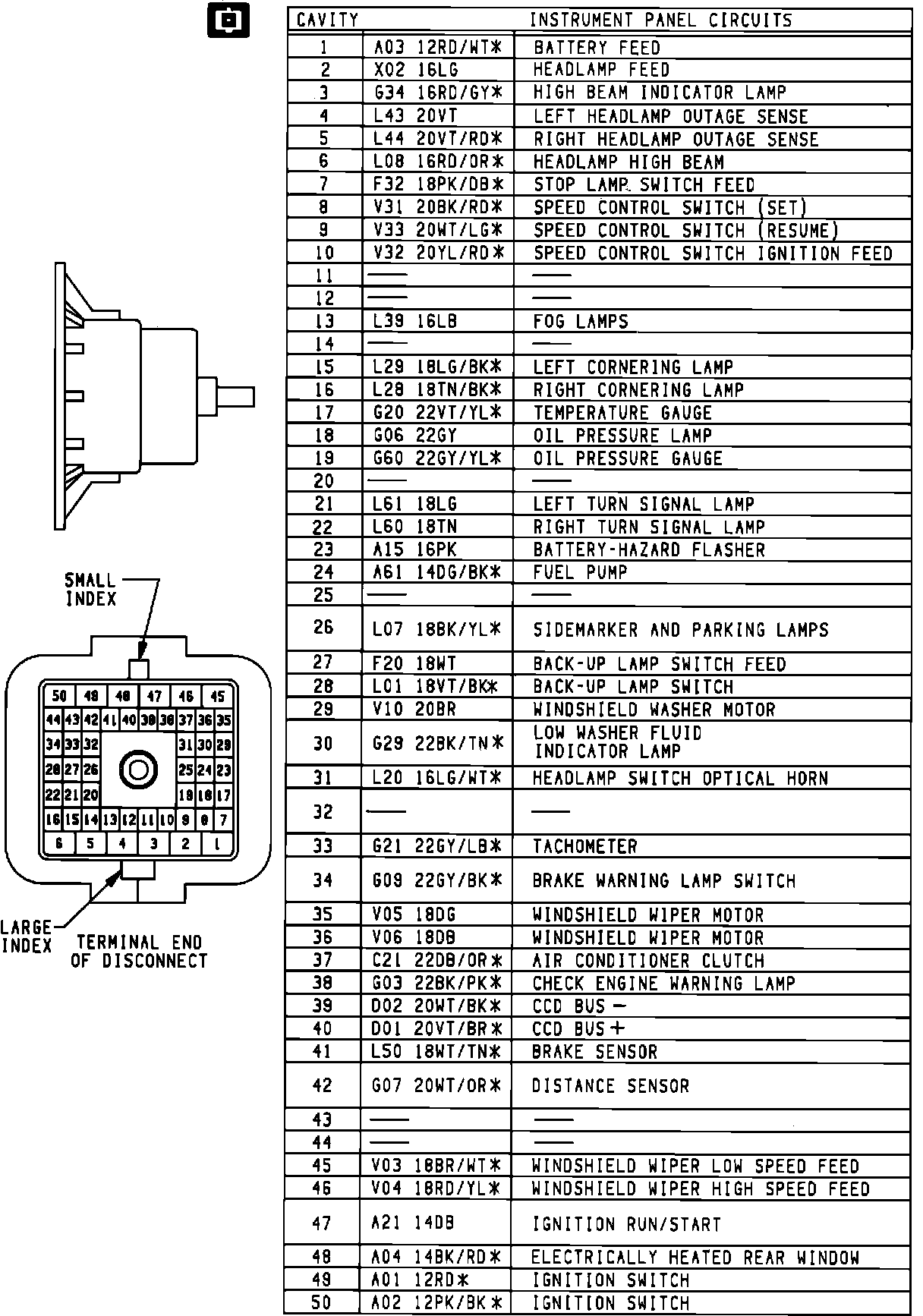

50-Way (In Car) Bulkhead Connector:
