Without Tilt Wheel

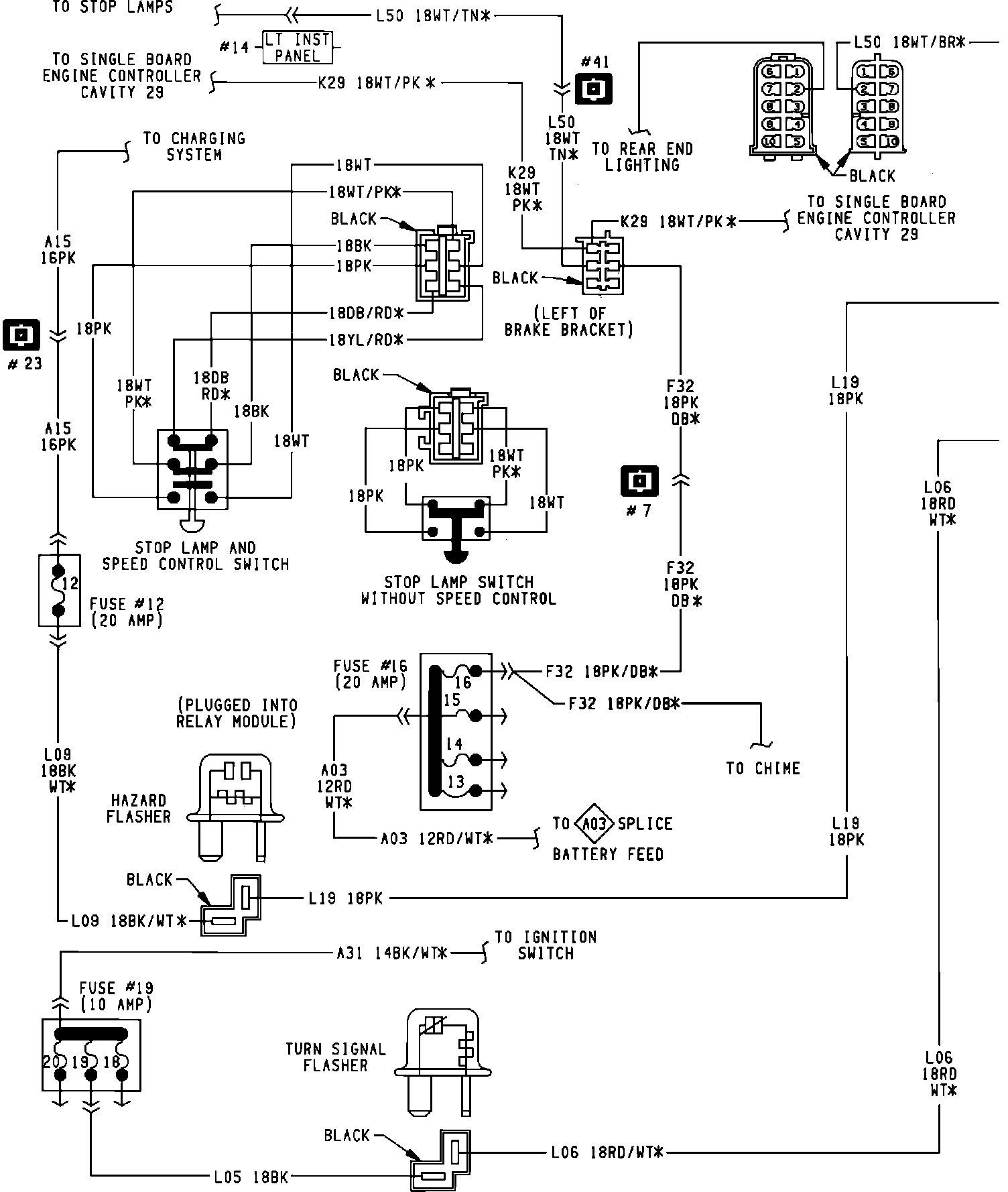

Turn/Stop & Hazard Flasher System Non-Tilt Steering Column - Part 1:

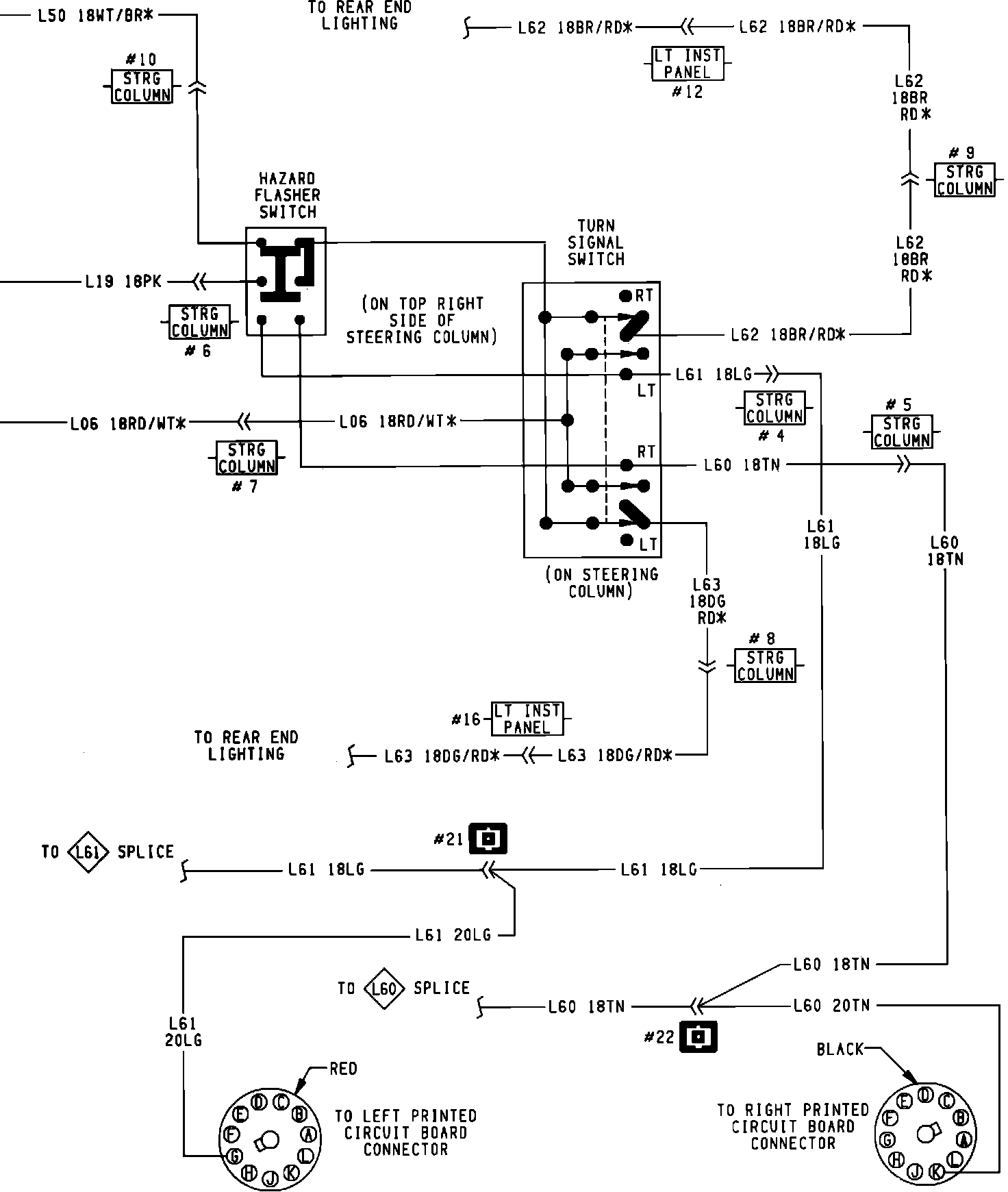

Turn/Stop & Hazard Flasher System Non-Tilt Steering Column - Part 2:
