Electrical Diagrams

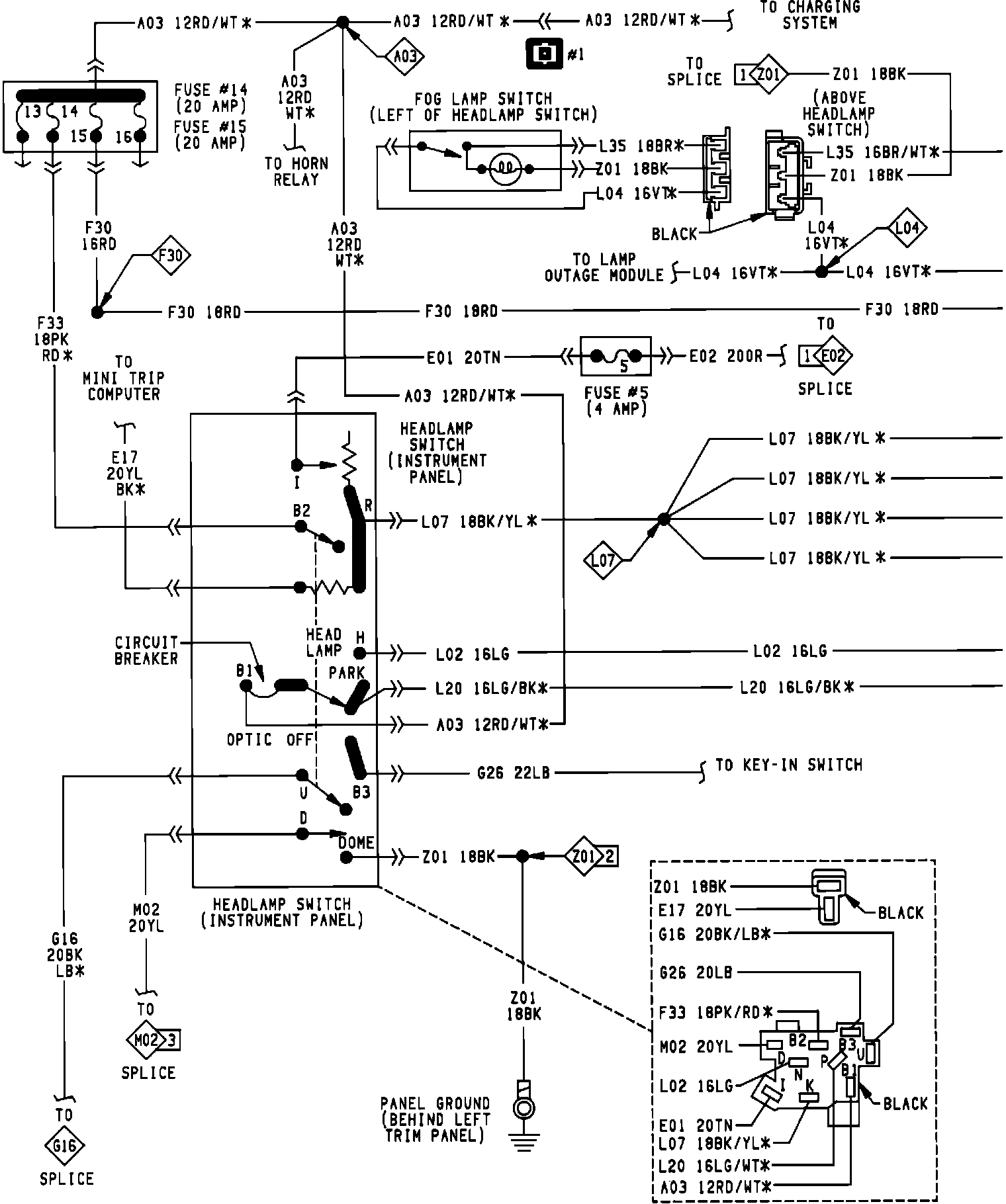

Headlamp & Parking Lamp System -- Part 1:

Headlamp & Parking Lamp System -- Part 2:
